Description

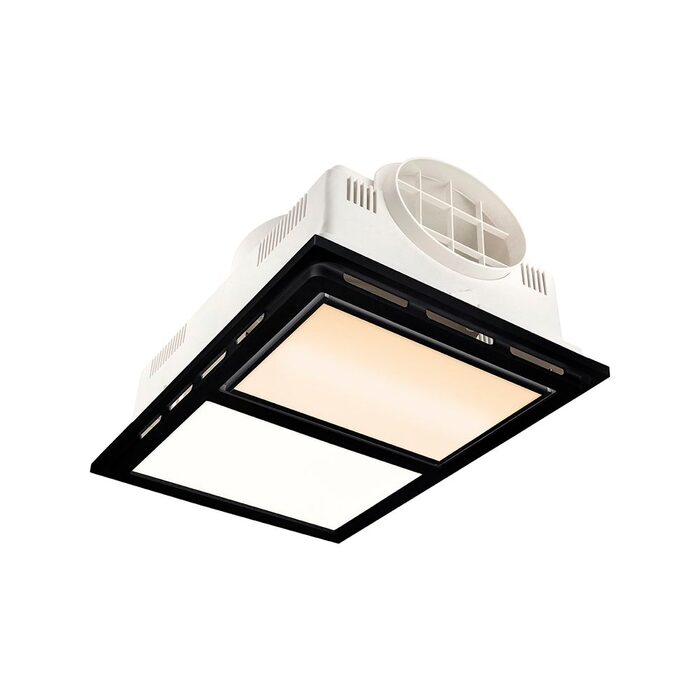

Its instant heat infrared lamp, powerful and quiet ball bearing motor with high lumen light provide a total bathroom solution.
Design Specifications
- High performance 1000W instant heat lamp to warm the body
- Powerful 55W long life ball bearing motor
- Extracts up to 500m3/hr to easily remove moisture and stream
- Super bright 15W CCT LED light sources with 1200 lumen maximum output
- Easily change colour temperature (CCT) from warm white 3000K, cool white 4200K to bright daylight 6000K
- 150mm side duct outlet
Specifications
- Input Voltage: 240V / 50Hz
- Total Wattage: 1100W
- Motor Wattage: 55W
- Motor Type: Longlife ball bearing
- Air Extraction: up to 500m³/hr (139l/sec)
- Heat Wattage: 1000W max
- Heat Type: Instant heat Infrared tube
- Light Wattage: 15W max
- Light adjustable: Change colour temperature from 3000K, 4200K or 6000K
- Light Lumens 1000lm (3000K); 1100lm (4200K); 1200lm (6000K)
- Control BrilliantSmart App, Wall control
- Outlet Diameter: suits ø150mm ducting
- Ingress protection: IPX2
- Thermal Safety Switch: Auto cut-off / Fan on (50°C)
- Recommended ,minimum installation depth to roof: 300mm

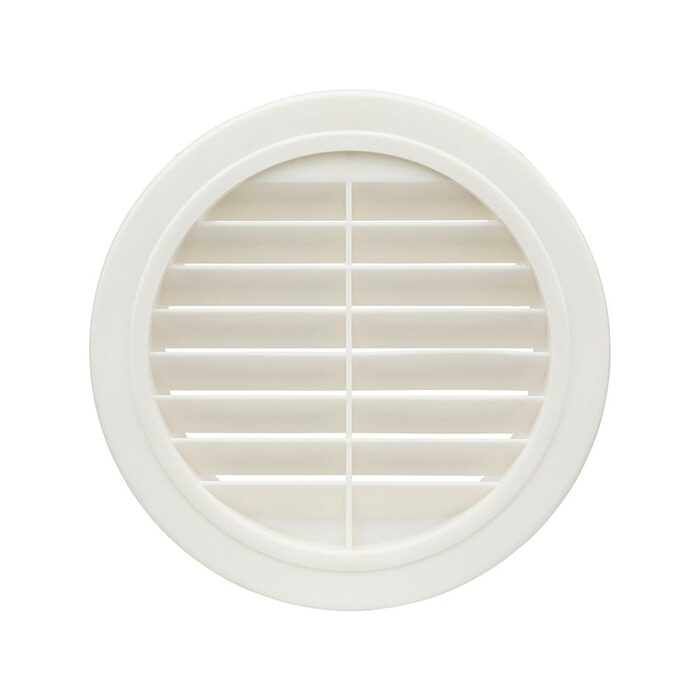

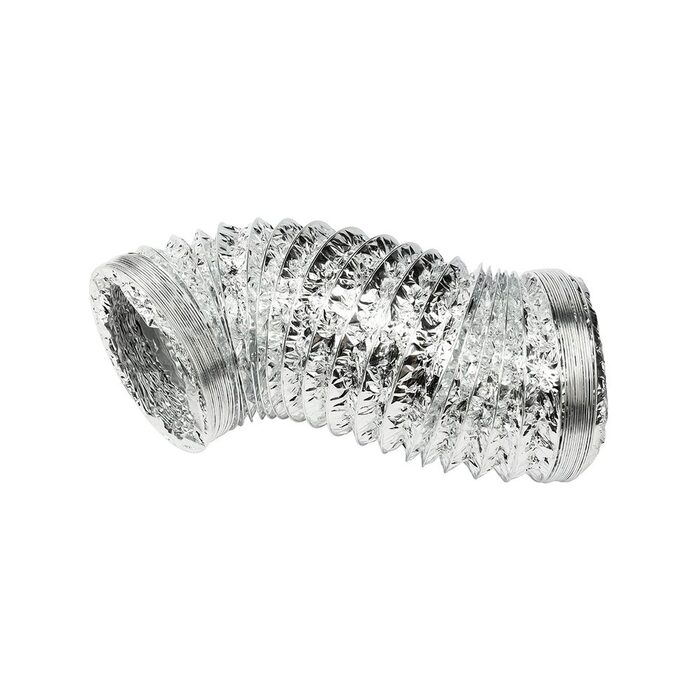

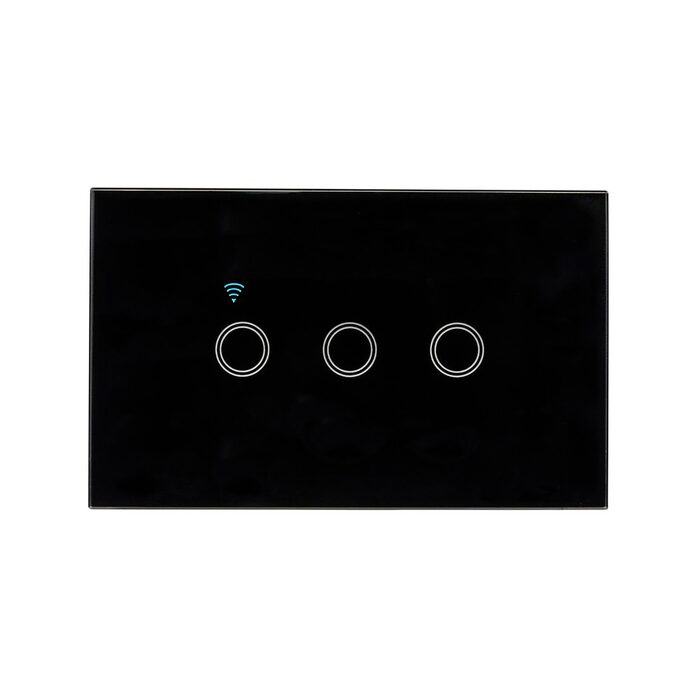

- Includes Accessories: 3-Gang wall control, 1.5m flexible duct, 2 x duct clamps, exterior grille
Dimensions
- Length: 500mm
- Width: 350mm
- Depth: 210mm
- Cutout: 475mm x 325mm
NOTE
This unit is fitted with a thermostat switch that will automatically turn on the fan if the internal temperature exceeds 50C.
Includes wall switch, 1.5m flexible ducting and exterior grille. Available in matt white and matt black.
Compatible with BrilliantSmart devices via automation & IFTTT.
Create schedules, eg preheat your bathroom on those cold mornings before your shower.
Leave the exhaust fan running so your bathroom is clean and dry and switch off at 9 am.
Click to view technical specification:
