Usually leave our warehouse within 5-7 business days
Description

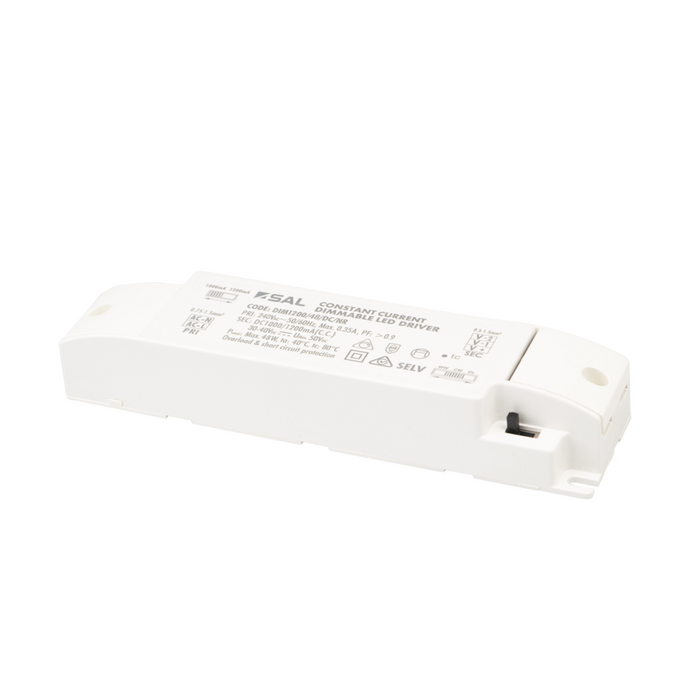

Australian approved dimmable constant current LED driver with selectable Power and CCT
Application
- The perfect choice for constant current electronic lighting circuits
Specifications
- Input Voltage: 240V
- Wattage: 48W
- Output Current: 1200mA
- Dimmable: Yes (Trailing Edge)
- IP Rating: IP20
- Compact design, SELV, electrical class II, EMC compliant
- Safe no load, overload, short circuit protection
- Onboard selectable output current (1000/1200mA)
- Onboard selectable colour temperature, suitable for SAL S9784TC range - S9784/612 TC/DP
- Dimmable with a trailing edge dimmer, delivering flicker CONTROLLED driver performance, recommended SAL trailing edge dimmers SDD350UM, SDD400U, SDA450U, SDD350BT, SDA450U/LED
- Suitable for SAL S9784TC/DP panel range
Dimensions
- Width: 45mm
- Length: 180mm
- Height: 30mm
Click to view technical specification:
Application
- The perfect choice for constant current electronic lighting circuits
Specifications
- Input Voltage: 240V
- Wattage: 48W
- Output Current: 1200mA
- Dimmable: Yes (Trailing Edge)
- IP Rating: IP20
- Compact design, SELV, electrical class II, EMC compliant
- Safe no load, overload, short circuit protection
- Onboard selectable output current (1000/1200mA)
- Onboard selectable colour temperature, suitable for SAL S9784TC range - S9784/612 TC/DP
- Dimmable with a trailing edge dimmer, delivering flicker CONTROLLED driver performance, recommended SAL trailing edge dimmers SDD350UM, SDD400U, SDA450U, SDD350BT, SDA450U/LED
- Suitable for SAL S9784TC/DP panel range
Dimensions
- Width: 45mm
- Length: 180mm
- Height: 30mm
Click to view technical specification:
