Description

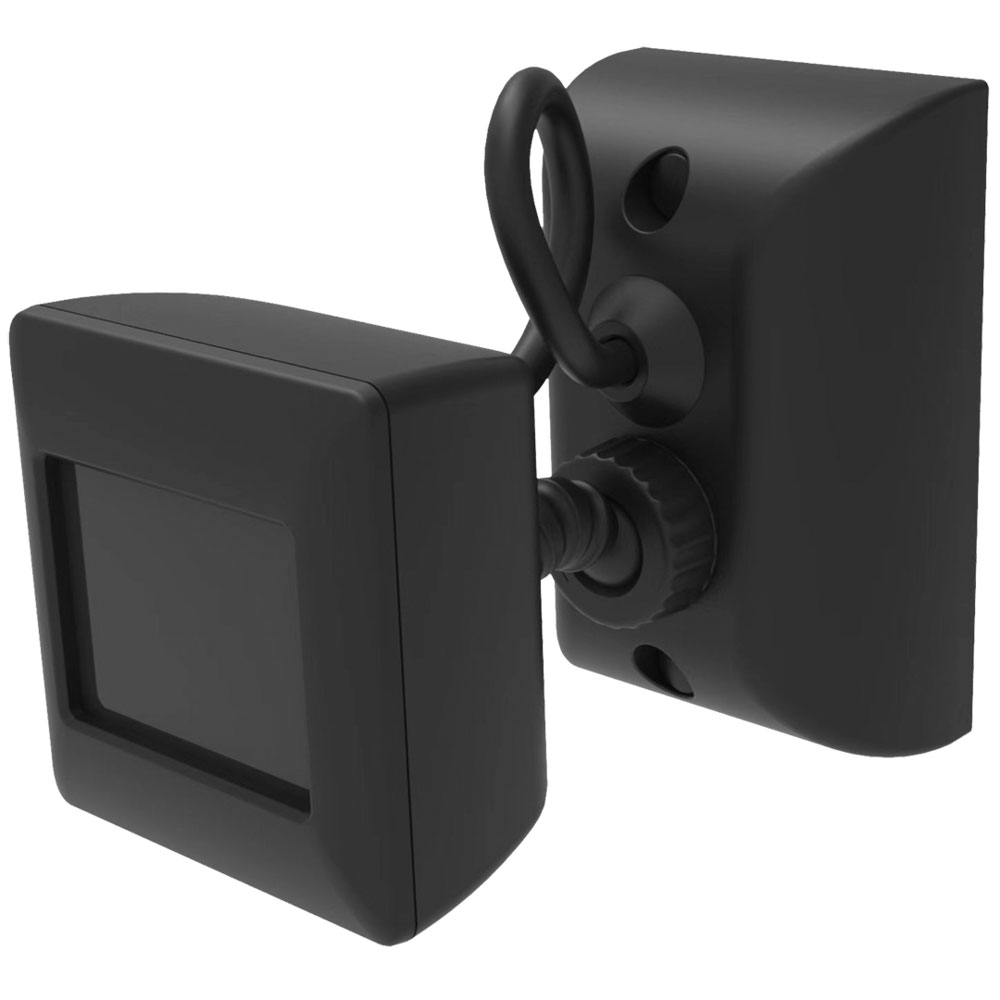

PIXIE MASTER DEVICE - SMART HOME PIR Sensor with PE cell and override functions - surface mount IP66
Application
- Versatile residential and commercial sensor applications with Smart function control
Specifications
- Voltage: 240V
- IP66
- Sensitivity, hold time and brightness threshold adjustment can be set via physical dials, and via the PIXIE PLUS App
- Maximum loads (LED) 500W, (Halogen) 2000W
- Additional PE cell mode

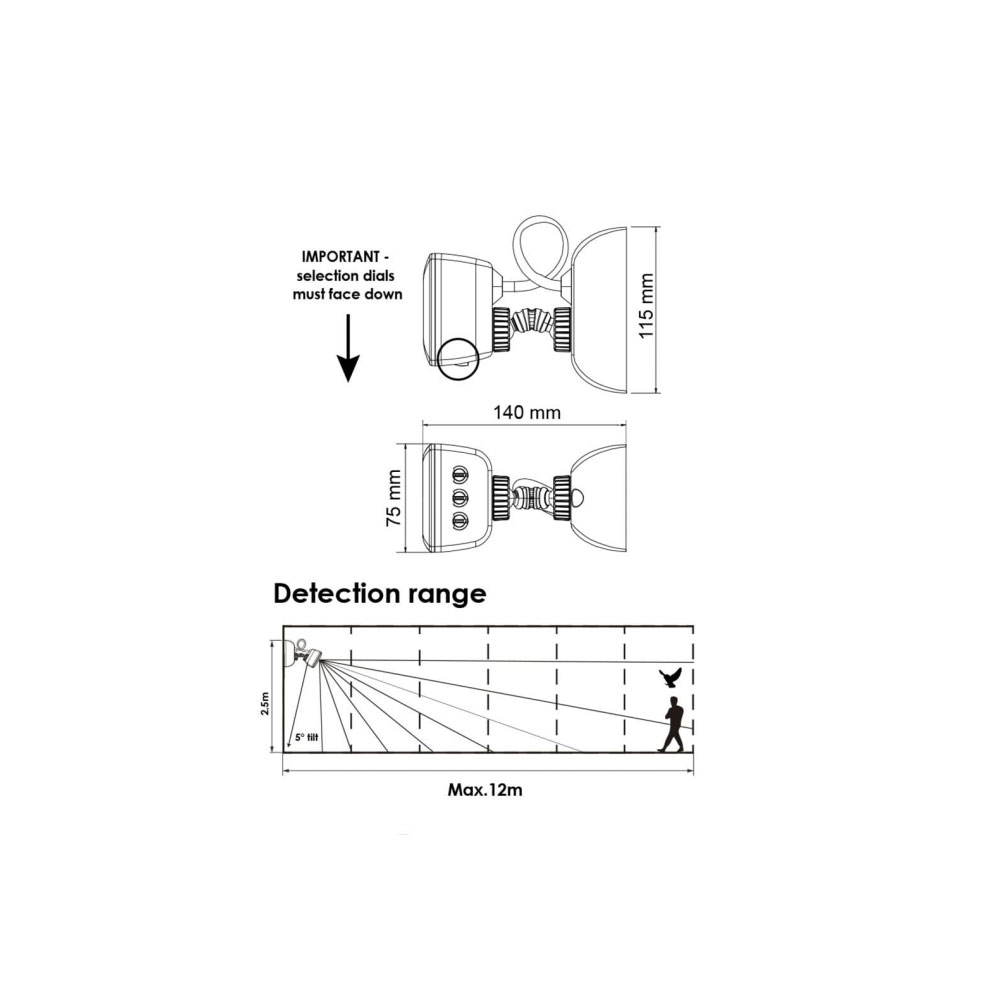

- Detection angle 110° up to 12 metres at a height of 1.8 - 2.5m (Black model detection range 10 metres).
- Simply use the App or PIXIE secondary device to switch among 4 working modes: Motion sensor mode, Override ON, Override OFF, and PE cell mode
- 3 wire design for interior or exterior use in a choice of WHITE or BLACK
Dimensions
- Backplate: 115mmmm
- Front: 75mm
- Projection: 140mm
Click to view technical specification:
Application
- Versatile residential and commercial sensor applications with Smart function control
Specifications
- Voltage: 240V
- IP66
- Sensitivity, hold time and brightness threshold adjustment can be set via physical dials, and via the PIXIE PLUS App
- Maximum loads (LED) 500W, (Halogen) 2000W
- Additional PE cell mode
- Detection angle 110° up to 12 metres at a height of 1.8 - 2.5m (Black model detection range 10 metres).
- Simply use the App or PIXIE secondary device to switch among 4 working modes: Motion sensor mode, Override ON, Override OFF, and PE cell mode
- 3 wire design for interior or exterior use in a choice of WHITE or BLACK
Dimensions
- Backplate: 115mmmm
- Front: 75mm
- Projection: 140mm
Click to view technical specification:
