Description

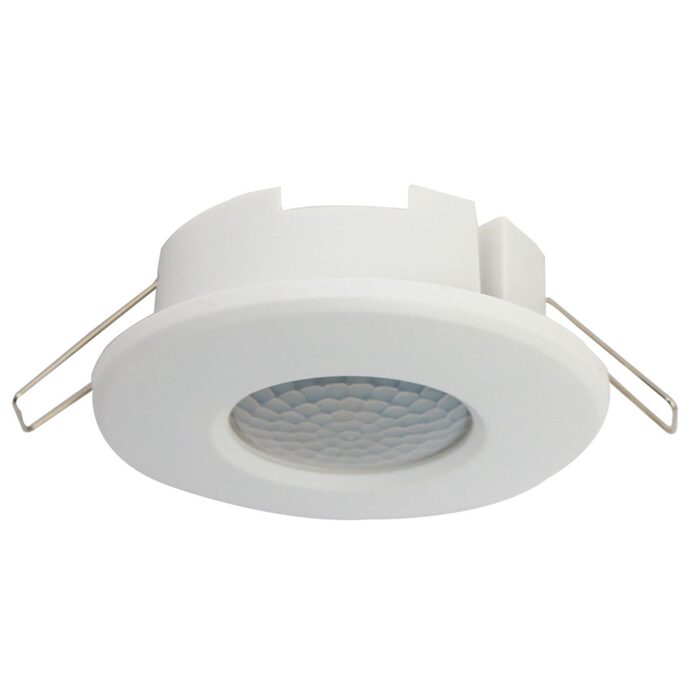

PIXIE MASTER DEVICE - SMART HOME ceiling mount PIR Sensor, complete with recessed and surface mount functions IP20
Application
- Versatile residential and commercial sensor applications with Smart function control
Specifications
- Voltage: 240V
- IP rating: IP20
- Hold time and brightness threshold adjustment can be set via physical dials, and in the App
- Maximum loads (LED) 400W, (Halogen) 800W
- Designed for surface mount or recessed mount applications
- Detection angle 360° up to 8 metres in diameter at a height of 4 metres
- Simply use the App or PIXIE secondary device to switch among 3 working modes: Motion sensor mode, Override ON, and Override OFF
- 3 wire design

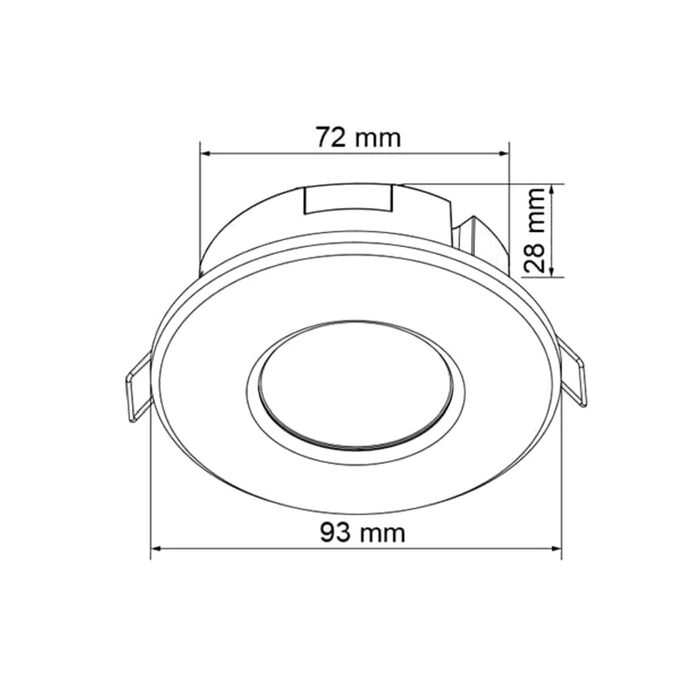

Dimensions
- Diameter: 93mm
- Height: 28mm
- Cutout: 72mm
Click to view technical specification:
Application
- Versatile residential and commercial sensor applications with Smart function control
Specifications
- Voltage: 240V
- IP rating: IP20
- Hold time and brightness threshold adjustment can be set via physical dials, and in the App
- Maximum loads (LED) 400W, (Halogen) 800W
- Designed for surface mount or recessed mount applications
- Detection angle 360° up to 8 metres in diameter at a height of 4 metres
- Simply use the App or PIXIE secondary device to switch among 3 working modes: Motion sensor mode, Override ON, and Override OFF
- 3 wire design
Dimensions
- Diameter: 93mm
- Height: 28mm
- Cutout: 72mm
Click to view technical specification:
