Description
The Havit HV96631-12V100W is a 100W 12V DC, IP66-rated, dimmable LED driver designed for indoor and outdoor applications. It features 2-in-1 dimming (DALI 2 + Push Dim), a 5%-100% range, and is adjustable via NFC app.
It supports a recommended max load of 80W, features flicker-free operation, and includes a flex and plug.
Specifications
- Input Voltage: 100v - 240v AC
- Output Voltage: 12v DC Constant Voltage
- Output power: 100W
- Recommended Max load: 80w
- Recommended Mini Load: 10w
- IP Rating: IP66
- Flex and plug included
- Protection Class: 1 (Earth Required)
- Protection: Short Circuit, Overload, Over Temperature
- Dimmable: Yes (1%-100%)
- Dimming Methods: DALI or Push Dim
- Adjustable settings using NFC APP
- Fixture Colour: Anodised Grey
- Material: Aluminium
- Warranty: 3 Years Replacement*

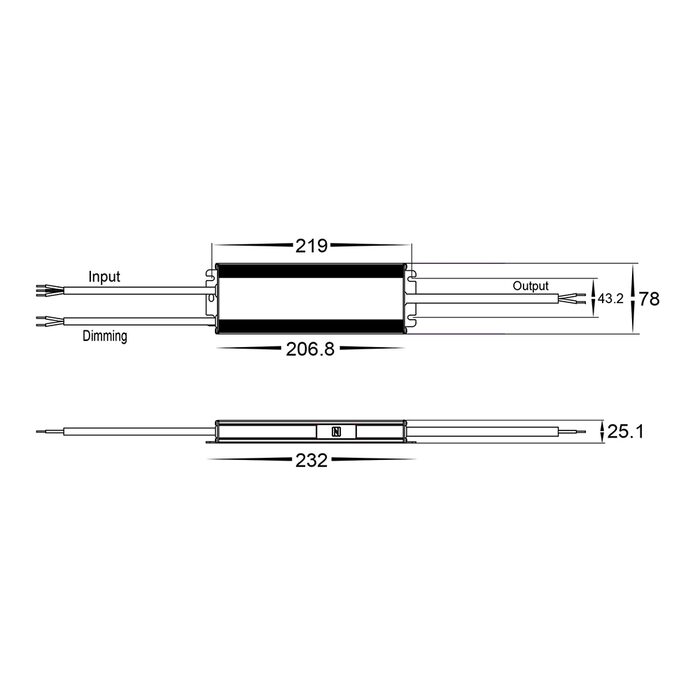

Dimensions
- Length: 232mm
- Width: 78mm
- Height: 25.1mm
