Usually leave our warehouse within 5-7 business days
Description
Recessed IP65 LED wall luminaire
Application
- A decorative commercial exterior or interior solution
Design Specifications
- Die-cast aluminium body and stainless steel face cover
- Opal polycarbonate diffuser
- High efficiency SMD LED chips with integral non-dimmable LED driver
- IP68 PVC cable gland
- ABS installation canister included
Specifications
- Input Voltage: 240V
- Wattage: 7W
- Colour temperature: 4000K (Cool White)
- Lumens: 80 Lumens
- CRI: >80
- Dimmable: No
- IP rating: IP65
- Die-cast aluminium body and stainless steel face cover
- Opal polycarbonate diffuser
- High efficiency SMD LED chips
- Built in non-dimmable LED driver
- Silicone gasket
- IP68 PVC cable gland
- Stainless steel allen screws
- ABS installation canister included

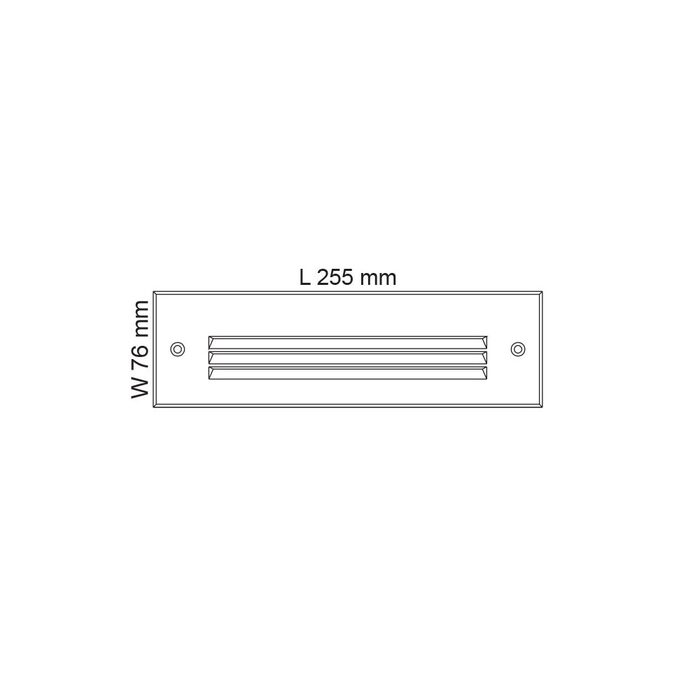

Dimensions
- Length: 255mm
- Width: 76mm

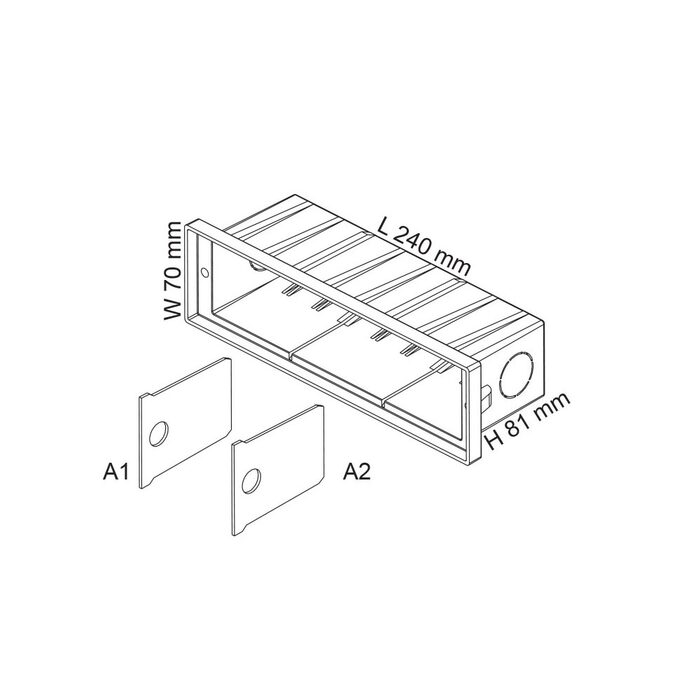

CANISTER INSTALLATION INSTRUCTIONS
- A1 & A2 are the support plates used during the construction installation process to prevent deformation of the installation canister
- Slot in A1 & A2 plates during construction
- Please remove the support plates (A1 & A2) before final installation
Click to view technical specification:
Application
- A decorative commercial exterior or interior solution
Design Specifications
- Die-cast aluminium body and stainless steel face cover
- Opal polycarbonate diffuser
- High efficiency SMD LED chips with integral non-dimmable LED driver
- IP68 PVC cable gland
- ABS installation canister included
Specifications
- Input Voltage: 240V
- Wattage: 7W
- Colour temperature: 4000K (Cool White)
- Lumens: 80 Lumens
- CRI: >80
- Dimmable: No
- IP rating: IP65
- Die-cast aluminium body and stainless steel face cover
- Opal polycarbonate diffuser
- High efficiency SMD LED chips
- Built in non-dimmable LED driver
- Silicone gasket
- IP68 PVC cable gland
- Stainless steel allen screws
- ABS installation canister included
Dimensions
- Length: 255mm
- Width: 76mm
CANISTER INSTALLATION INSTRUCTIONS
- A1 & A2 are the support plates used during the construction installation process to prevent deformation of the installation canister
- Slot in A1 & A2 plates during construction
- Please remove the support plates (A1 & A2) before final installation
Click to view technical specification:
