Usually leaves our warehouse in 3-4 business days
Description

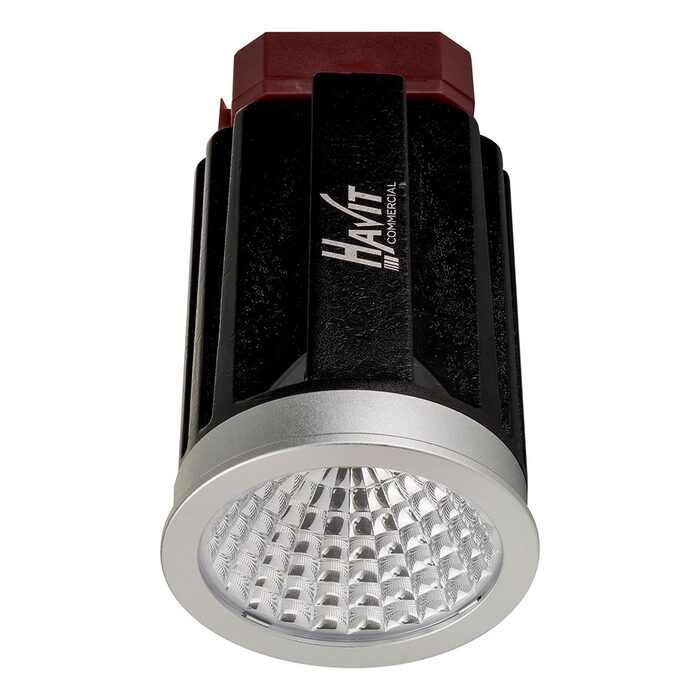

The Lyra Quinto series are a plug and play LED lamp module and LED driver set.
They are the perfect solution for residential homes to commercial projects such as hotels, clubs, pubs and bars.
Designed not only as a replacement for traditional halogen lamps in most applications, but also as a replaceable LED lamp and driver set for a range of click in frames, as a complete downlight solution.
For retrofit, it’s as easy as removing the standard MR16 halogen lamp and transformer and replacing it with the Quinto lamp and LED driver. It suits most MR16 downlight frames, depending on height.
This module comes complete with a standard 60°. Optional reflector style lens with a choice of 15°, 28° or 40° beam angle effects to suit ceiling heights or lighting effects are available.

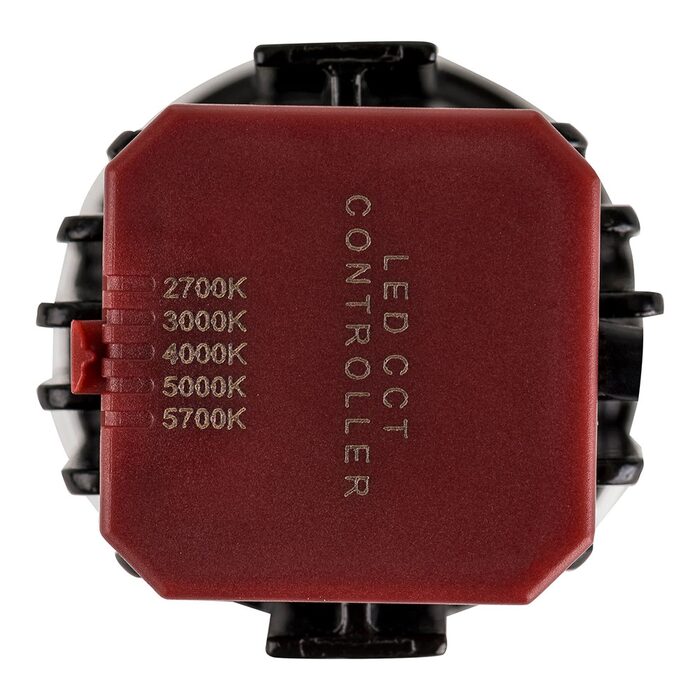

With the choice of 2700K, 3000K, 4000K, 5000K and 5700K colour temperature options to suit the desired light appearance.

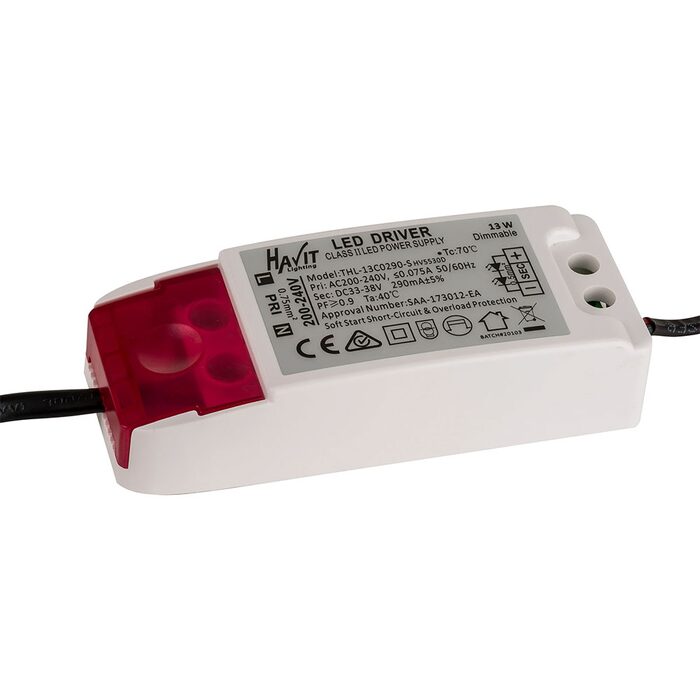

Complete with triac dimmable LED driver and flex and plug. Backed by our Five Year Replacement Warranty.
Specifications
- Input Voltage: 240V
- Wattage: 13W
- Colour Temperature: 2700K / 3000K / 4000K / 5000K / 5700K
- Lumens: 980 / 965 / 959 / 1072 / 1089
- Beam Angle: 60° (Optional 15° / 28° / 40° reflectors available)
- Dimmable: Dali Dimming
- CRI: ≥90
- IP rating: IP44
- Warranty Period: 5Y
- Warranty Type: Replacement
Dimensions
- Height: 80.3mm
- Diameter: 49.8mm
Click to view technical specification:
They are the perfect solution for residential homes to commercial projects such as hotels, clubs, pubs and bars.
Designed not only as a replacement for traditional halogen lamps in most applications, but also as a replaceable LED lamp and driver set for a range of click in frames, as a complete downlight solution.
For retrofit, it’s as easy as removing the standard MR16 halogen lamp and transformer and replacing it with the Quinto lamp and LED driver. It suits most MR16 downlight frames, depending on height.
This module comes complete with a standard 60°. Optional reflector style lens with a choice of 15°, 28° or 40° beam angle effects to suit ceiling heights or lighting effects are available.
With the choice of 2700K, 3000K, 4000K, 5000K and 5700K colour temperature options to suit the desired light appearance.
Complete with triac dimmable LED driver and flex and plug. Backed by our Five Year Replacement Warranty.
Specifications
- Input Voltage: 240V
- Wattage: 13W
- Colour Temperature: 2700K / 3000K / 4000K / 5000K / 5700K
- Lumens: 980 / 965 / 959 / 1072 / 1089
- Beam Angle: 60° (Optional 15° / 28° / 40° reflectors available)
- Dimmable: Dali Dimming
- CRI: ≥90
- IP rating: IP44
- Warranty Period: 5Y
- Warranty Type: Replacement
Dimensions
- Height: 80.3mm
- Diameter: 49.8mm
Click to view technical specification:
