Description

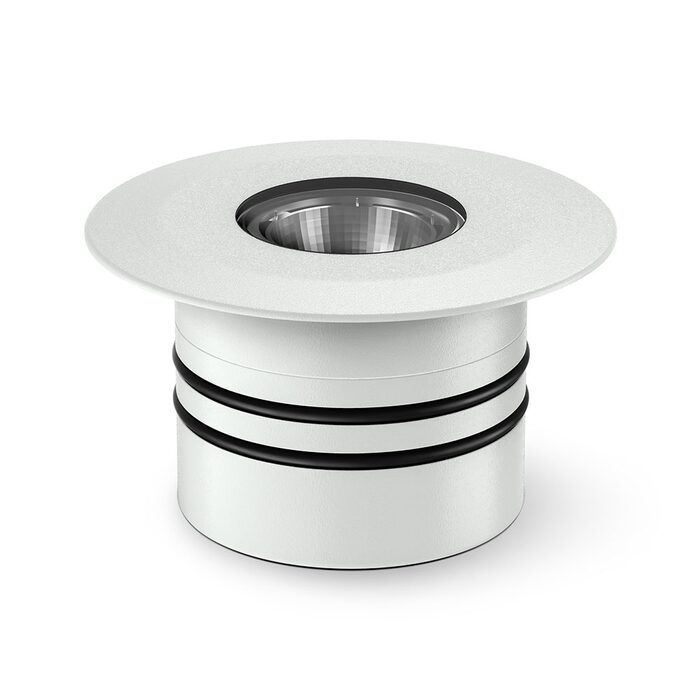

The AQL-156 range is designed for mid-size vertical illumination of walls, facades and features where 1000+ lms is required.
Available with high efficiency reflector optics, asymmetric wall washing or low glare TIR options. Full Dulux powder coat range is available as well as a hybrid epoxy primer for coastal applications.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Construction: CNC Machined Aluminium
- IP Rating: IP67
- Wattage: 15W
- Colour Temp: 2700K / 3000K / 4000K
- Lumens: 1500lm

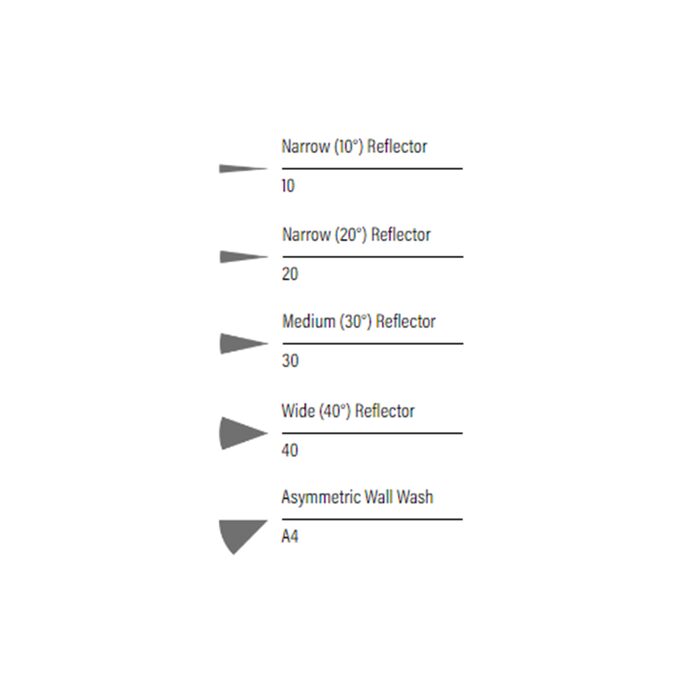

- Beam: 10° / 20° / 30° / 40° / A4 (Asymmetric Wall Wash)
- CRI: 90
- Dimming: 3 Wire PWM 10V Dimming

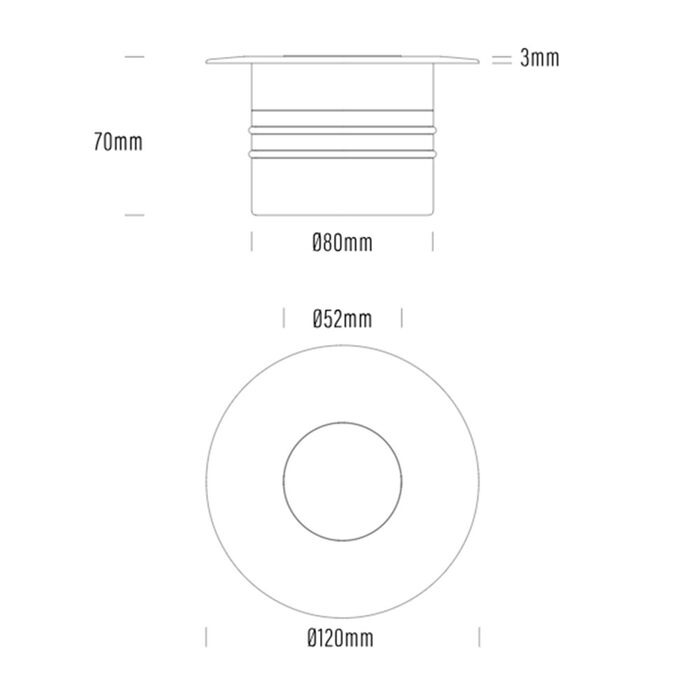

Dimensions
- Cut Out: 80mm
- Diameter: 120mm
- Depth: 70mm
Available with high efficiency reflector optics, asymmetric wall washing or low glare TIR options. Full Dulux powder coat range is available as well as a hybrid epoxy primer for coastal applications.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Construction: CNC Machined Aluminium
- IP Rating: IP67
- Wattage: 15W
- Colour Temp: 2700K / 3000K / 4000K
- Lumens: 1500lm
- Beam: 10° / 20° / 30° / 40° / A4 (Asymmetric Wall Wash)
- CRI: 90
- Dimming: 3 Wire PWM 10V Dimming
Dimensions
- Cut Out: 80mm
- Diameter: 120mm
- Depth: 70mm
