Description

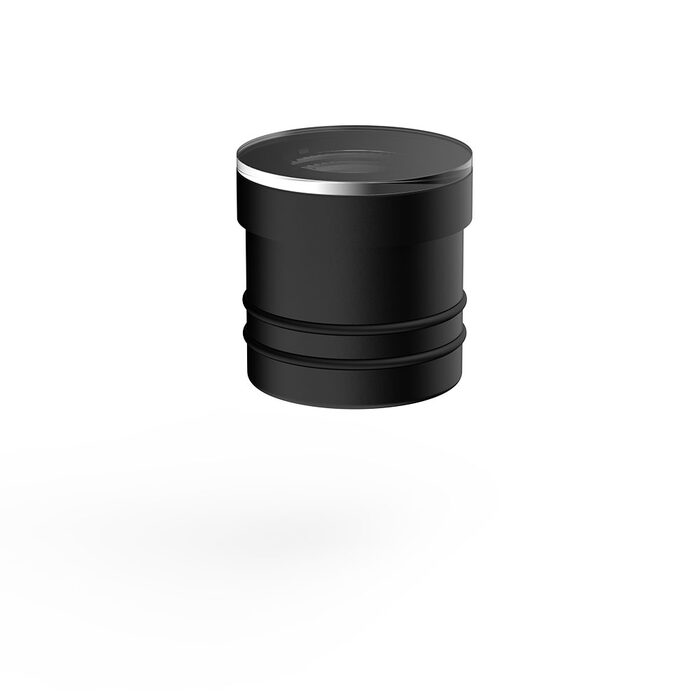

A modern, minimalist uplight that is completely trimless, the AQL-190 range is a mid-power luminaire generating up to 1100lms of low-glare, controlled light for the ultimate in discreet illumination.

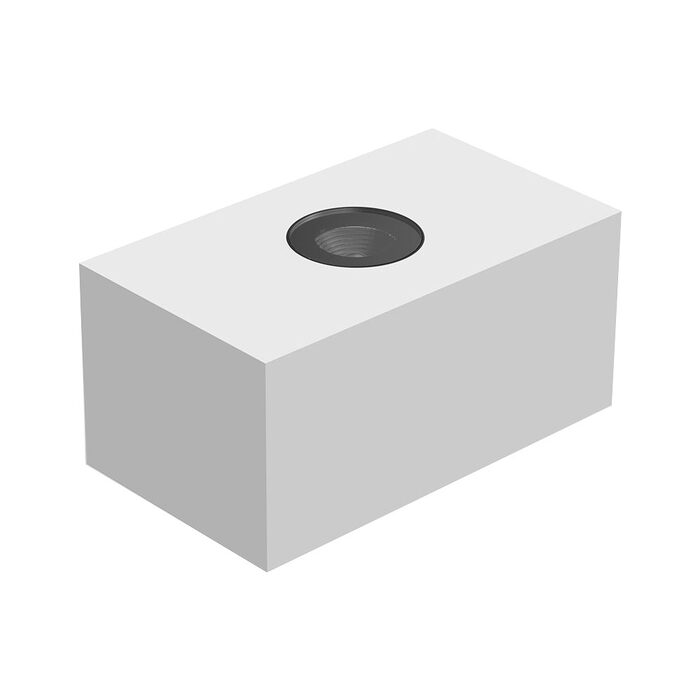

Available in a range of low-UGR optics and CCTs, the range comes with a precision machined & powdercoated mounting canister for recessing and forming. A small 1mm ring remains visible to protect the glass and provide a visual boundary for the illuminated surface.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Construction: CNC Machined Aluminium
- IP Rating: IP65
- Wattage: 15W
- Colour Temp: 2700K / 3000K / 4000K
- Lumens: 1500lm
- Beam: 12° (U2) / 18° (U3) / 35° (U4) / 50° (U6)
- CRI: 90
- Dimming: 3 Wire PWM 10V Dimming
Dimensions (With Canister)
Cut Out: 72.5mm
Depth: 120mm
Dimensions (Without Canister)
Diameter: 69.8mm
Depth: 71.2mm
Available in a range of low-UGR optics and CCTs, the range comes with a precision machined & powdercoated mounting canister for recessing and forming. A small 1mm ring remains visible to protect the glass and provide a visual boundary for the illuminated surface.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Construction: CNC Machined Aluminium
- IP Rating: IP65
- Wattage: 15W
- Colour Temp: 2700K / 3000K / 4000K
- Lumens: 1500lm
- Beam: 12° (U2) / 18° (U3) / 35° (U4) / 50° (U6)
- CRI: 90
- Dimming: 3 Wire PWM 10V Dimming
Dimensions (With Canister)
Cut Out: 72.5mm
Depth: 120mm
Dimensions (Without Canister)
Diameter: 69.8mm
Depth: 71.2mm
