Description
The Havit HV9668-24V25W is a 25W, 24V DC constant voltage indoor LED driver designed for Triac dimming (5%-100%).
It features a 240V AC input, comes with a pre-wired flex and plug for easy installation, and is IP20 rated.
It has a recommended maximum load of 20W and a minimum of 2.5W.
Specifications
- Input Voltage: 220 - 240v AC
- Output Voltage: 24v DC Constant Voltage
- Output power: 25W
- Recommended Max load: 20w
- Recommended Mini Load: 2.5w
- IP Rating: IP20
- Protection Class: 2 (No Earth Required)
- Wiring: Parallel
- Flex and Plug Included
- Protection: Short Circuit, Overload, Over Temperature
- Dimmable: Yes - Triac (5%-100%)
- Fixture Colour: White
- Material: Plastic
- Warranty: 3 Years Replacement*

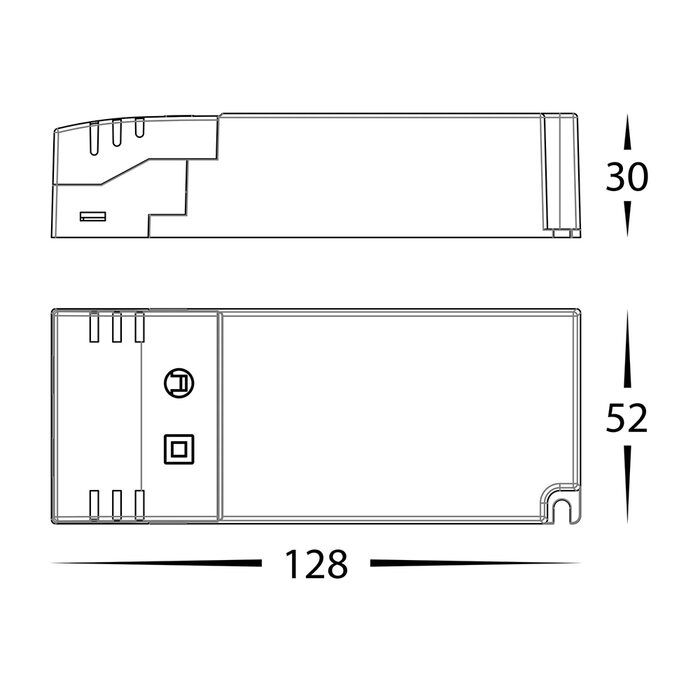

Dimensions
- Length: 128mm
- Width: 52mm
- Height: 30mm
Click to view technical specification:
