Special order, please allow 2-4 weeks
Description
- Dimmable with leading edge or trailing edge dimmers
- IP65 for exterior use
- Flying leads in and out
- Compact design
- Driver Type: Constant Current
- Output Voltage: 3-6V
- Output Power (W): 4W
- Output Current: 700mA
- Input Voltage: 220-240VAC
- Frequency: 50/60Hz
- Input Power (MAX): 6W
- Input Current: 0.01A
- Inrush current: ≤5.0A
- Power Factor: ≥0.90C
- Operating Frequency (Full load): 60KHz
- Ambient/Operating Temperature (ta): -20 …+ 50°C
- Case Temperature (tc): 80°C
- Dimming: Trailing Edge or Phase Dimmable

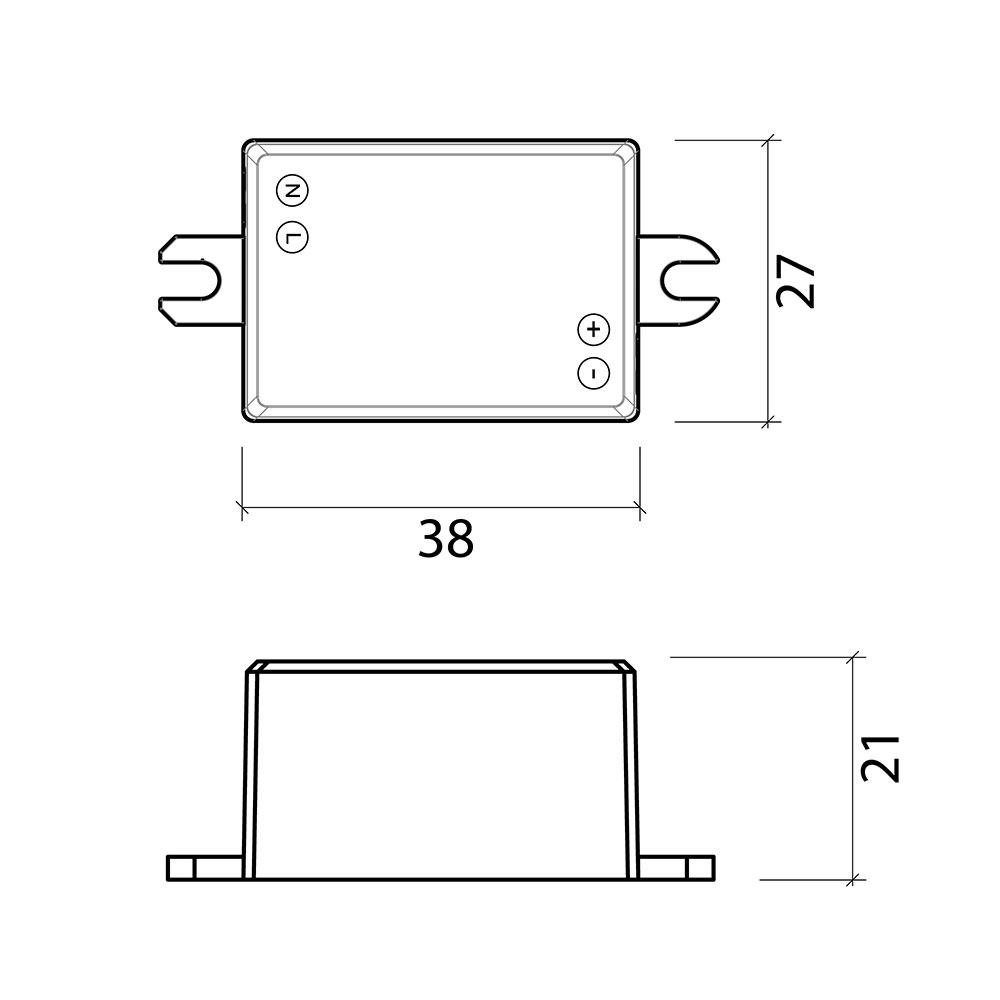

Dimensions
- Lenght: 38mm
- Width: 27mm
- Height: 21mm
- IP65 for exterior use
- Flying leads in and out
- Compact design
- Driver Type: Constant Current
- Output Voltage: 3-6V
- Output Power (W): 4W
- Output Current: 700mA
- Input Voltage: 220-240VAC
- Frequency: 50/60Hz
- Input Power (MAX): 6W
- Input Current: 0.01A
- Inrush current: ≤5.0A
- Power Factor: ≥0.90C
- Operating Frequency (Full load): 60KHz
- Ambient/Operating Temperature (ta): -20 …+ 50°C
- Case Temperature (tc): 80°C
- Dimming: Trailing Edge or Phase Dimmable
Dimensions
- Lenght: 38mm
- Width: 27mm
- Height: 21mm
