Description
The Havit HV9658-24V150W is a 150W, 24V DC weatherproof (IP66) constant-voltage LED driver designed for outdoor lighting, featuring a silver-aluminium casing, 240V AC input, and a maximum recommended load of 120W.
It includes a flex and plug, offers a high power factor, and provides safety protections such as short-circuit, overvoltage, and overload protection.
Specifications
- Input Voltage: 240V
- Output Voltage: 24v DC Constant Voltage
- Output power: 150W
- Recommended Max load: 120w
- Recommended Mini Load: 15w
- IP Rating: IP66
- Wiring: Parallel
- Flex and plug included
- No. of Output Cables: 1
- Protection Class: 1 (Earth Required)
- Protection: Short Circuit, Overload, Over Temperature
- Fixture Colour: Silver
- Material: Aluminium
- Warranty: 3 Years Replacement*

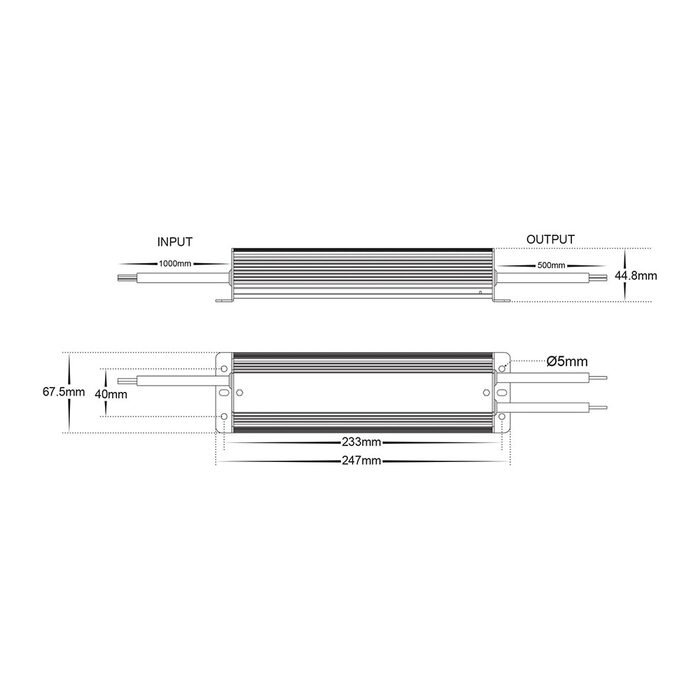

Dimensions
- Height: 44.8mm
- Width: 67.5mm
- Length: 247mm
Click to view technical specification:
