Description

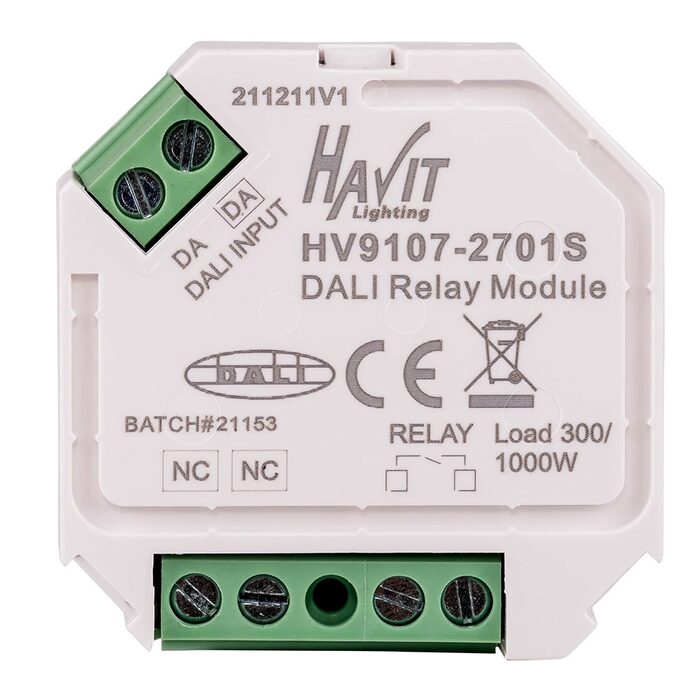

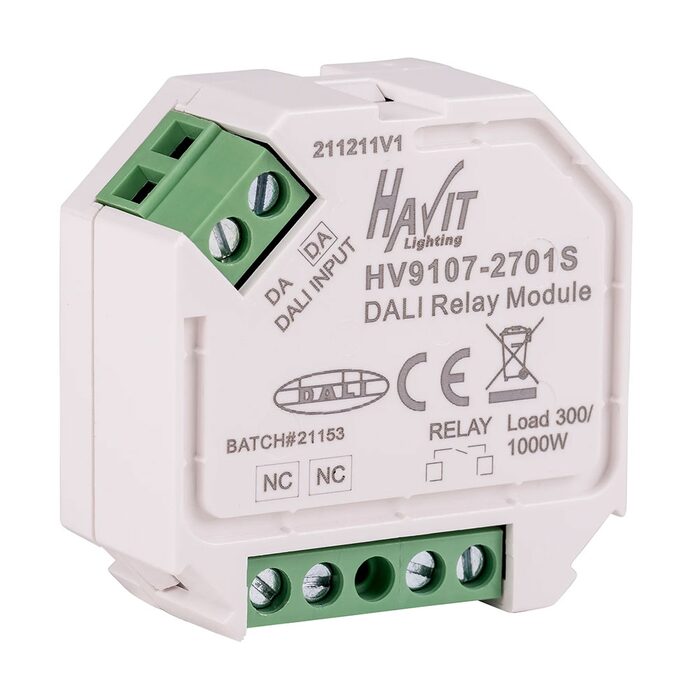

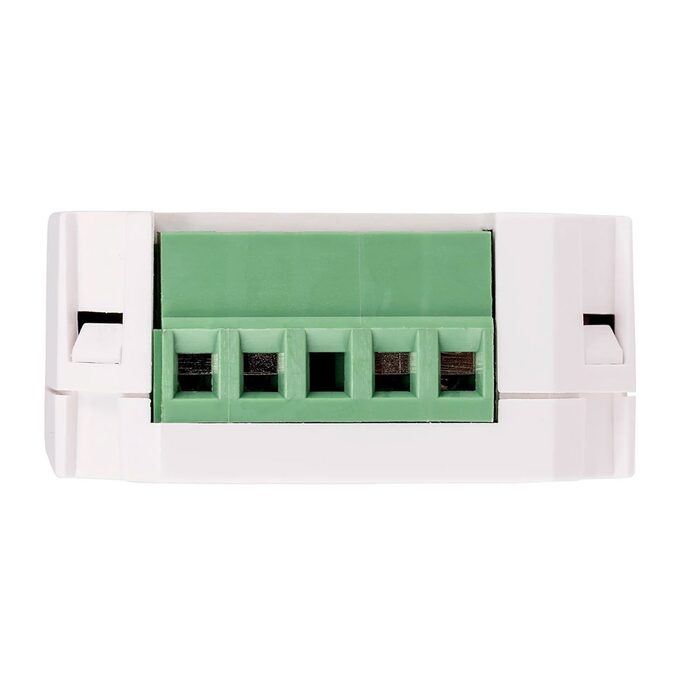

The Havit HV9107-2701S-N is a 240V white plastic DALI on-off relay module designed to control standard lighting via DALI signals.
It is a non-dimmable module with a 300W LED max load, IP20 rating, and requires 1 DALI address, suitable for indoor use with a <30mA consumption.
Specifications
- Input Voltage: 240V
- Output Power: 300W LED
- IP Rating: IP20
- Dimmable: No
- Dimming Range: N/A
- No. of Addresses: 1
- Consumption: <30ma
- Working Temp: -30° C - 55° C
- Protection: Overload & Short Circuit
- Fixture Colour: White
- Material: Plastic
- Warranty: 3 Years Replacement
Dimensions
- Length: 46mm
- Width: 45mm
- Height: 21mm
