Description

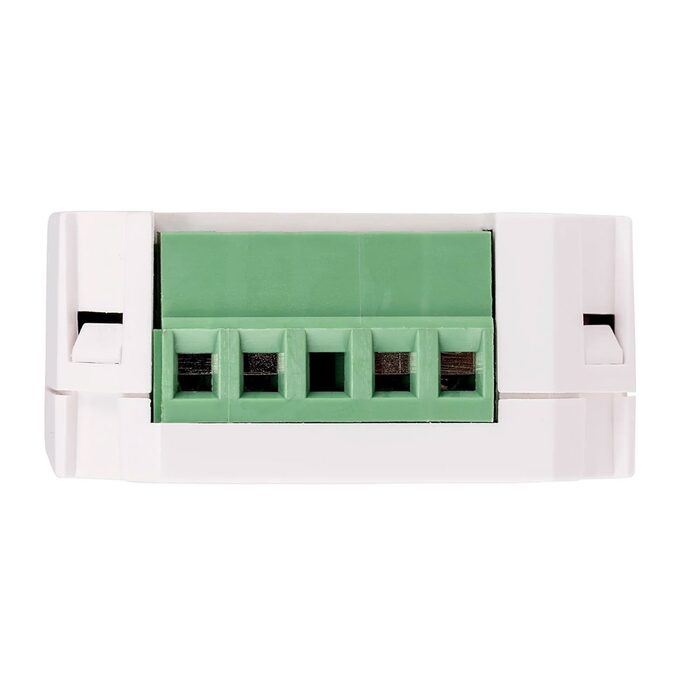

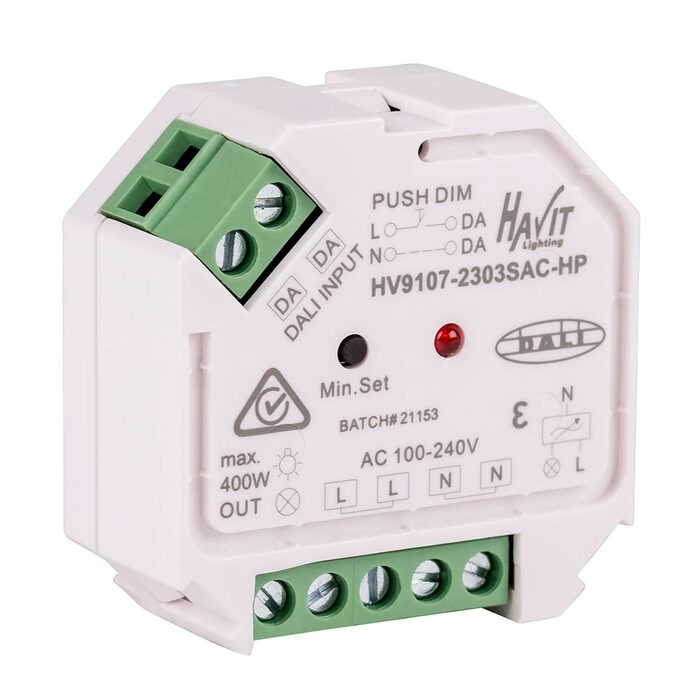

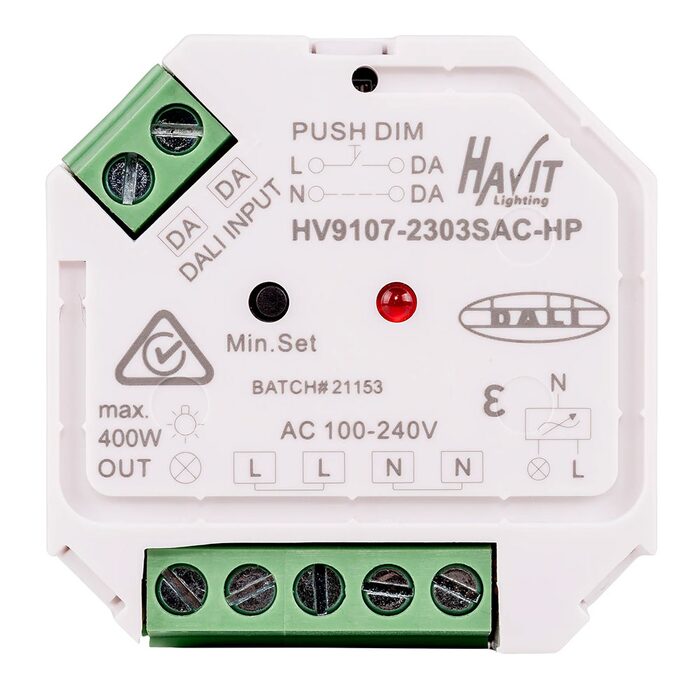

The Havit HV9107-2303SAC-HP is a 240V, 300W IP20-rated, white plastic DALI dimming relay module designed for indoor, trailing-edge, 0-100% dimming of LED lighting, commonly used to convert Triac dimmable lights into a DALI system.
It supports one DALI address, has a -30 to 55°C temperature range, and comes with a 3-year replacement warranty.
Specifications
- Input Voltage: 240V
- Output Power: 200W LED
- IP Rating: IP20
- Dimmable: Yes - Dali
- Dimming Range: 0 - 100%
- No. of Addresses: 1
- Consumption: <30ma
- Working Temp: -30° C - 55° C
- Protection: Overload & Short Circuit
- Fixture Colour: White
- Material: Plastic
- Warranty: 3 Years Replacement
Dimensions
- Length: 46mm
- Width: 45mm
- Height: 21mm
