Description

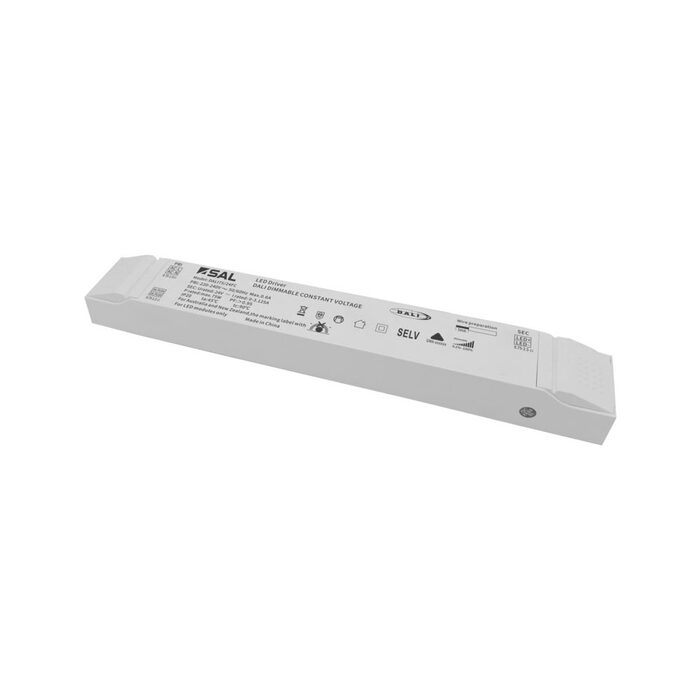

Australian approved, dimmable constant voltage, DALI 2.0 power supply.
Application
Reliable constant voltage dimmable driver with DALI 2.0 certified by DiiA
Design Specifications
- Choice of 75 watt / 24V, 150 watt / 24V or 120 watt / 12V, minimum load 5 watt
- DALI 2.0 certified by DiiA
- Overload and short circuit protection, DALI and Push DIM control with > 12 bit dimming resolution
- SELV and EMC compliant, fixed terminal termination
- flickerCONTROLLED technology, perfect for LED strip applications
- Electrical class II, Do Not Cover.
Performance
Dimmable - YES
Dimmer Type - DALI2
Dimensions
- Height: 31mm
- Width: 43mm
- Length: 300mm
Click to view technical specification:
Application
Reliable constant voltage dimmable driver with DALI 2.0 certified by DiiA
Design Specifications
- Choice of 75 watt / 24V, 150 watt / 24V or 120 watt / 12V, minimum load 5 watt
- DALI 2.0 certified by DiiA
- Overload and short circuit protection, DALI and Push DIM control with > 12 bit dimming resolution
- SELV and EMC compliant, fixed terminal termination
- flickerCONTROLLED technology, perfect for LED strip applications
- Electrical class II, Do Not Cover.
Performance
Dimmable - YES
Dimmer Type - DALI2
Dimensions
- Height: 31mm
- Width: 43mm
- Length: 300mm
Click to view technical specification:
