Description

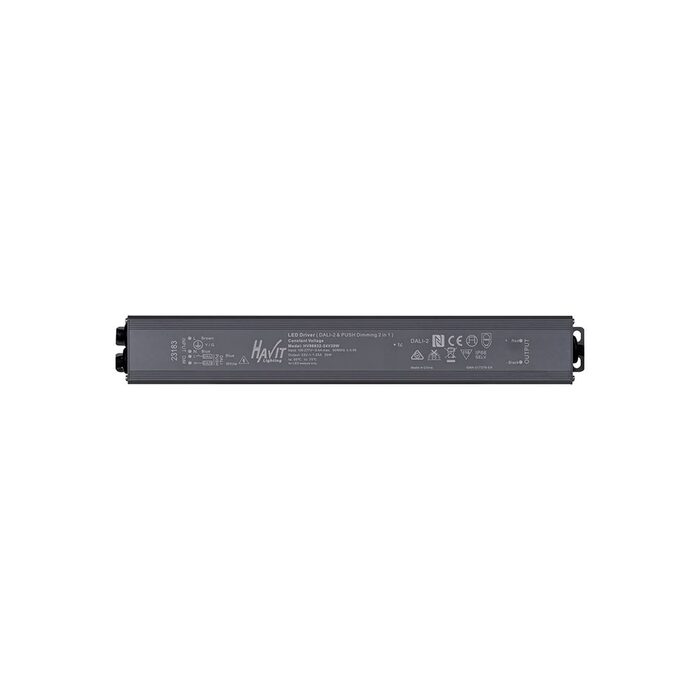

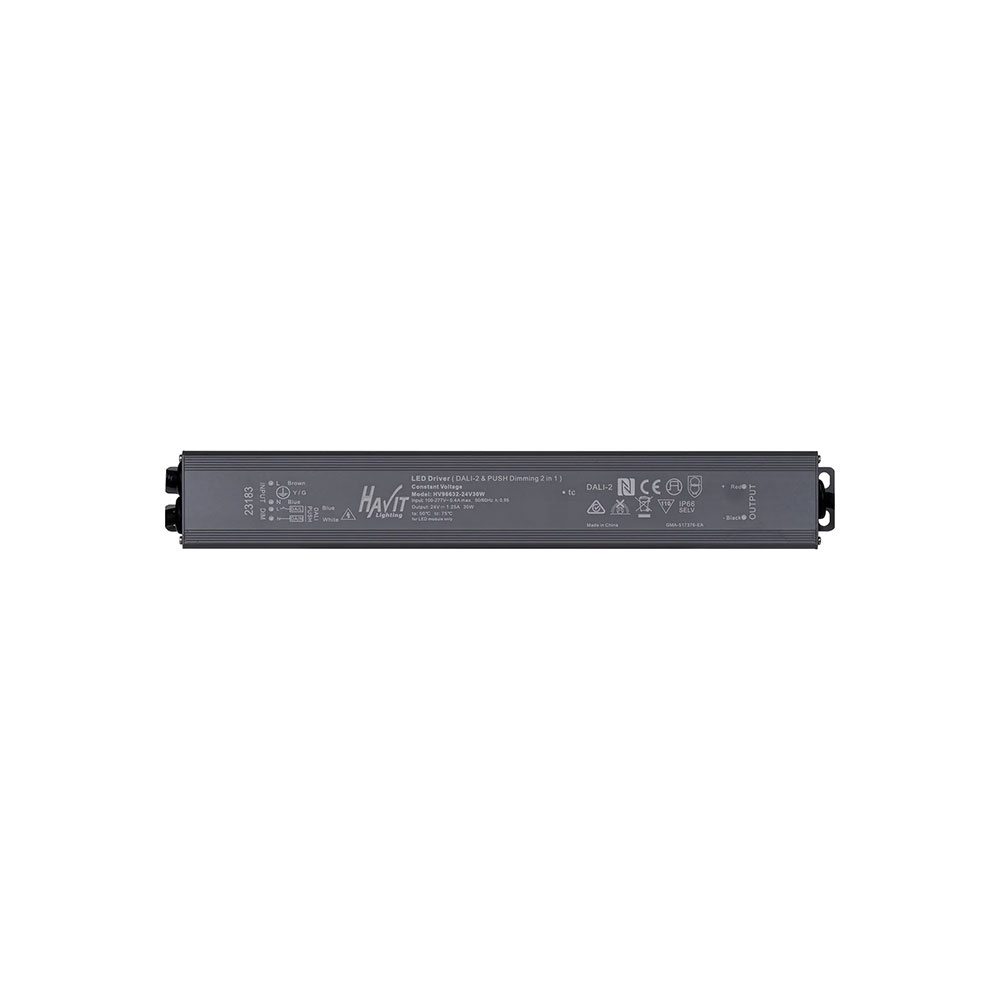

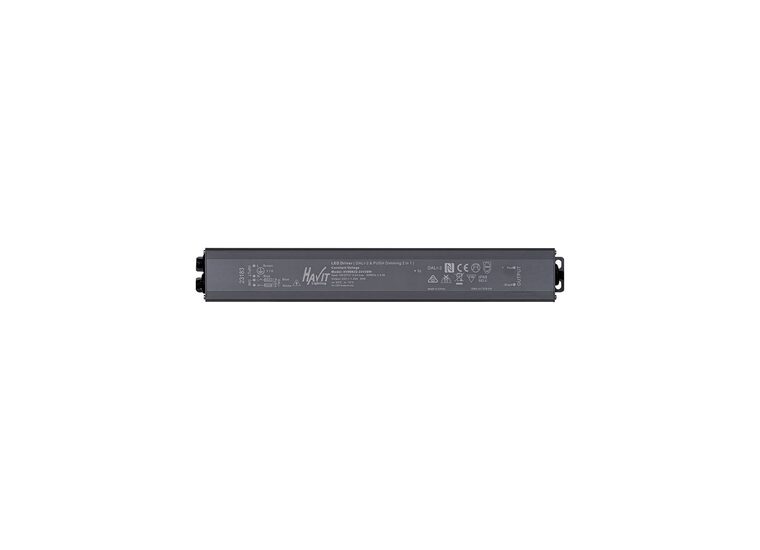

The Havit HV96632-24V30W is a 30W, 24V DC IP66-rated weatherproof dimmable LED driver featuring dual DALI-2 and Push Dim control.
It supports a load of 3W–24W, includes a flex and plug, and features a high power factor of 0.95. This versatile, durable unit is suitable for indoor/outdoor use, residential or commercial, and comes with a 3-year replacement warranty.
Specifications
- Input Voltage: 100v - 277v AC
- Output Voltage: 24v DC Constant Voltage
- Output power: 30W
- Recommended Max load: 24w
- Recommended Mini Load: 3w
- IP Rating: IP66
- Flex and plug included
- Protection Class: 1 (Earth Required)
- Protection: Short Circuit, Overload, Over Temperature
- Dimmable: Yes (0%-100%)
- Dimming Methods: DALI 2 or Push Dim
- Fixture Colour: Anodised Grey
- Material: Aluminium
- Warranty: 3 Years Replacement*

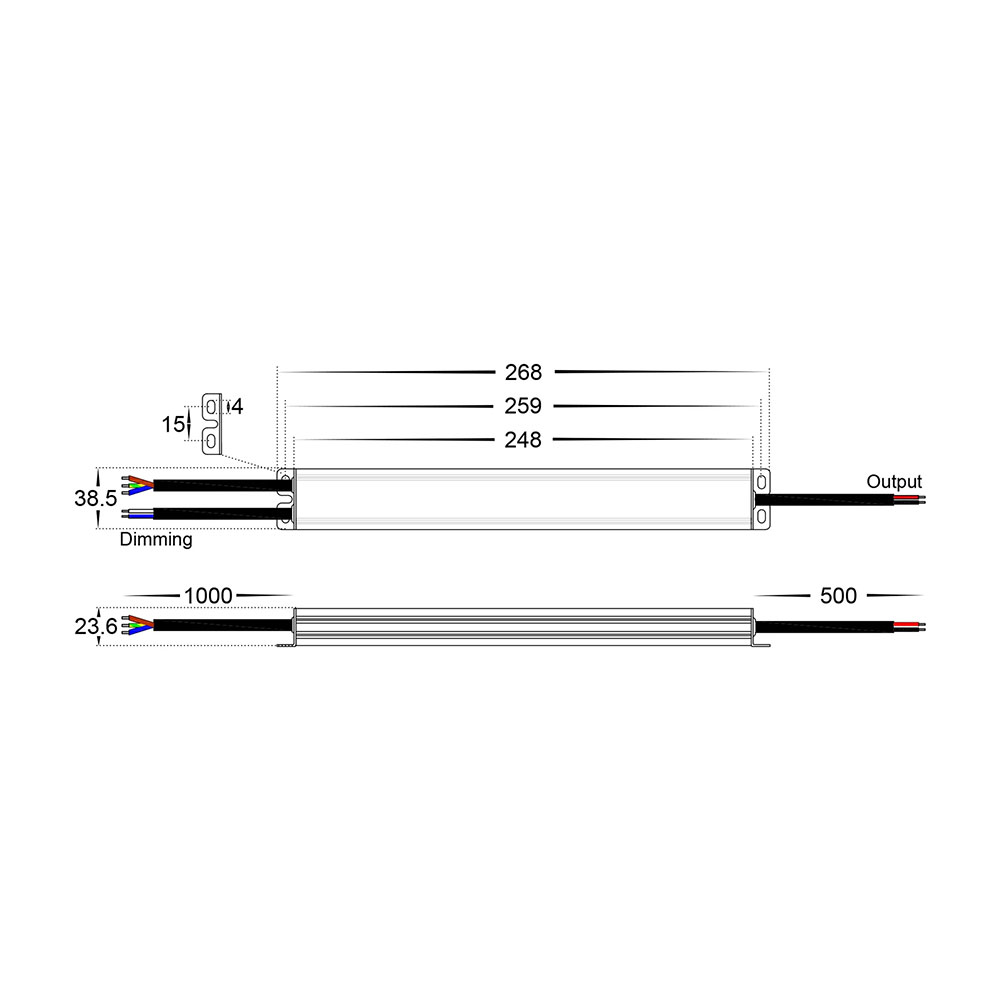

Dimensions
- Height: 23.6mm
- Width: 38.5mm
- Length: 268mm
Click to view technical specification:
