Description

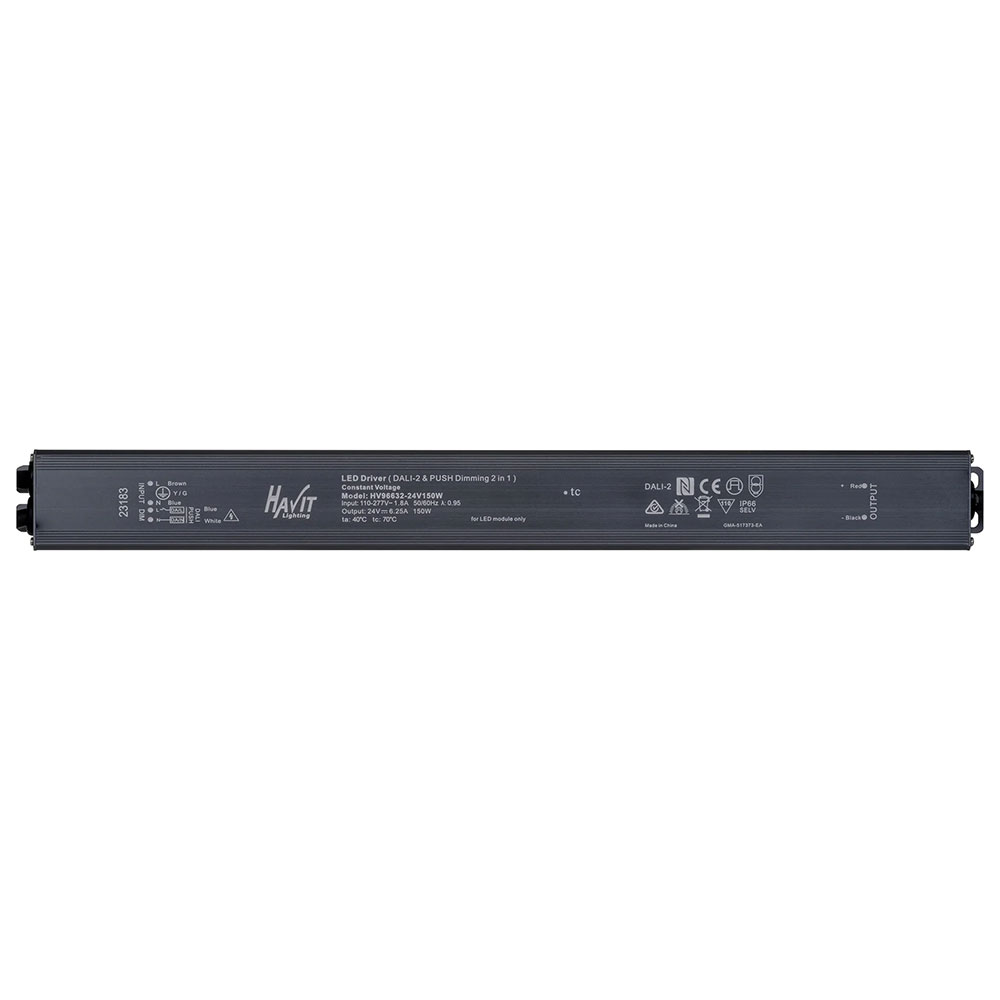

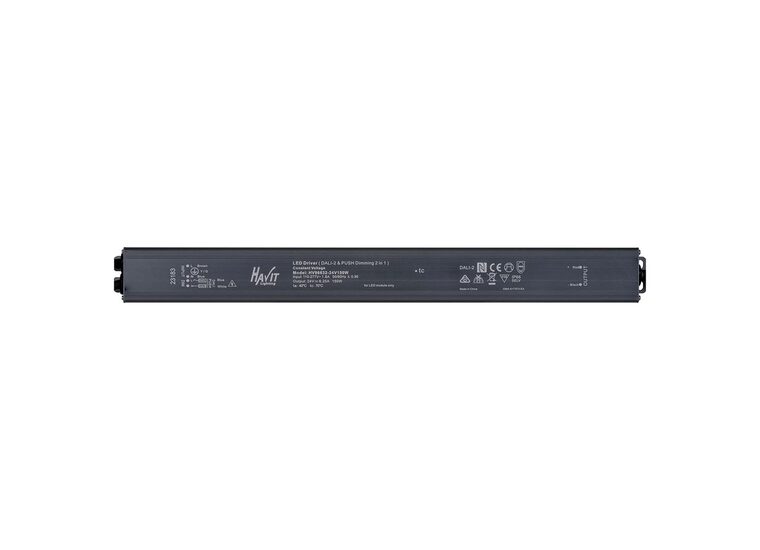

The Havit HV96632-24V150W is a 150W, 24V DC constant voltage LED driver designed for high-performance, dimmable lighting applications.
It is a 2-in-1 driver featuring both DALI 2 and Push Dimming options, suitable for both indoor and outdoor installations.
Specifications
- Input Voltage: 100v - 277v AC
- Output Voltage: 24v DC Constant Voltage
- Output power: 150W
- Recommended Max load: 120w
- Recommended Mini Load: 15w
- IP Rating: IP66
- Flex and plug included
- Protection Class: 1 (Earth Required)
- Protection: Short Circuit, Overload, Over Temperature
- Dimmable: Yes (0%-100%)
- Dimming Methods: DALI 2 or Push Dim
- Fixture Colour: Anodised Grey
- Material: Aluminium
- Warranty: 3 Years Replacement*

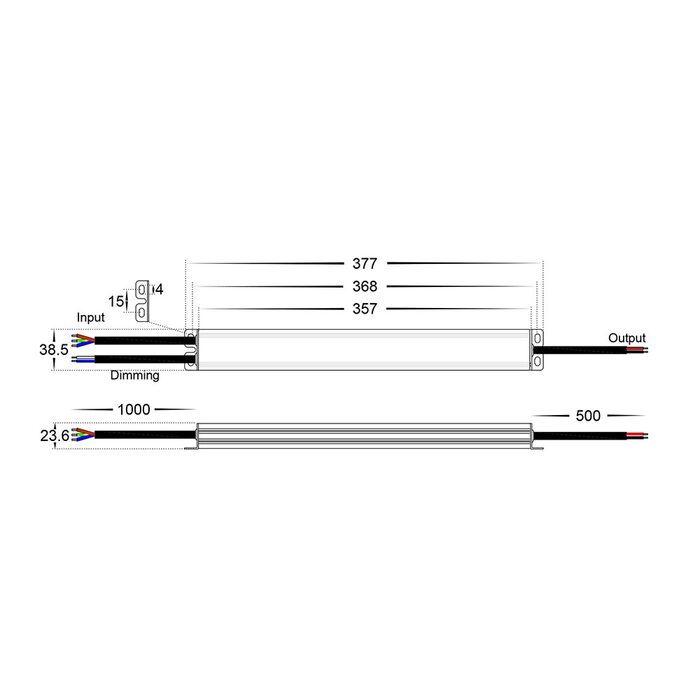

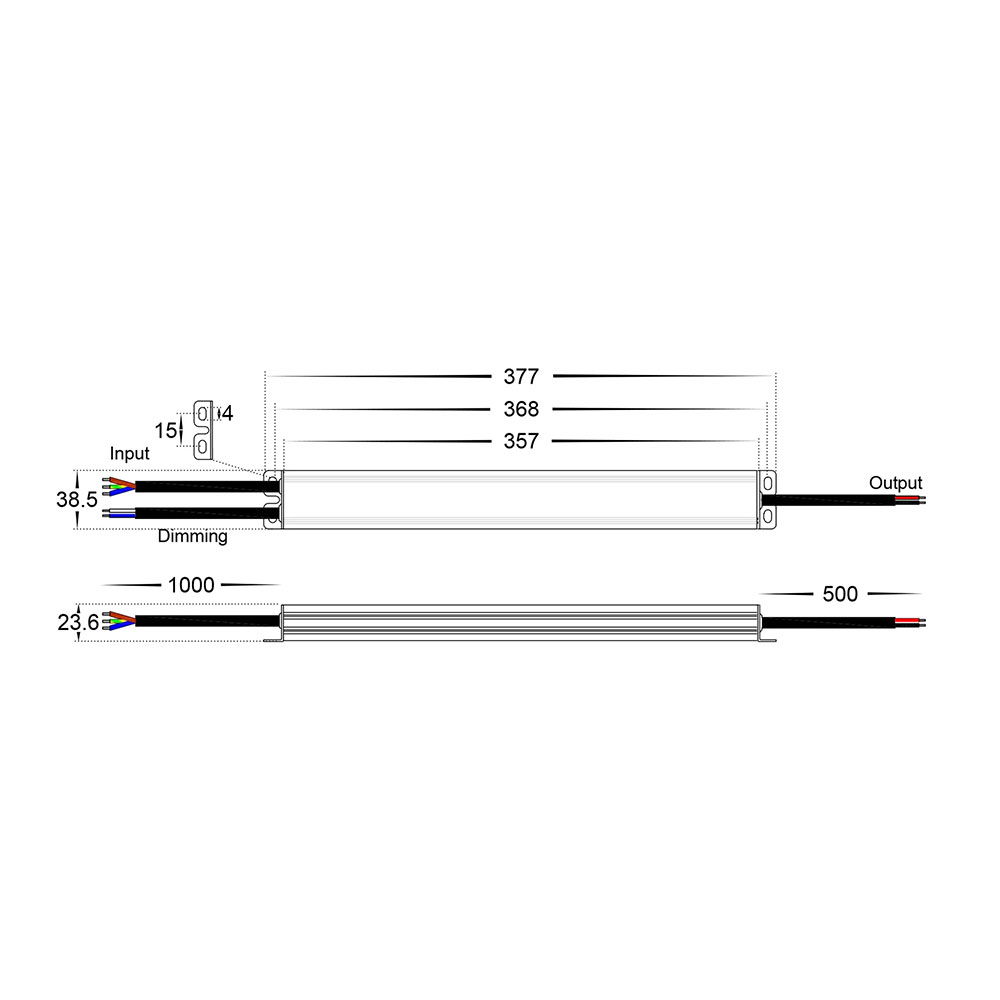

Dimensions
- Height: 23.6mm
- Width: 38.5mm
- Length: 377mm
Click to view technical specification:
