Description
DRIVER-24V-SLIM-DIM Series are a range of indoor Slim Linear 5-In-1 Dimmable 24V DC Constant Voltage LED Drivers for use with LED
strip lighting, LED profiles and much more. Secondary side short circuit protection.
Thermal overload protection, over temperature protection and over voltage protection.
Complete with 1M flex and plug. Dimming options: Triac Dimmable, 0-10V, 1-10V, 10W PWM, and Potentiometer.
Fully Triac dimmable with suitable dimmers. Indoor use only.
Choose from 30W, 60W, and 100W wattages. Parallel wiring. Backed by a 5 Year replacement Warranty
Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Power: 60W
- Output Current: 2.5A
- IP Rating: IP20
- Dimmable: Yes
- Voltage Tolerance: +-0.5V
- Voltage Regulation: +-0.5%
- Power Factor: PF>0.96
- Working Temp: -40~+60°C
- Working Humidity: 20~90%RH
- Efficiency: up to 79%

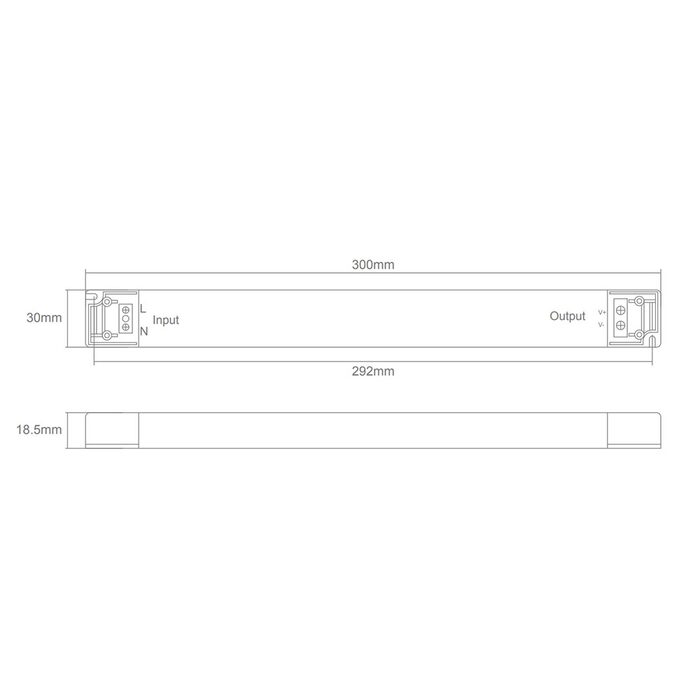

Dimensions
- Length: 300mm
- Width: 30mm
- Height: 18.5mm
Click to view technical specifications:
strip lighting, LED profiles and much more. Secondary side short circuit protection.
Thermal overload protection, over temperature protection and over voltage protection.
Complete with 1M flex and plug. Dimming options: Triac Dimmable, 0-10V, 1-10V, 10W PWM, and Potentiometer.
Fully Triac dimmable with suitable dimmers. Indoor use only.
Choose from 30W, 60W, and 100W wattages. Parallel wiring. Backed by a 5 Year replacement Warranty
Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Power: 60W
- Output Current: 2.5A
- IP Rating: IP20
- Dimmable: Yes
- Voltage Tolerance: +-0.5V
- Voltage Regulation: +-0.5%
- Power Factor: PF>0.96
- Working Temp: -40~+60°C
- Working Humidity: 20~90%RH
- Efficiency: up to 79%
Dimensions
- Length: 300mm
- Width: 30mm
- Height: 18.5mm
Click to view technical specifications:
