Description

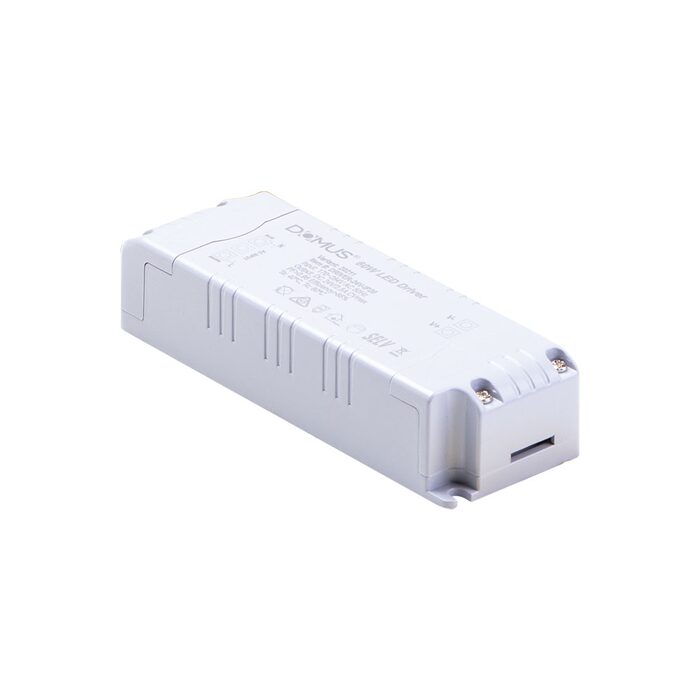

DRIVER-24V-IP20-DIM Series are a range of indoor Triac Dimmable 24V DC Constant Voltage LED Indoor Drivers for use with LED strip
lighting, inground uplighters, garden spike lighting and much more.
Secondary side short circuit protection.
Thermal overload protection, over temperature protection and over voltage protection. Complete with 1M flex and plug.
Fully dimmable with suitable dimmers. Indoor use only.
Choose from 12W, 20W, 30W, 40W, 60W, 80W and 100W wattages. Parallel wiring. Backed by a 5 Year replacement Warranty.
Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Power: 60W
- Output Current: 2.5A
- IP Rating: IP20
- Dimmable: Yes
- Efficiency: up to 89%; PF>0.95

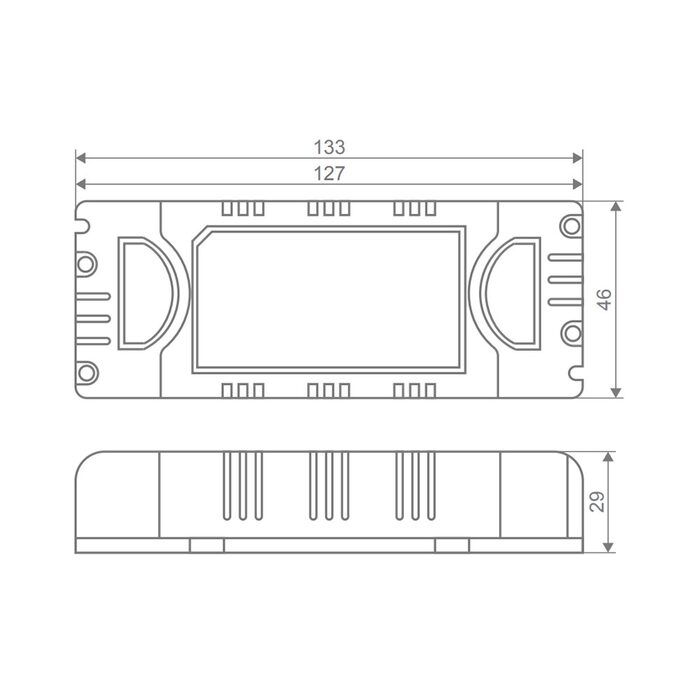

Dimensions
- Length: 133mm
- Width: 46mm
- Height: 29mm
Click to view technical specifications:
lighting, inground uplighters, garden spike lighting and much more.
Secondary side short circuit protection.
Thermal overload protection, over temperature protection and over voltage protection. Complete with 1M flex and plug.
Fully dimmable with suitable dimmers. Indoor use only.
Choose from 12W, 20W, 30W, 40W, 60W, 80W and 100W wattages. Parallel wiring. Backed by a 5 Year replacement Warranty.
Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Power: 60W
- Output Current: 2.5A
- IP Rating: IP20
- Dimmable: Yes
- Efficiency: up to 89%; PF>0.95
Dimensions
- Length: 133mm
- Width: 46mm
- Height: 29mm
Click to view technical specifications:
