Description

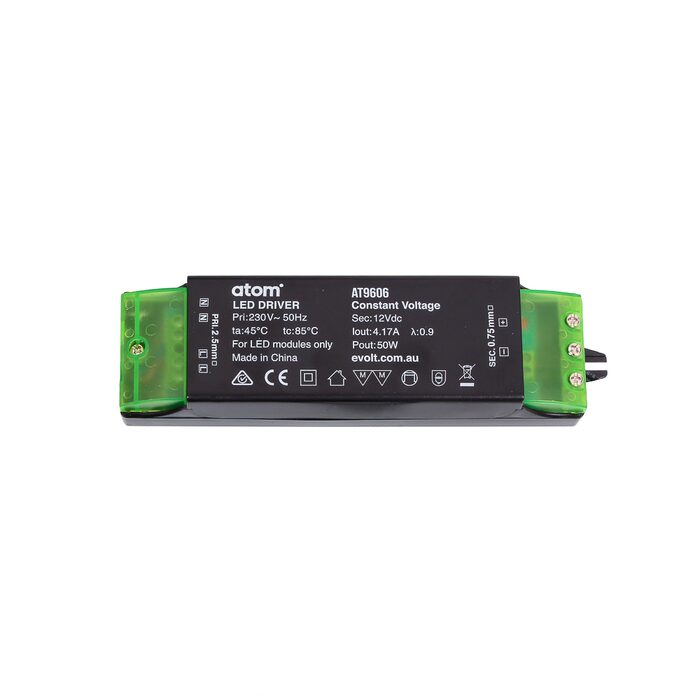

The Atom AT9606 Transformer is a Constant Voltage non-dimmable LED Driver with up to 50W of draw at anyone time.
It has a standard input requirement of 220-240V AC at 50/60Hz and outputs a 12V DC with a maximum current of 4.17A.
It has Short Circuit Protection built in.
Specifications:
- Order Code: 10783
- Input Voltage: 220-240V AC Input @ 50/60Hz
- Output Voltage: 12V DC Output @ 4.17A
- Dimmable: No
- Wattage: 50W Maximum Draw
- IP Rating: IP20
Dimensions
- Length: 165mm
- Height: 34mm
- Width: 47mm
Click to view technical specification:
