Description

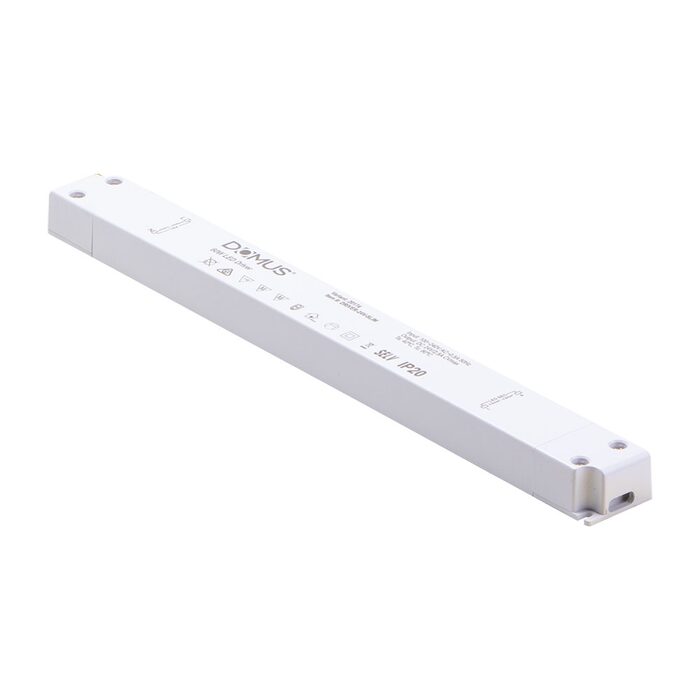

DRIVER-24V-SLIM Series are a range of indoor Slim Linear non-dimmable 24V DC Constant Voltage LED Drivers for use with LED strip lighting, LED profiles and much more.
Secondary side short circuit protection.
Thermal overload protection, over temperature protection and over voltage protection.
Complete with 1M flex and plug. Non-dimmable. Indoor use only.
Choose from 30W, 60W, 100W and 150W wattages. Parallel wiring. Backed by a 5 Year replacement Warranty.
Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Power: 60W
- Output Current: 2.5A
- IP Rating: IP20
- Dimmable: No
- Voltage Tolerance: +-0.5V
- Voltage Regulation: +-0.5%
- Power Factor: PF>0.96
- Working Temp: -40~+60°C
- Working Humidity: 20~90%RH
- Efficiency: up to 79%
Dimensions
- Length: 300mm
- Width: 30mm
- Height: 22mm
Click to view technical specifications:
Secondary side short circuit protection.
Thermal overload protection, over temperature protection and over voltage protection.
Complete with 1M flex and plug. Non-dimmable. Indoor use only.
Choose from 30W, 60W, 100W and 150W wattages. Parallel wiring. Backed by a 5 Year replacement Warranty.
Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Power: 60W
- Output Current: 2.5A
- IP Rating: IP20
- Dimmable: No
- Voltage Tolerance: +-0.5V
- Voltage Regulation: +-0.5%
- Power Factor: PF>0.96
- Working Temp: -40~+60°C
- Working Humidity: 20~90%RH
- Efficiency: up to 79%
Dimensions
- Length: 300mm
- Width: 30mm
- Height: 22mm
Click to view technical specifications:
