Description
DRIVER-24V-IP67 Series are a range of outdoor non-dimmable 24V DC Constant Voltage LED Drivers for use with LED strip lighting, inground uplighters, garden spike lighting and much more. Secondary side short circuit protection.
Thermal overload protection, over temperature protection and over voltage protection.
Complete with 1M flex and plug. Non-dimmable. Suitable for outdoor use.
Choose from 20W, 30W, 60W, 100W, 150W, 200W, 240W, 300W, 400W and 500W wattages. Parallel wiring. Backed by a 5 Year replacement Warranty
Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Power: 500W
- Output Current: 20.84A
- IP Rating: IP67
- Dimmable: No
- Efficiency: up to 89%; PF>0.95
- Working Temp: -40~+60°C
- Working Humidity: 20~90%RH, Non-condensing

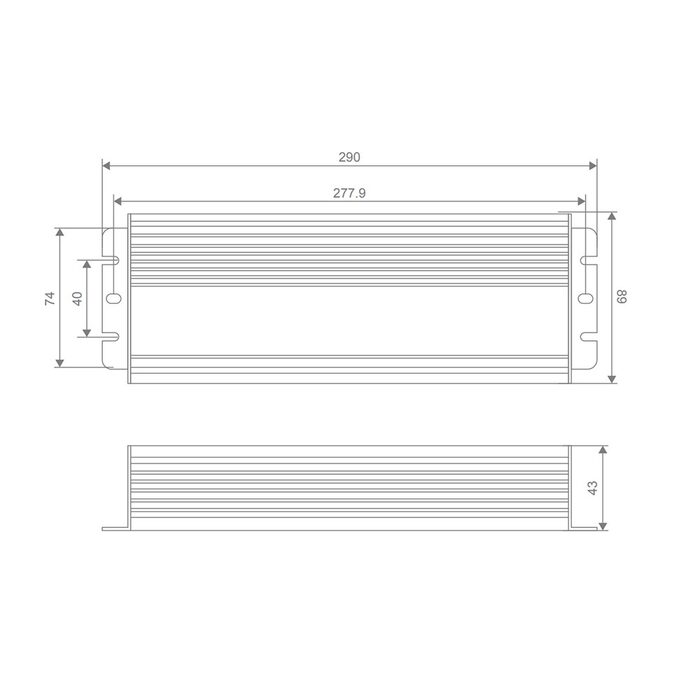

Dimensions
- Length: 290mm
- Width: 89mm
- Height: 43mm
Click to view technical specifications:
Thermal overload protection, over temperature protection and over voltage protection.
Complete with 1M flex and plug. Non-dimmable. Suitable for outdoor use.
Choose from 20W, 30W, 60W, 100W, 150W, 200W, 240W, 300W, 400W and 500W wattages. Parallel wiring. Backed by a 5 Year replacement Warranty
Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Power: 500W
- Output Current: 20.84A
- IP Rating: IP67
- Dimmable: No
- Efficiency: up to 89%; PF>0.95
- Working Temp: -40~+60°C
- Working Humidity: 20~90%RH, Non-condensing
Dimensions
- Length: 290mm
- Width: 89mm
- Height: 43mm
Click to view technical specifications:
