Usually leaves our warehouse in 3-4 business days
Description

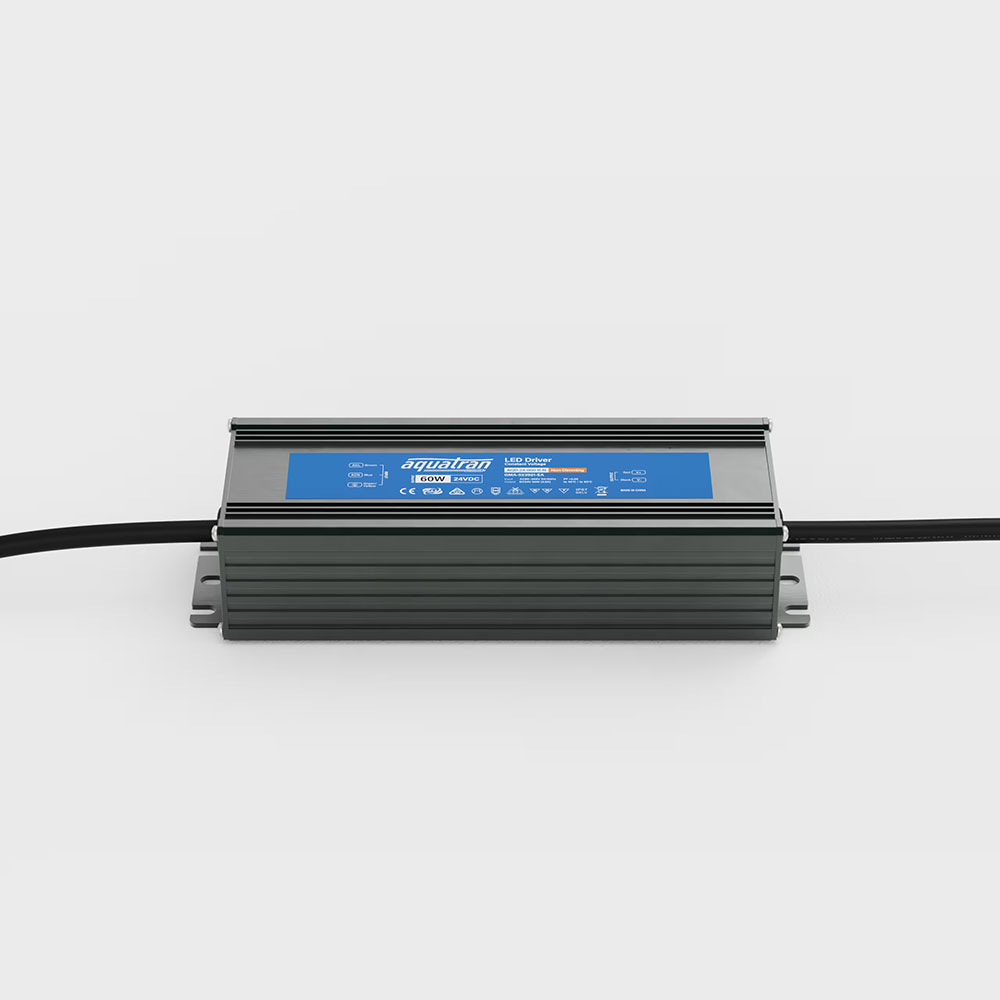

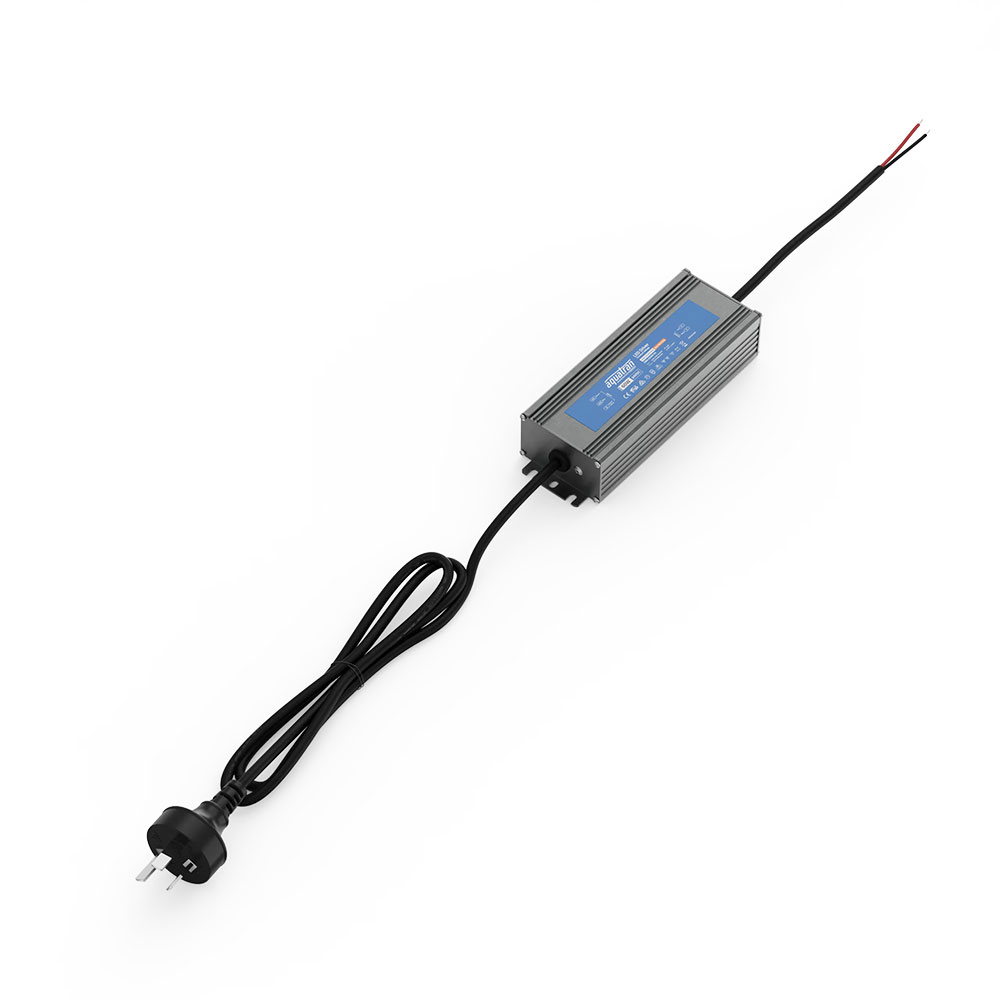

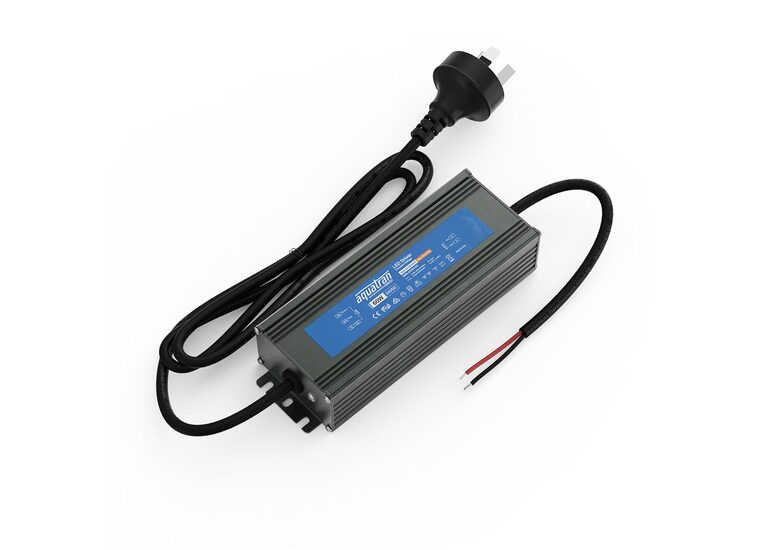

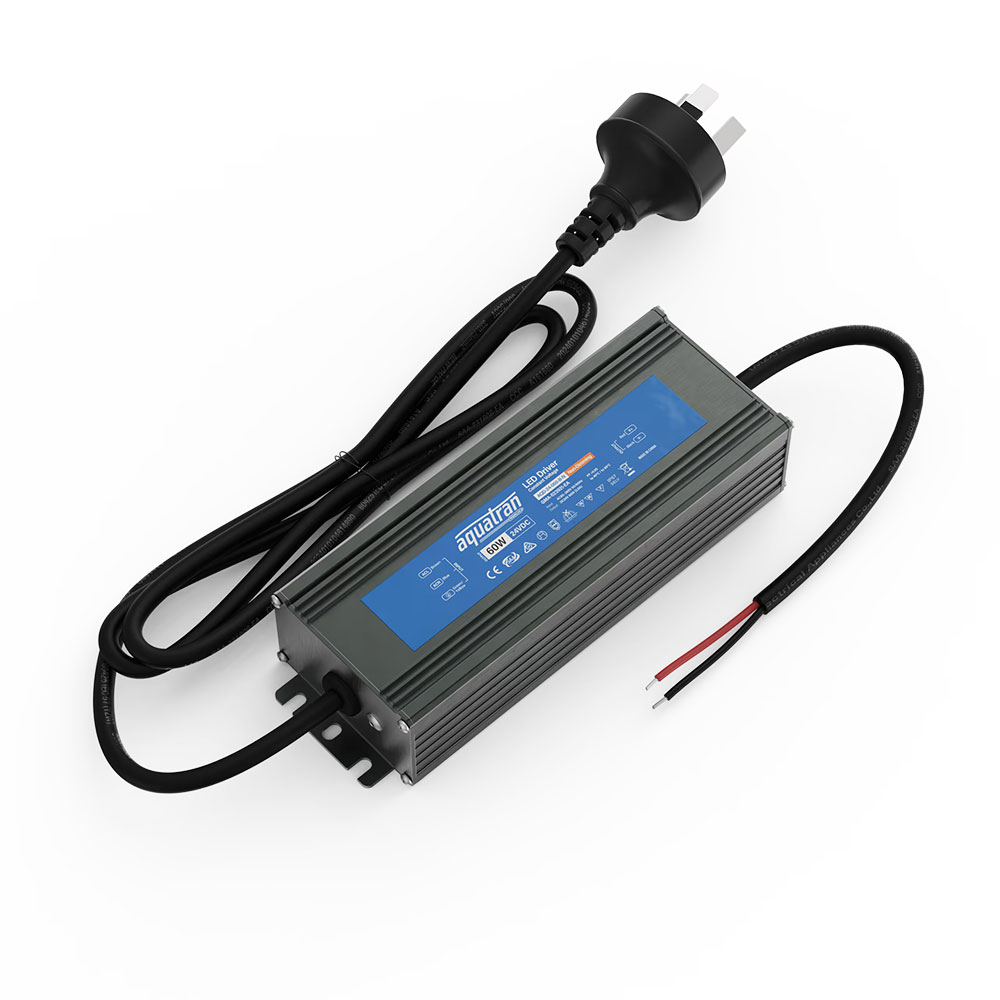

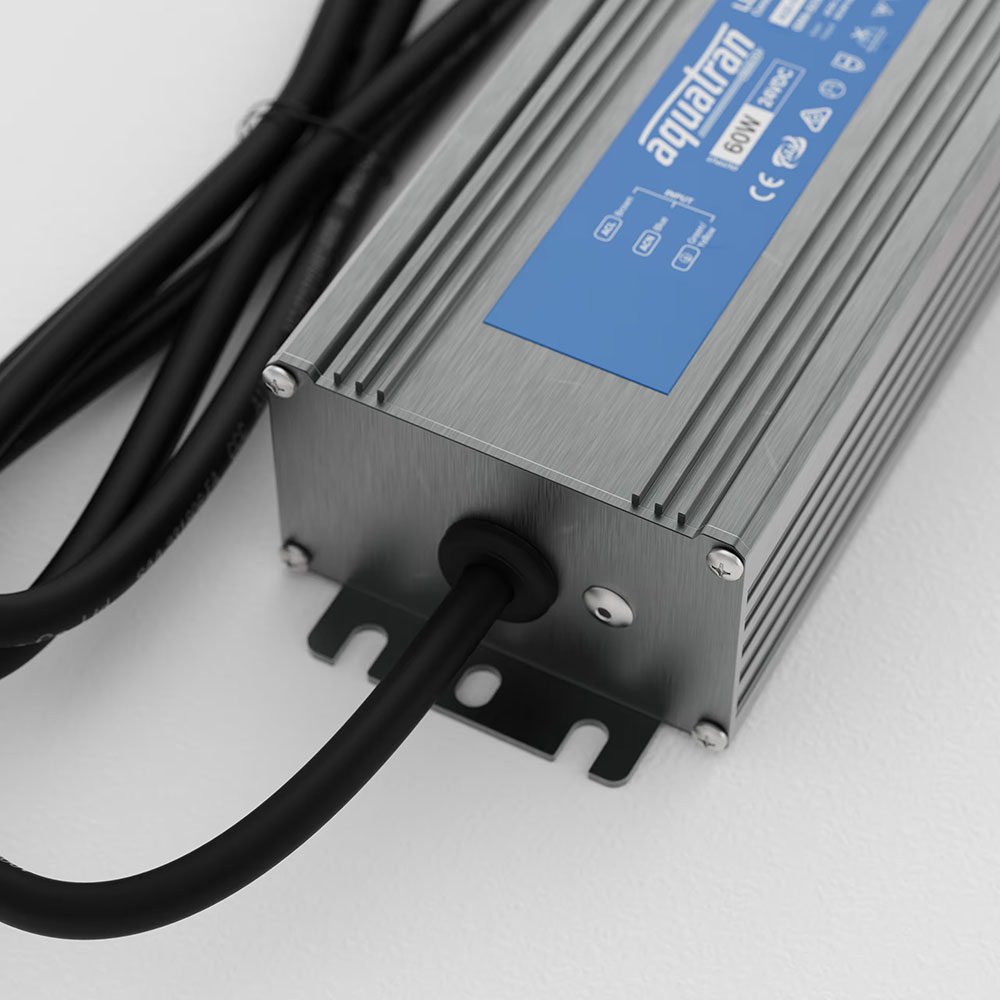

The Aquatran AQD-24-060-B-N is a 60W 24VDC constant-voltage non-dimming power supply with an IP67 rating for indoor and outdoor applications.
This high-efficiency LED driver includes built-in protection against short circuits, over-current, and over-voltage to ensure reliable performance for 24VDC lighting systems.
Specifications
- Voltage: 24VDC
- Current: 2.5A
- Power: 60W
- Ripple & Noise (max): 400mv
- Channel: 1
- Voltage Tolerance: ±5%
Input
- Input Voltage: 85-265v
- Frequency: 50/60Hz
- Power Factor: >0.95
- THD: <10%
- Standby Power: <0.5W
- Current: <0.7A
- Inrush Current (Full Output Load): 17.25A
- Efficiency Full Load 110VAC: 85%
- Efficiency Full Load 230VAC: 87%
- Start 230VAC (milliseconds): <700
- Rise Time 230VAC (milliseconds): <700
- Hold Time 230VAC (milliseconds): <20
- Pulse Duration (T50): 682uS
Output
- Output: 24VDC
- VA: 60W
- IP: IP67
- Dimming: Non-dimmable

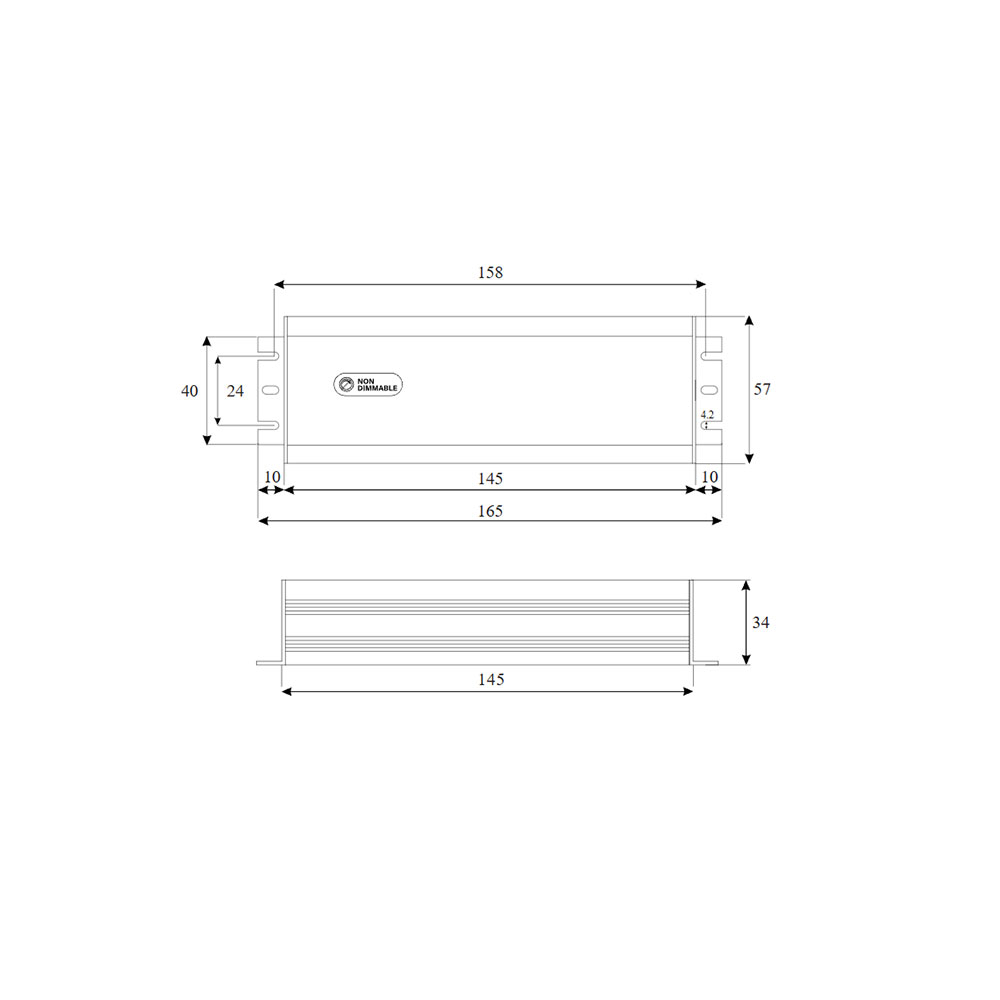

Dimensions
- 164mm x 56mm x 35mm
Click to view technical specification:
This high-efficiency LED driver includes built-in protection against short circuits, over-current, and over-voltage to ensure reliable performance for 24VDC lighting systems.
Specifications
- Voltage: 24VDC
- Current: 2.5A
- Power: 60W
- Ripple & Noise (max): 400mv
- Channel: 1
- Voltage Tolerance: ±5%
Input
- Input Voltage: 85-265v
- Frequency: 50/60Hz
- Power Factor: >0.95
- THD: <10%
- Standby Power: <0.5W
- Current: <0.7A
- Inrush Current (Full Output Load): 17.25A
- Efficiency Full Load 110VAC: 85%
- Efficiency Full Load 230VAC: 87%
- Start 230VAC (milliseconds): <700
- Rise Time 230VAC (milliseconds): <700
- Hold Time 230VAC (milliseconds): <20
- Pulse Duration (T50): 682uS
Output
- Output: 24VDC
- VA: 60W
- IP: IP67
- Dimming: Non-dimmable
Dimensions
- 164mm x 56mm x 35mm
