Aquatran 60W 24VDC DALI-2 IP67 4KHZ PWM Power Supply - AQD-24-060-B-D
Usually leaves our warehouse in 3-4 business days

Aquatran 60W 24VDC DALI-2 IP67 4KHZ PWM Power Supply - AQD-24-060-B-D

SKU334883
Aqualux Lighting
Add to wish list Add to compare list
See the entire Aquatran Power collection
AU$0.00
Enquire Now
Description

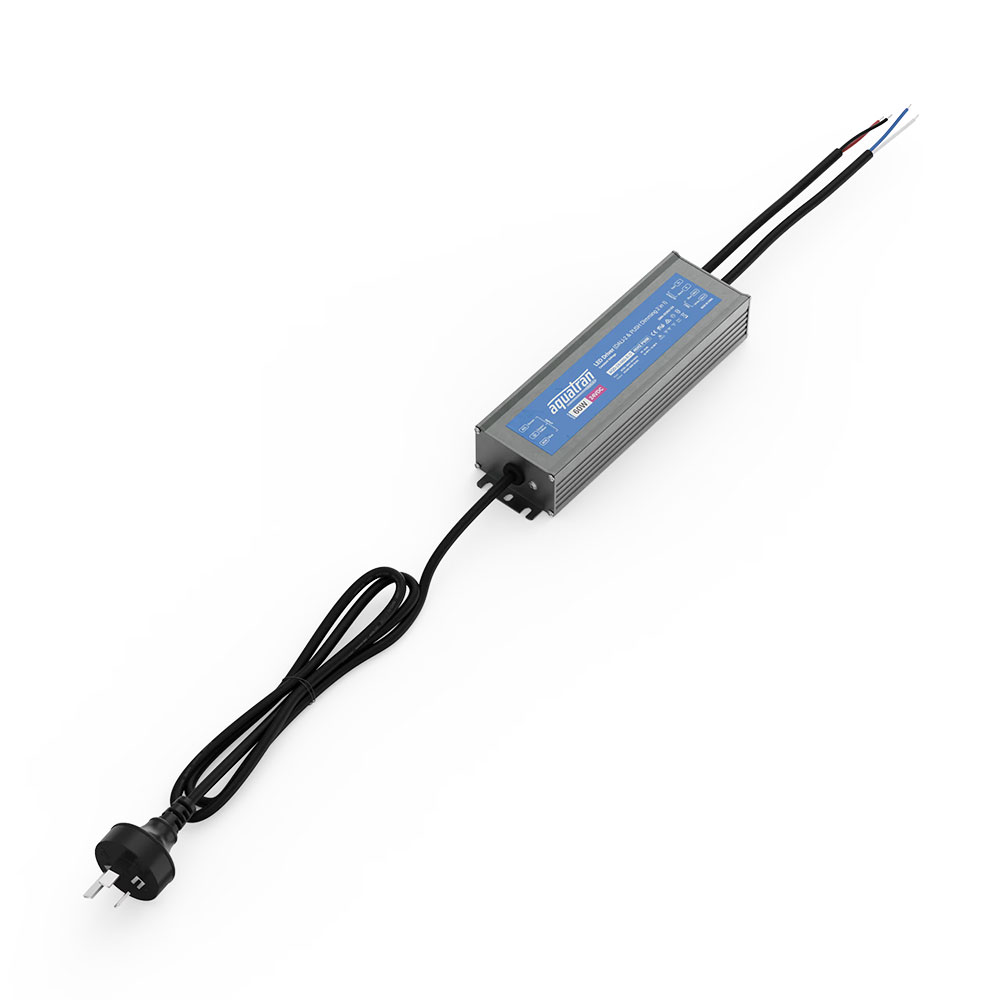

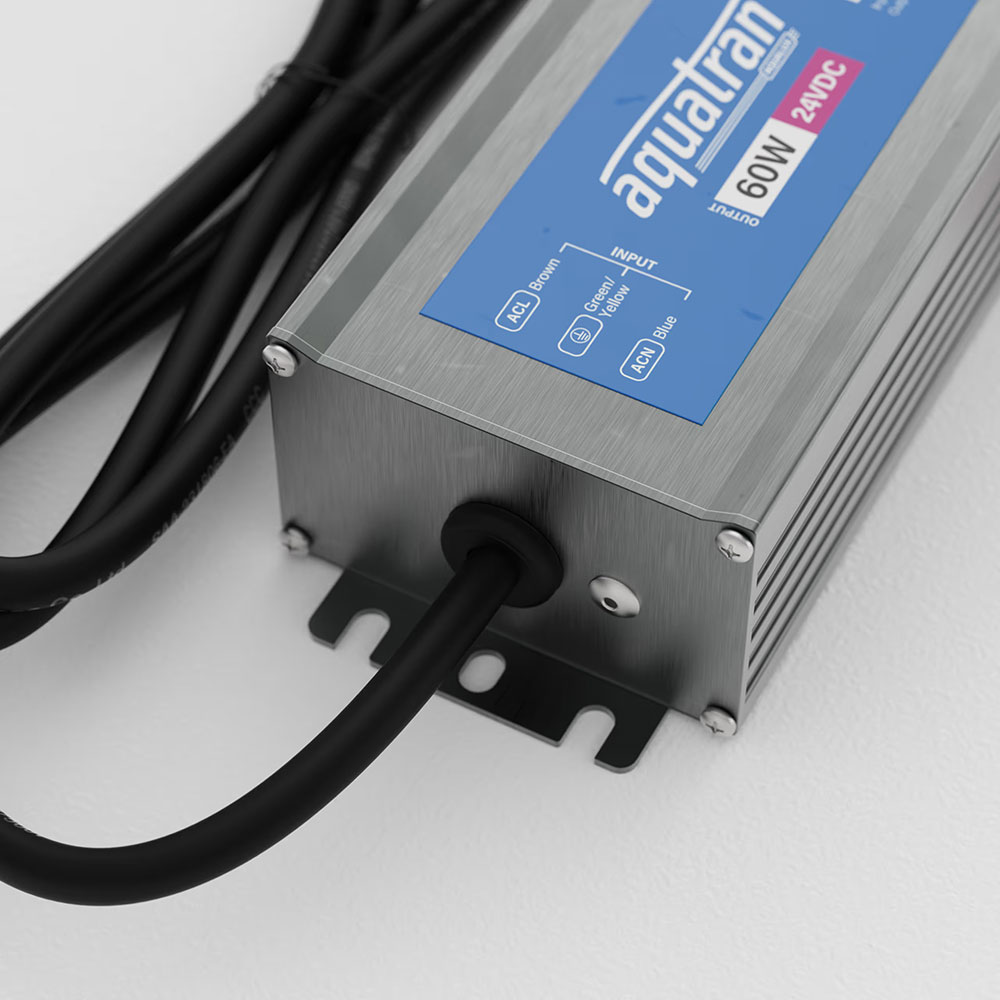

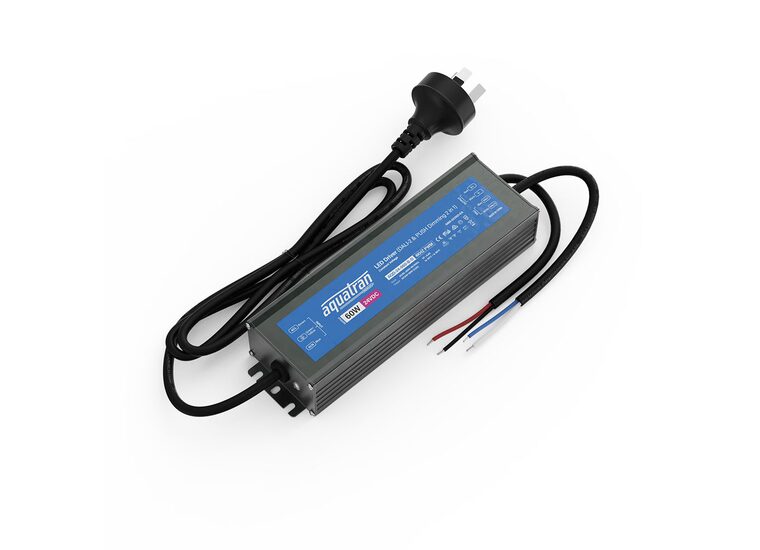

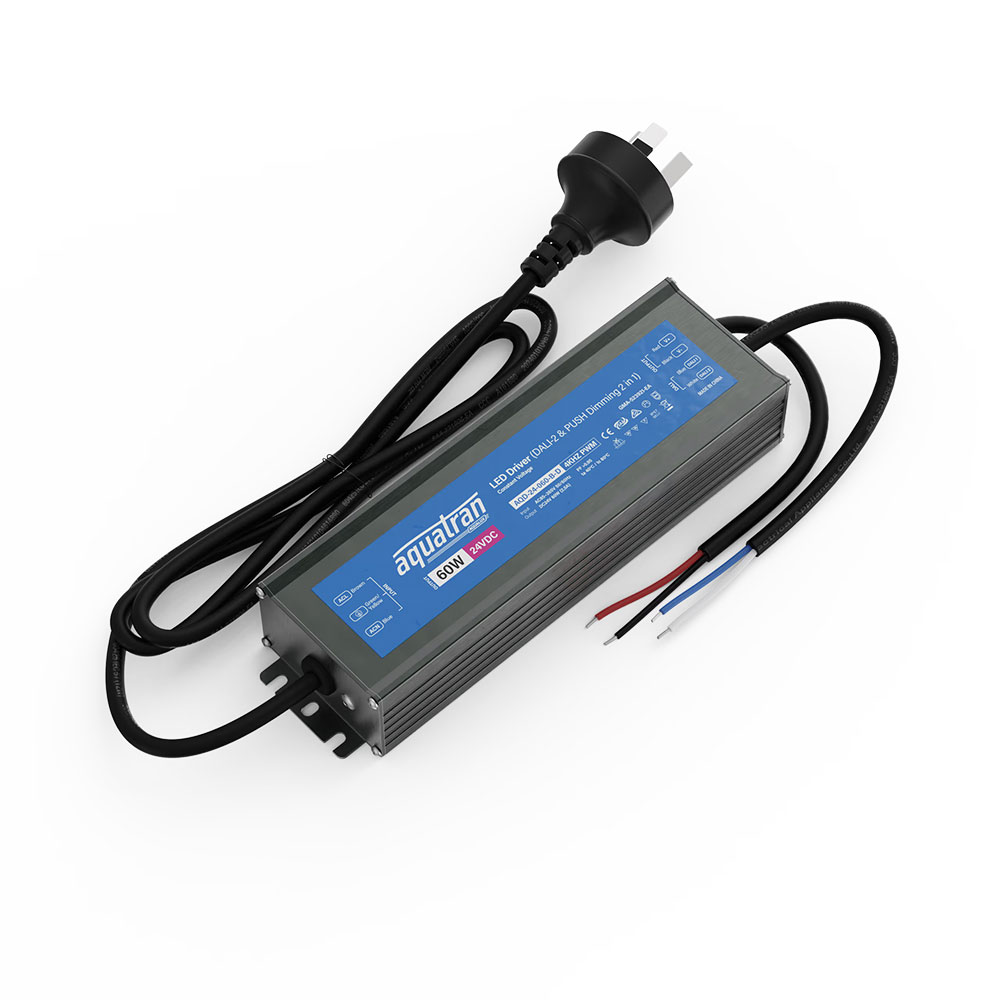

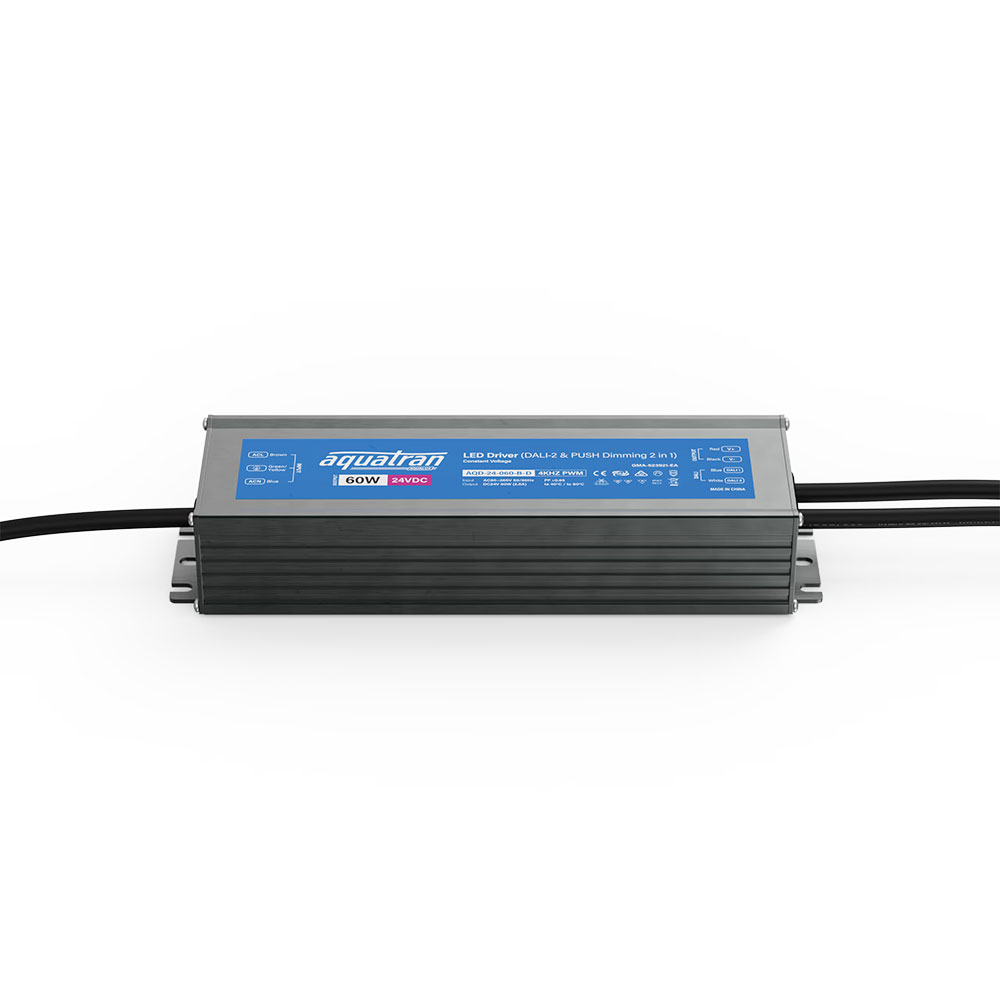

The Aquatran AQD-24-060-B-D is a 60W, 24VDC constant-voltage power supply featuring DALI-2 dimming capabilities with 4KHZ PWM output and an IP67 rating for indoor and outdoor applications.

This high-efficiency LED driver includes built-in protection against short circuits, over-current, and over-voltage to ensure reliable performance for 24VDC lighting systems.

Specifications
- Voltage: 24VDC
- Current: 2.5A
- Power: 60W
- Ripple & Noise (max): 300mv
- Channel: 1
- Voltage Tolerance: ±5%

Dimming
- Protocol: DALI2
- Output Frequency: 4kHz
- Dimming Range: 1%–100%
- Dimming Compatibility: 90%
- Minimum Output Current: N/A
- Maximum Output Current: 2.5A

Input
- Input Voltage: 85-265v
- Frequency: 50/60Hz
- Power Factor: >0.95
- THD: <15%
- Standby Power: <1W
- Current: <0.7A
- Inrush Current (Full Output Load): 14.51A
- Efficiency Full Load 110VAC: 90%
- Efficiency Full Load 230VAC: 91.00%
- Start 230VAC (milliseconds): <200
- Rise Time 230VAC (milliseconds): <150
- Hold Time 230VAC (milliseconds): <20
- Pulse Duration (T50): 618uS

Output
- Output: 24VDC
- VA: 60W
- IP: IP67

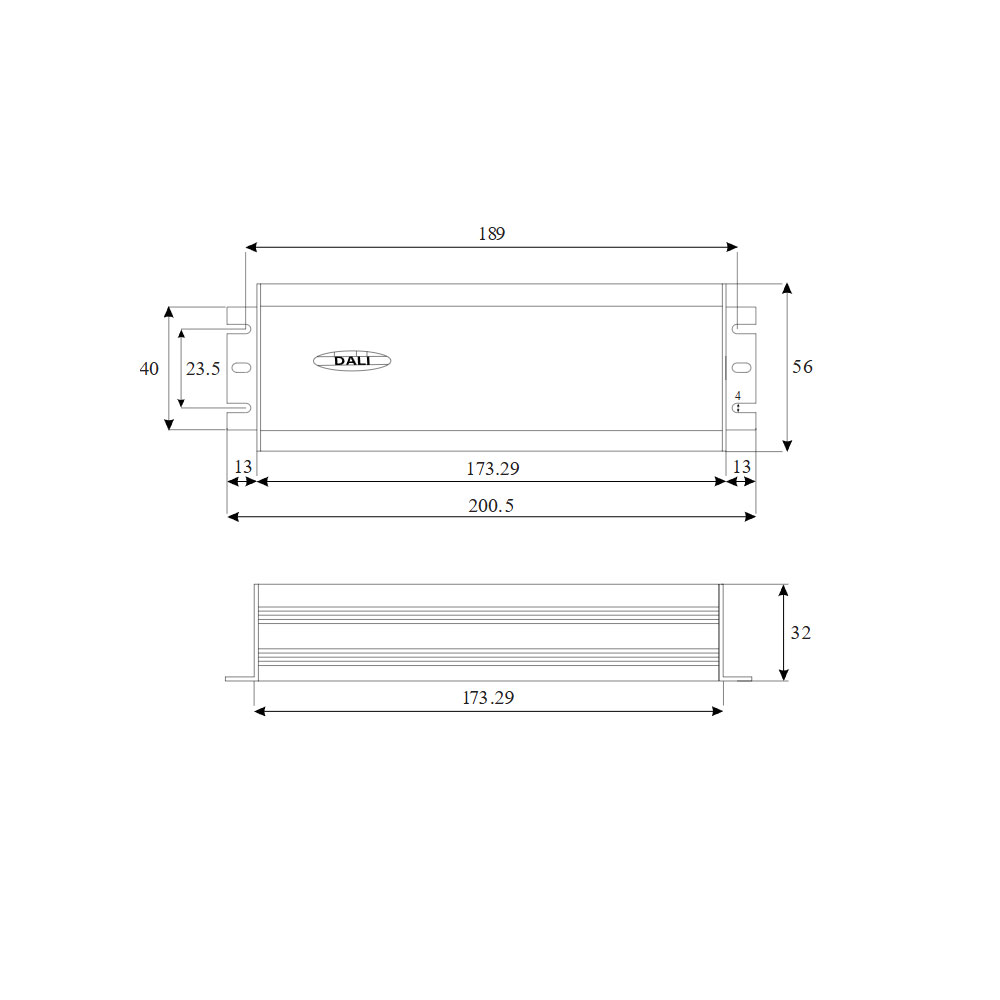

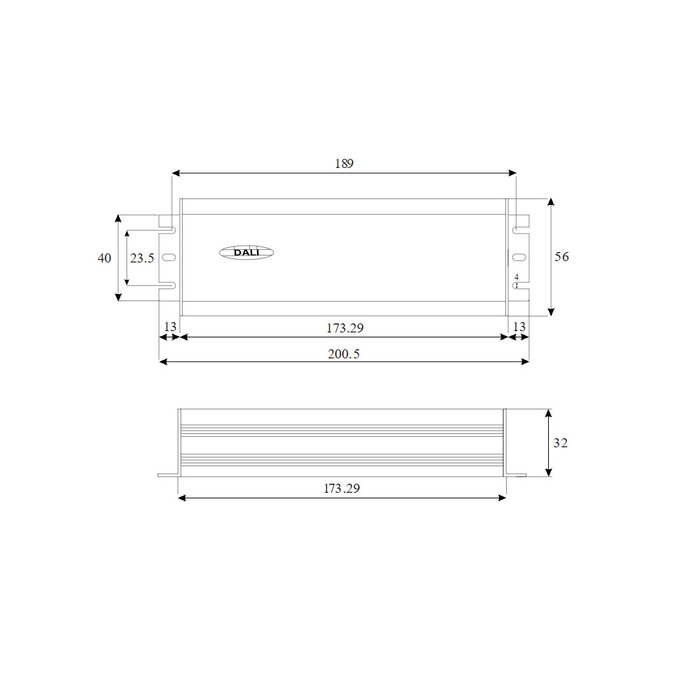

Dimensions
- 200mm x 56mm x 35mm

Click to view technical specification:
