Aquatran 30W 24VDC TRIAC IP20 4KHZ PWM Power Supply - AQD-24-030-A-T
Usually leaves our warehouse in 3-4 business days

Aquatran 30W 24VDC TRIAC IP20 4KHZ PWM Power Supply - AQD-24-030-A-T

SKU334879
Aqualux Lighting
Add to wish list Add to compare list
See the entire Aquatran Power collection
AU$0.00
Enquire Now
Description
The Aquatran AQD-24-030-A-T is a 30W, 24VDC constant-voltage power supply featuring TRIAC dimming capabilities with 4KHZ PWM output and an IP20 rating for indoor applications.

This high-efficiency LED driver includes built-in protection against short circuits, over-current, and over-voltage to ensure reliable performance for 24VDC lighting systems.

Specifications
- Voltage: 24VDC
- Current: 1.25A
- Power: 30W
- Ripple & Noise (max): 400mv
- Channel: 1
- Voltage Tolerance: ±5%

Dimming
- Protocol: Triac
- Output Frequency: 4KHz
- Dimming Ratio: 0.05%-100%
- Dimming Compatibilit: 90%
- Minimum output current: /
- Maximum output current: 1.25A

Input
- Input Voltage: 100-265v
- Frequency: 50/60Hz
- Power Factor: >0.9
- THD: <15%
- Standby Power: <3.5W
- Current: <0.38A
- Inrush Current (Full Output Load): 11.09A
- Efficiency Full Load 110VAC: 80%
- Efficiency Full Load 230VAC: 82%
- Start 230VAC (milliseconds): <1500
- Rise Time 230VAC (milliseconds): <1600
- Hold Time 230VAC (milliseconds): <20
- Pulse Duration (T50): 133uS

Output
- Output: 24VDC
- VA: 30W
- IP: IP67
- Dimming: Yes

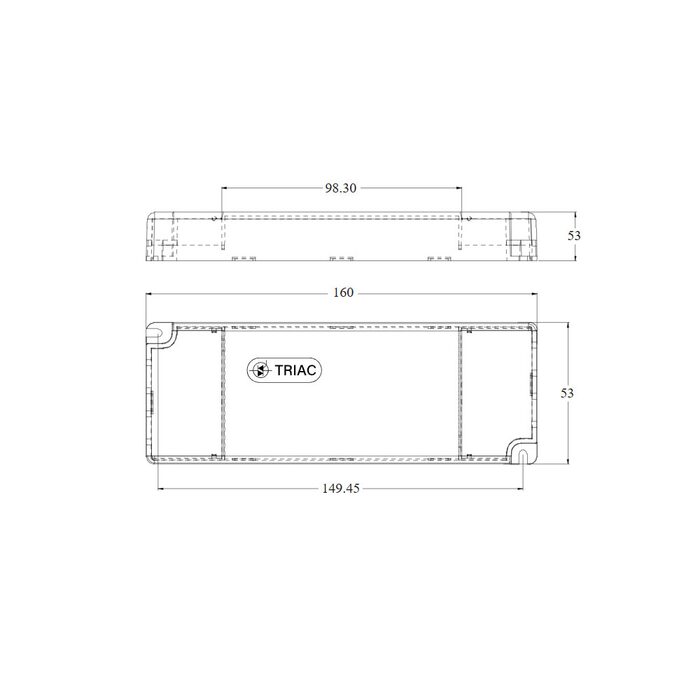

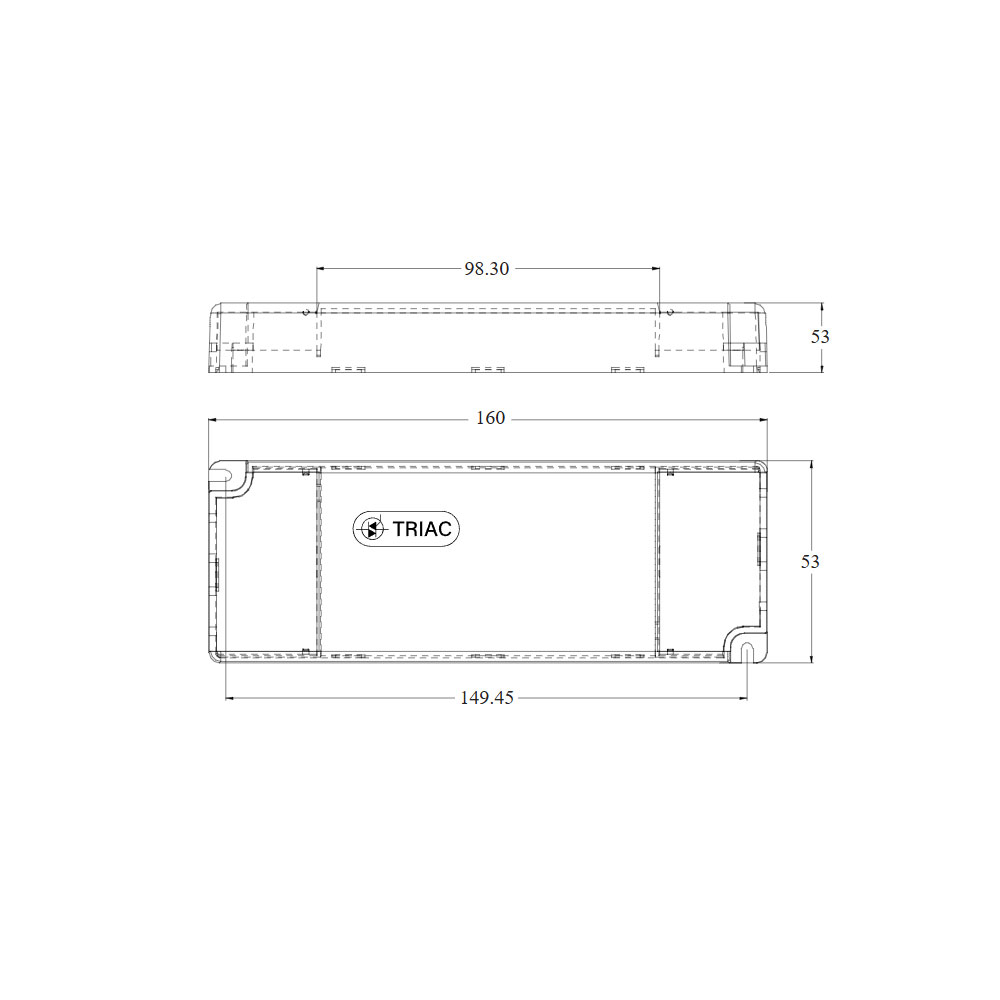

Dimensions
- 160mm x 58mm x 20mm

Click to view technical specification:
