Description

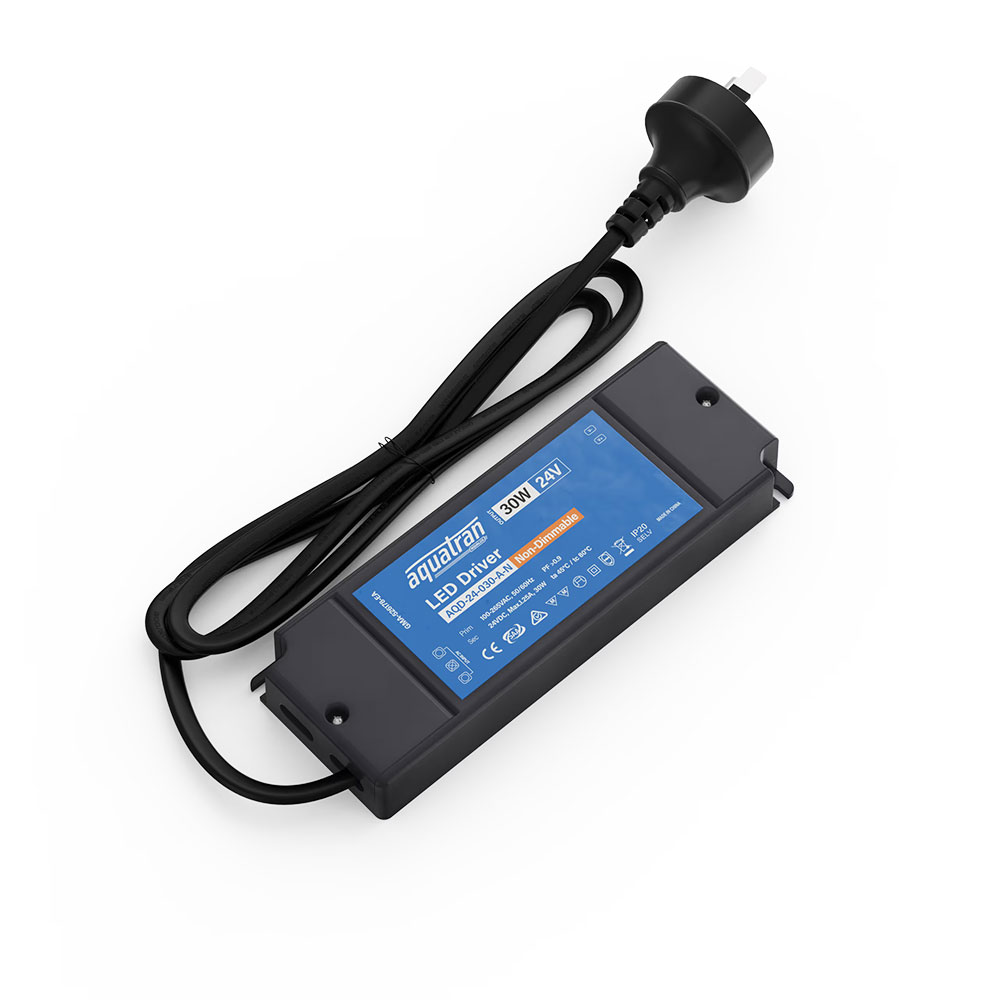

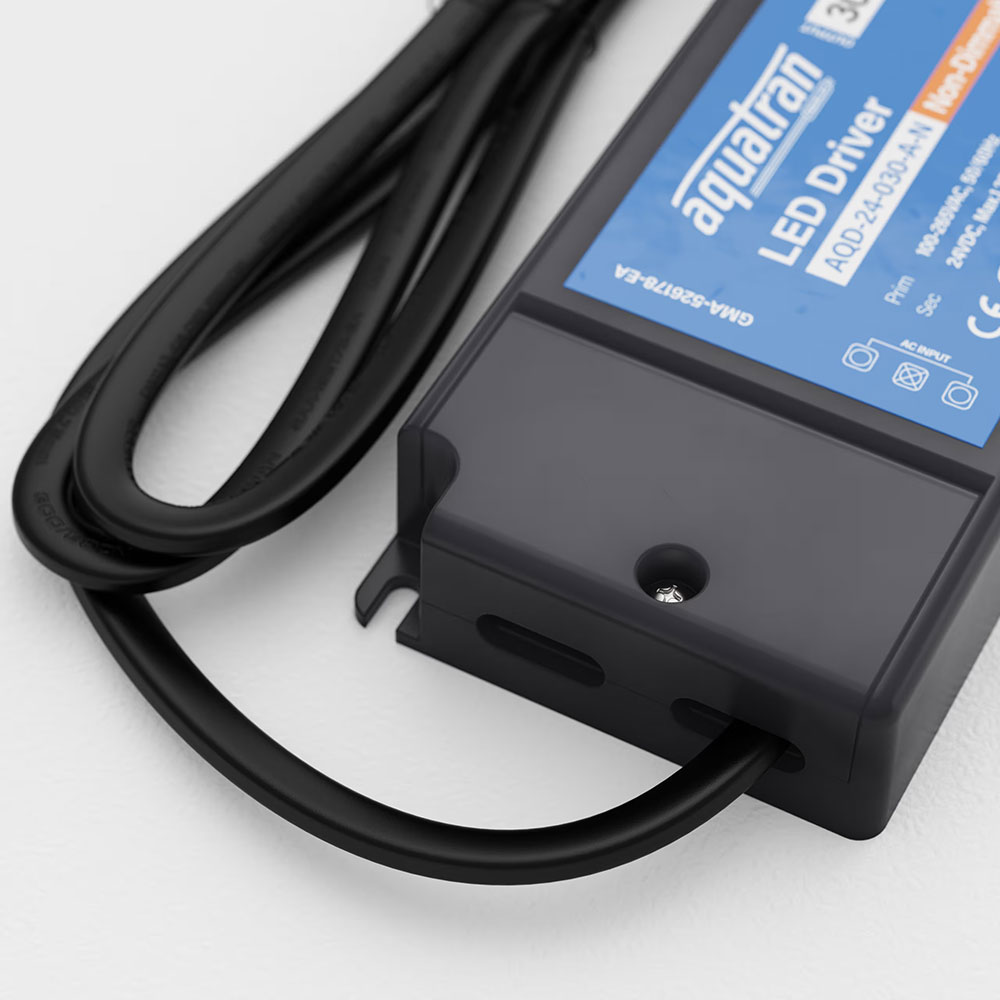

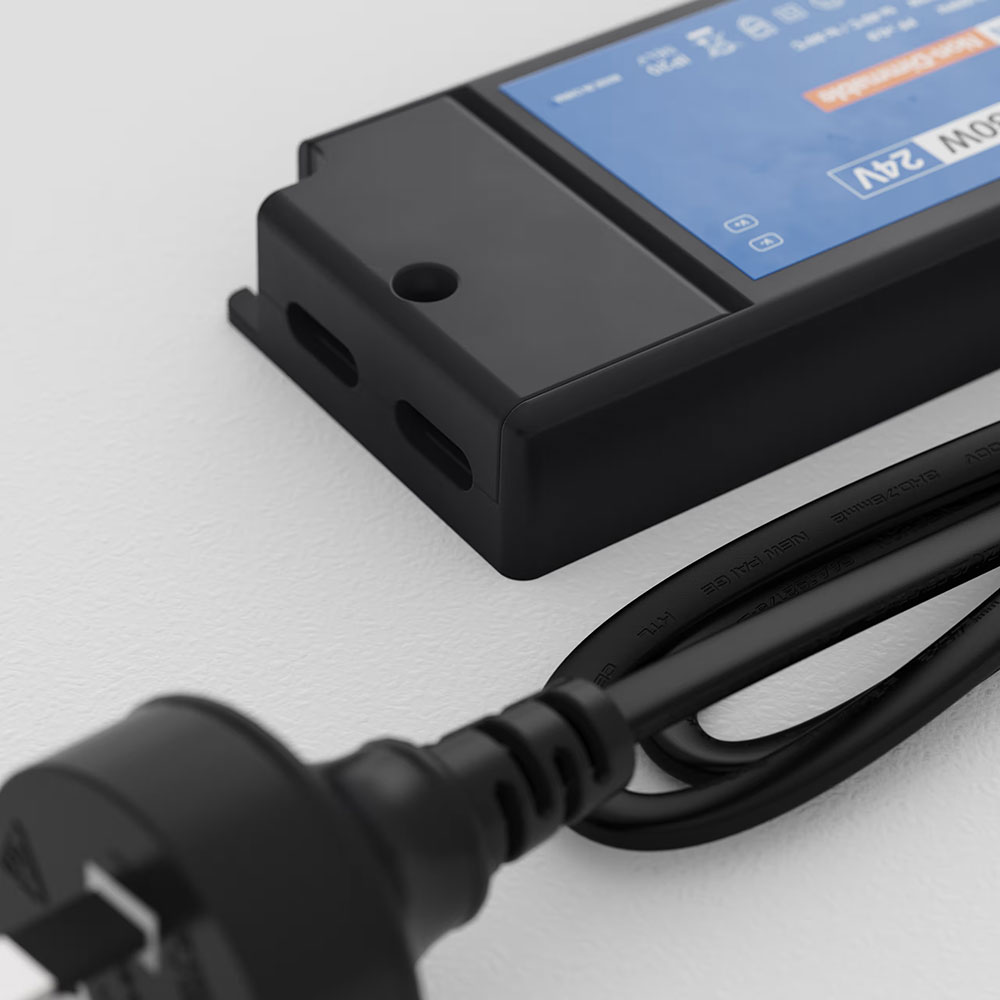

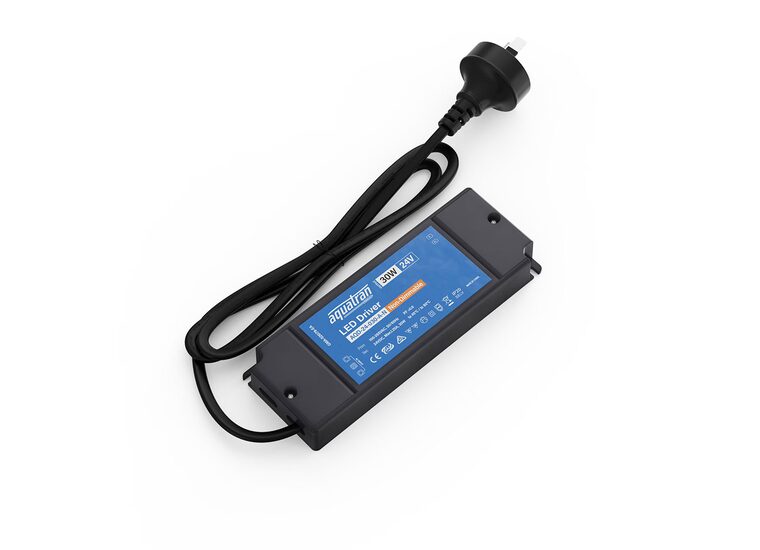

The Aquatran AQD-24-030-A-N is a 30W 24VDC constant-voltage non-dimming power supply with an IP20 rating for indoor applications.
This high-efficiency LED driver includes built-in protection against short circuits, over-current, and over-voltage to ensure reliable performance for 24VDC lighting systems.
Specifications
- Voltage: 24VDC
- Current: 1.25A
- Power: 30W
- Ripple & Noise (max): <400mv
- Channel: 1
- Voltage Tolerance: ±5%
Input
- Input Voltage: 100-265v
- Frequency: 50/60Hz
- Power Factor: >0.9
- THD: <15%
- Standby Power: <0.8W
- Current: <0.36A
- Inrush Current (Full Output Load): 14.25A
- Efficiency Full Load 110VAC: 82%
- Efficiency Full Load 230VAC: 84%
- Start 230VAC (milliseconds): <1000
- Rise Time 230VAC (milliseconds): <1000
- Hold Time 230VAC (milliseconds): >20
- Pulse Duration (T50): 185uS
Output
- Output: 24VDC
- VA: 30W
- IP: IP20
- Dimming: Non-Dimmable

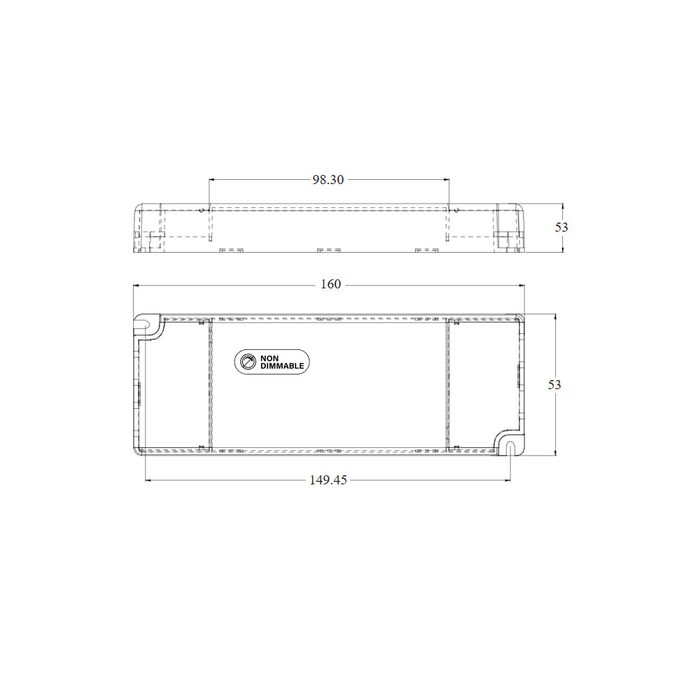

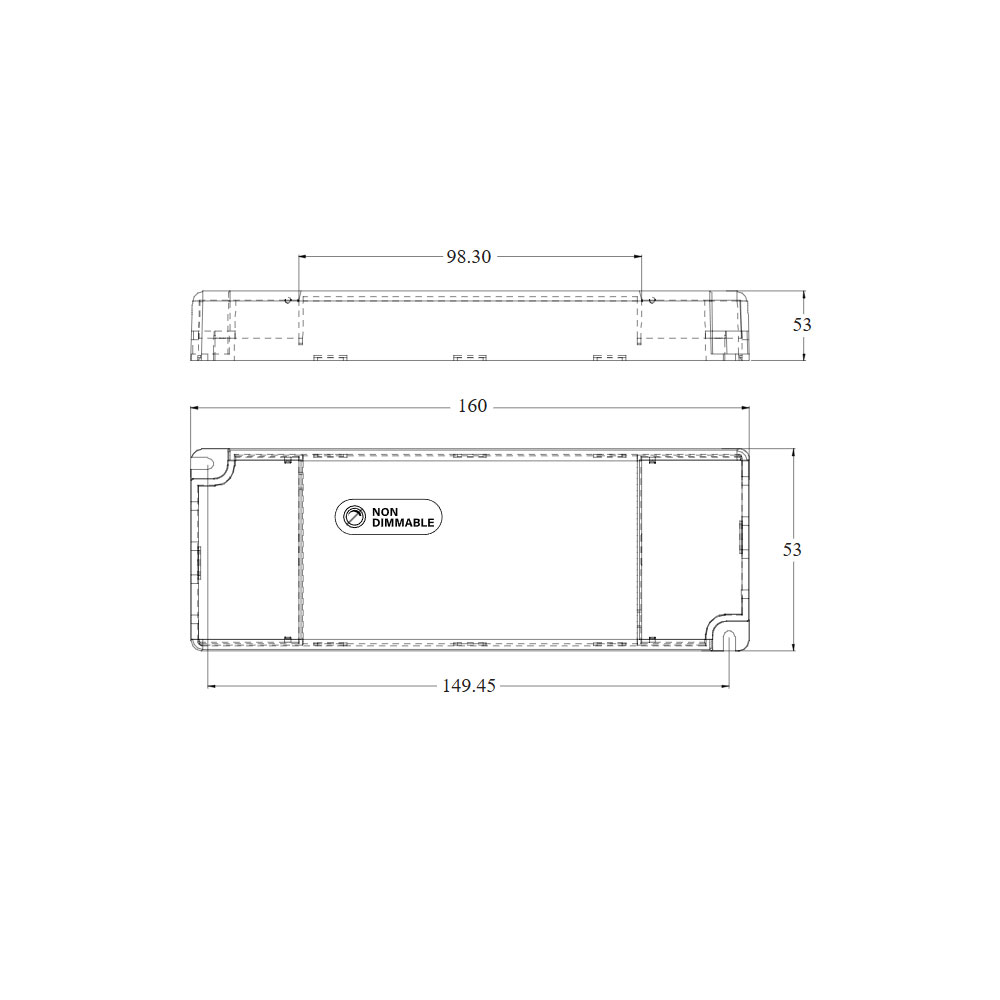

Dimensions
- 160mm x 58mm x 20mm
This high-efficiency LED driver includes built-in protection against short circuits, over-current, and over-voltage to ensure reliable performance for 24VDC lighting systems.
Specifications
- Voltage: 24VDC
- Current: 1.25A
- Power: 30W
- Ripple & Noise (max): <400mv
- Channel: 1
- Voltage Tolerance: ±5%
Input
- Input Voltage: 100-265v
- Frequency: 50/60Hz
- Power Factor: >0.9
- THD: <15%
- Standby Power: <0.8W
- Current: <0.36A
- Inrush Current (Full Output Load): 14.25A
- Efficiency Full Load 110VAC: 82%
- Efficiency Full Load 230VAC: 84%
- Start 230VAC (milliseconds): <1000
- Rise Time 230VAC (milliseconds): <1000
- Hold Time 230VAC (milliseconds): >20
- Pulse Duration (T50): 185uS
Output
- Output: 24VDC
- VA: 30W
- IP: IP20
- Dimming: Non-Dimmable
Dimensions
- 160mm x 58mm x 20mm
