Aquatran 30W 24VDC DALI-2 IP20 4KHZ PWM Power Supply - AQD-24-030-A-D
Usually leaves our warehouse in 3-4 business days

Aquatran 30W 24VDC DALI-2 IP20 4KHZ PWM Power Supply - AQD-24-030-A-D

SKU334887
Aqualux Lighting
Add to wish list Add to compare list
See the entire Aquatran Power collection
RRP: AU$149.00
AU$121.95
(You save: AU$27.05 from RRP)
Enquire Now
Description
The Aquatran AQD-24-030-A-D is a 30W, 24VDC constant-voltage power supply featuring DALI-2 dimming capabilities with 4KHZ PWM output and an IP20 rating for indoor applications.

This high-efficiency LED driver includes built-in protection against short circuits, over-current, and over-voltage to ensure reliable performance for 24VDC lighting systems.

Specifications
- Voltage: 24VDC
- Current: 1.25A
- Power: 30W
- Ripple & Noise (max): <400mv
- Channel: 1
- Voltage Tolerance: ±5%

Dimming
- Protocol: DALI2
- Output Frequency: 4kHz
- Dimming Range: 1%–100%
- Dimming Compatibility: 90%
- Minimum Output Current: N/A
- Maximum Output Current: 1.25A

Input
- Input Voltage: 100-265v
- Frequency: 50/60Hz
- Power Factor: >0.95
- THD: <15%
- Standby Power: <0.8W
- Current: <0.36A
- Inrush Current (Full Output Load): 17.94A
- Efficiency Full Load 110VAC: 82%
- Efficiency Full Load 230VAC: 84%
- Start 230VAC (milliseconds): <200
- Rise Time 230VAC (milliseconds): <200
- Hold Time 230VAC (milliseconds): >200
- Pulse Duration (T50): 400uS

Output
- Output: 24VDC
- VA: 30W
- IP: IP20

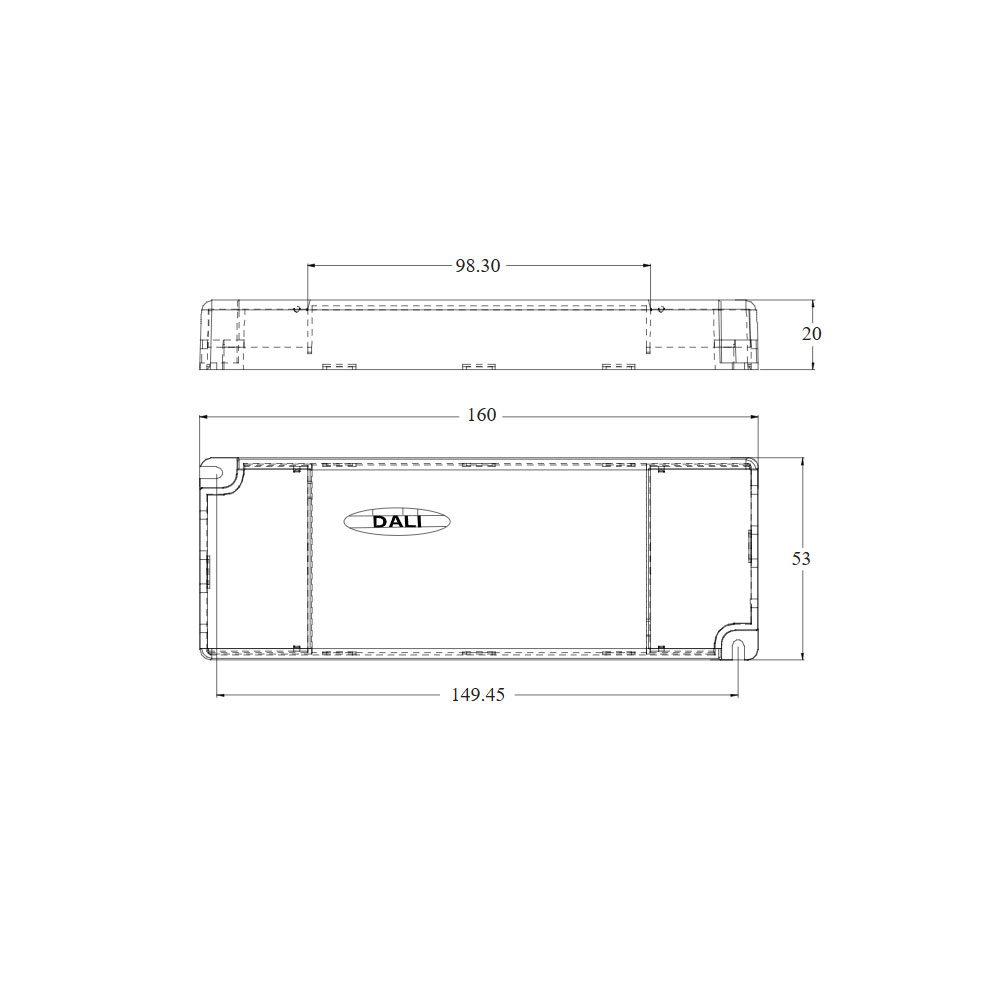

Dimensions
- 160mm x 58mm x 20mm

Click to view technical specification:
