Aquatran 150W 24VDC TRIAC IP67 4KHZ PWM Power Supply - AQD-24-150-B-T
Usually leaves our warehouse in 3-4 business days

Aquatran 150W 24VDC TRIAC IP67 4KHZ PWM Power Supply - AQD-24-150-B-T

SKU334782
Aqualux Lighting
Add to wish list Add to compare list
See the entire Aquatran Power collection
RRP: AU$319.95
AU$287.95
(You save: AU$32.00 from RRP)
Enquire Now
Description

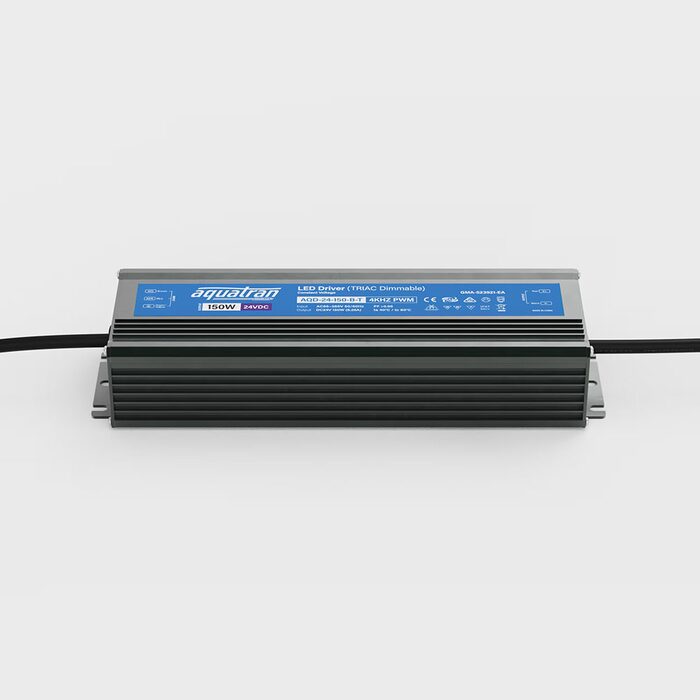

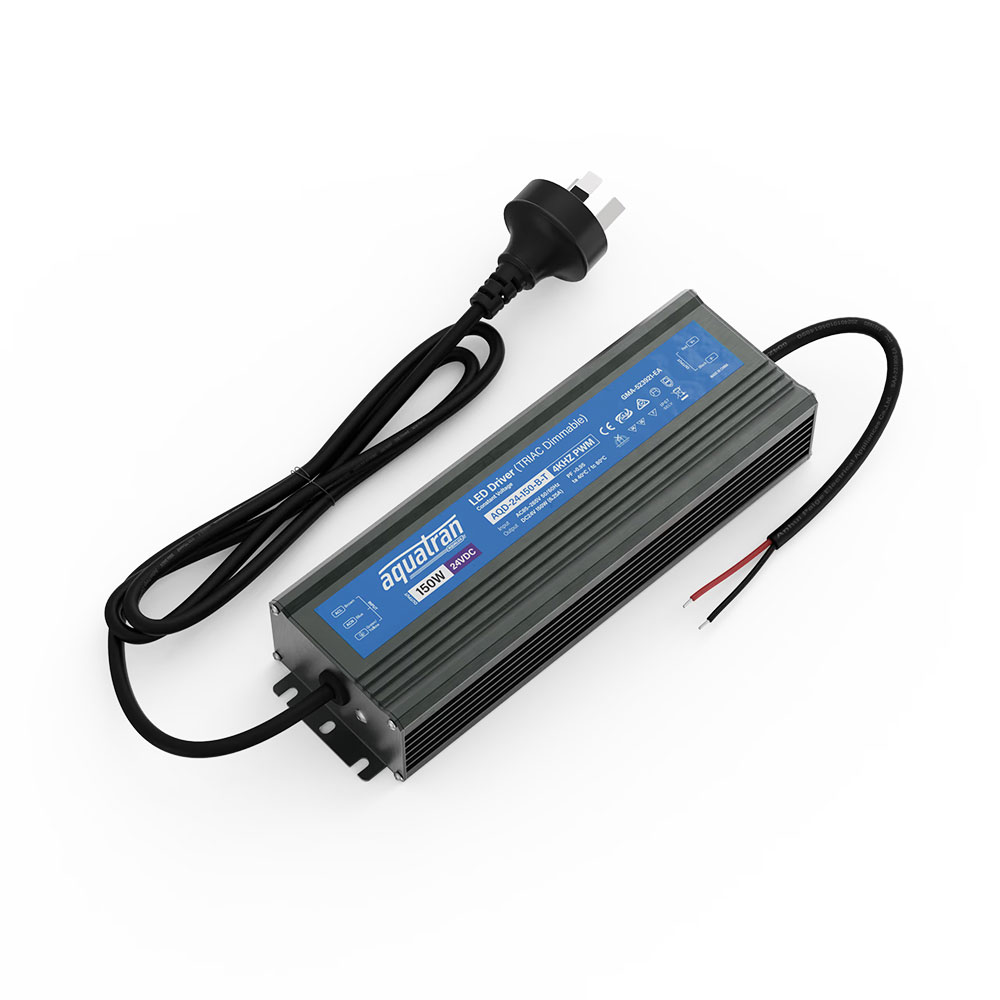

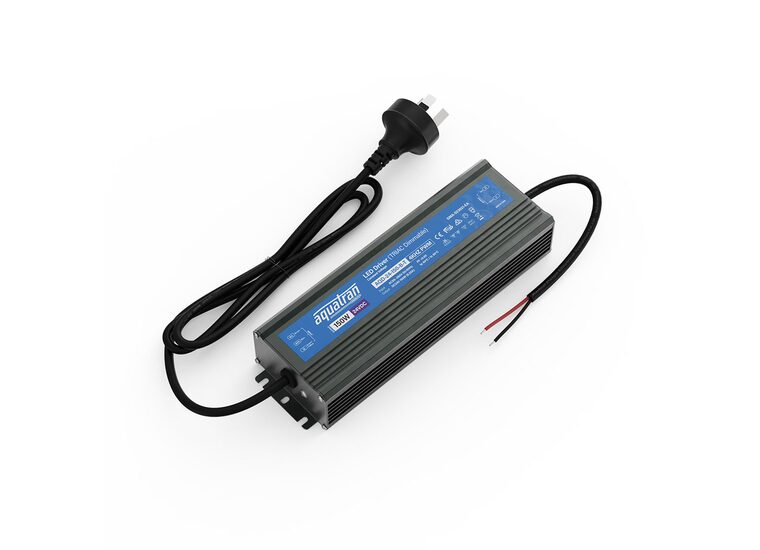

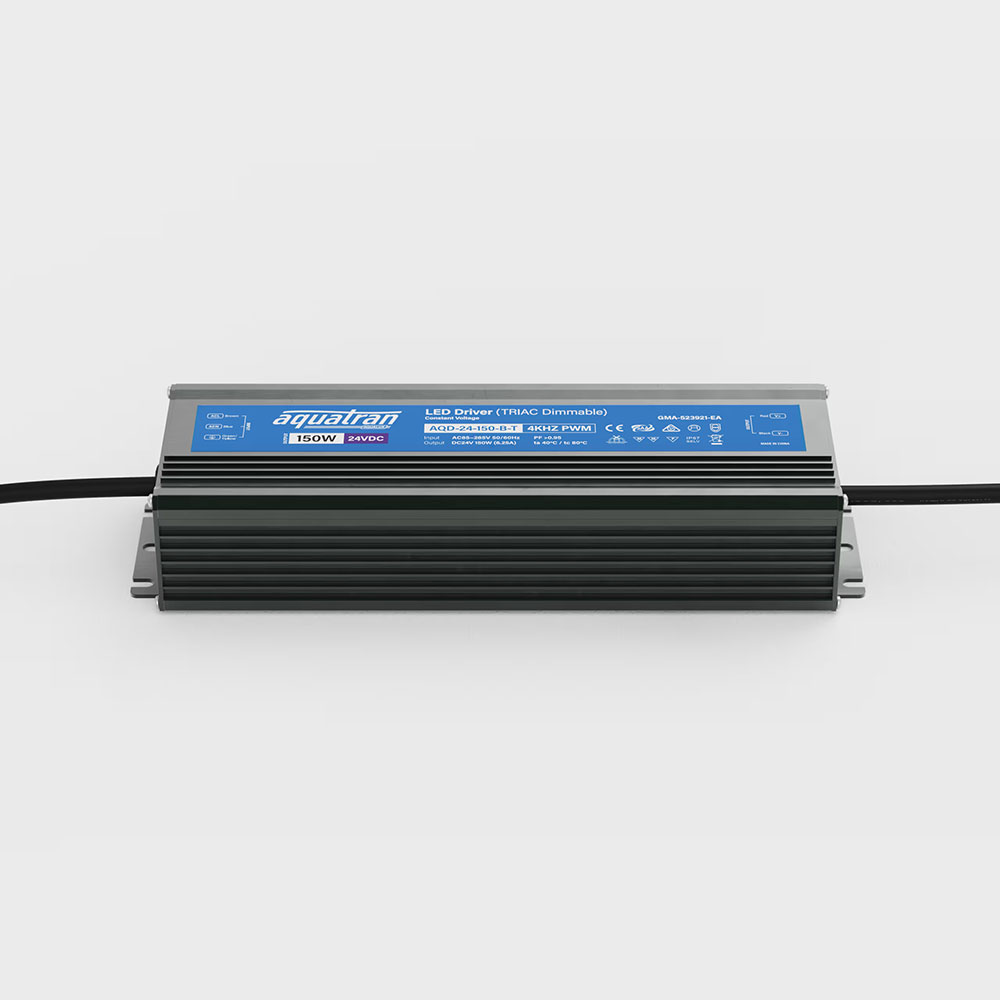

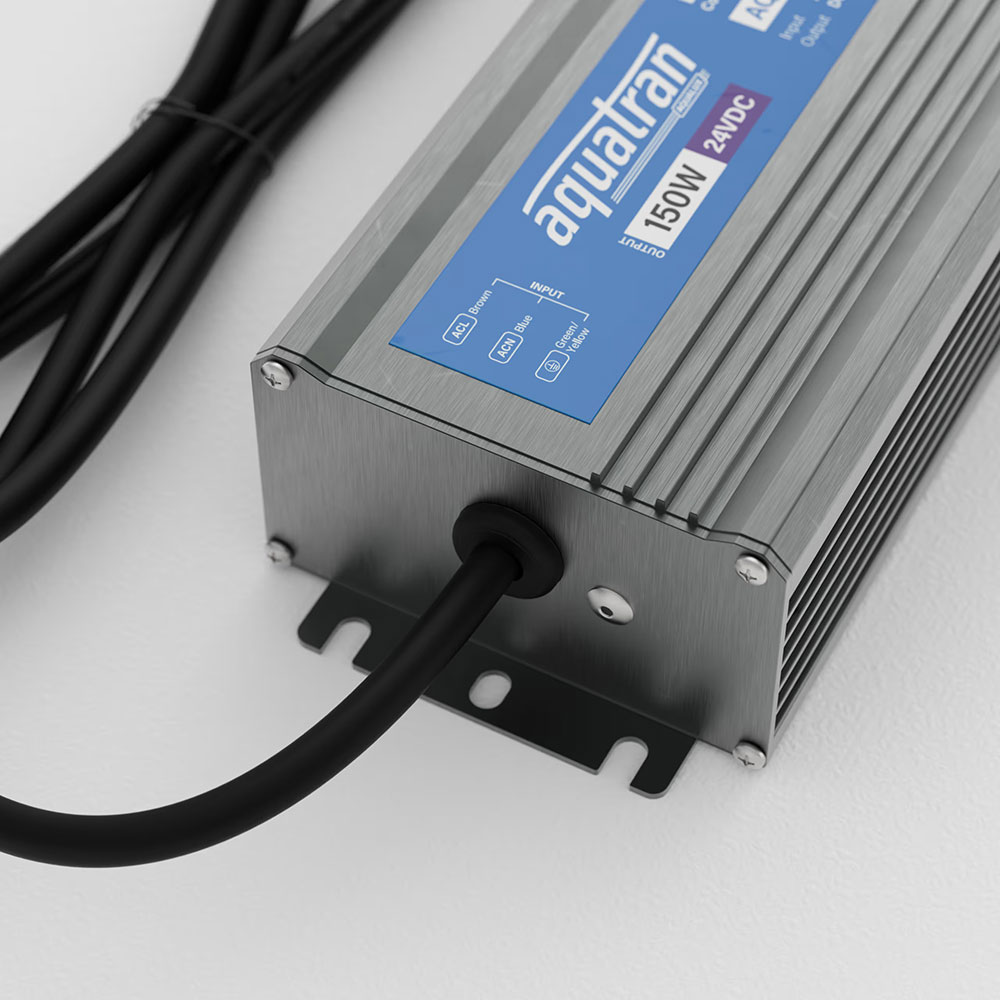

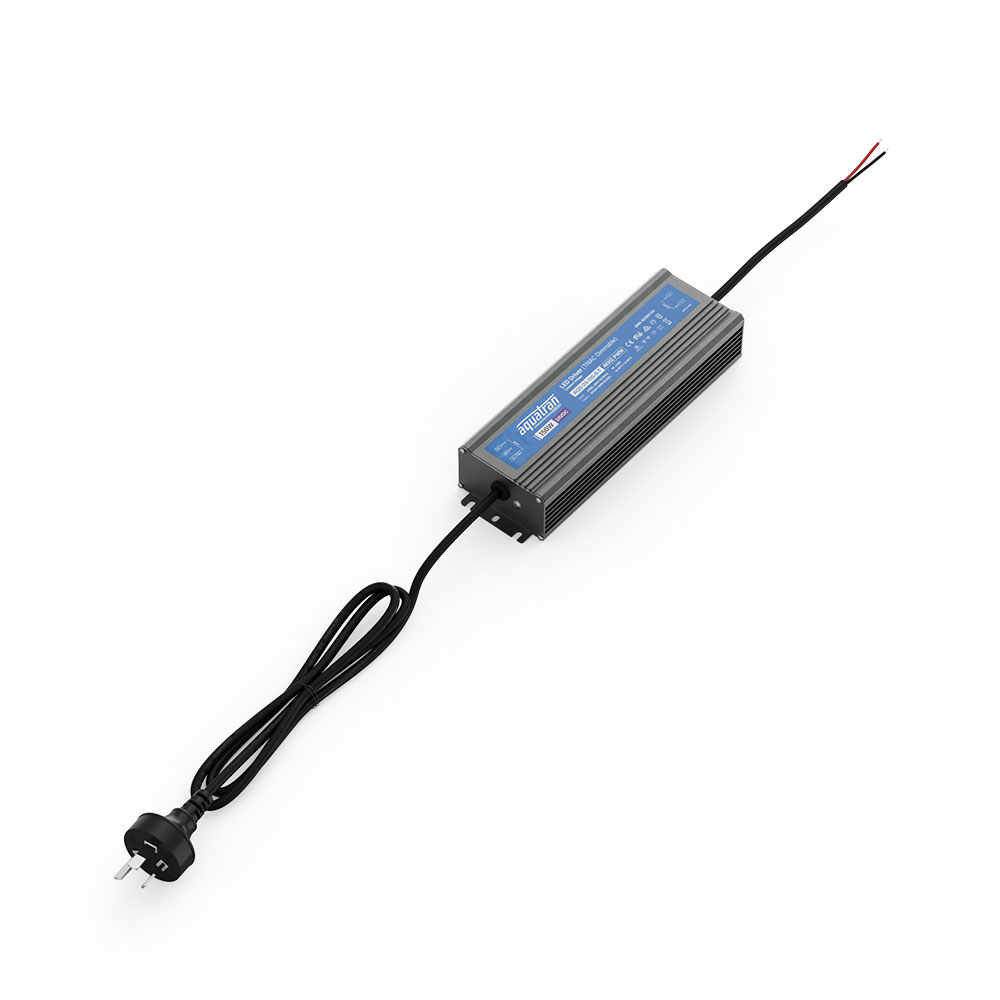

The Aquatran AQD-24-150-B-T is a 150W, 24VDC constant-voltage power supply featuring TRIAC dimming capabilities with 4KHZ PWM output and an IP67 rating for indoor and outdoor applications.

This high-efficiency LED driver includes built-in protection against short circuits, over-current, and over-voltage to ensure reliable performance for 24VDC lighting systems.

Specifications
- Voltage: 24VDC
- Current: 6.25A
- Power: 150W
- Ripple & Noise (max): 300mv
- Channel: 1
- Voltage Tolerance: ±5%

Dimming
- Protocol: Triac
- Output Frequency: 4KHz
- Dimming Ratio: 0.05%-100%
- Dimming Compatibilit: 90%
- Minimum output current: /
- Maximum output current: 6.25A

Input
- Input Voltage: 85-265v
- Frequency: 50/60Hz
- Power Factor: >0.95
- THD: <10%
- Standby Power: <3.3W
- Current: <0.7A
- Inrush Current (Full Output Load): 14.22A
- Efficiency Full Load 110VAC: 90%
- Efficiency Full Load 230VAC: 91%
- Start 230VAC (milliseconds): <200
- Rise Time 230VAC (milliseconds): <300
- Hold Time 230VAC (milliseconds): <20
- Pulse Duration (T50): 258uS

Output
- Output: 24VDC
- VA: 150W
- IP: IP67
- Dimming: Yes

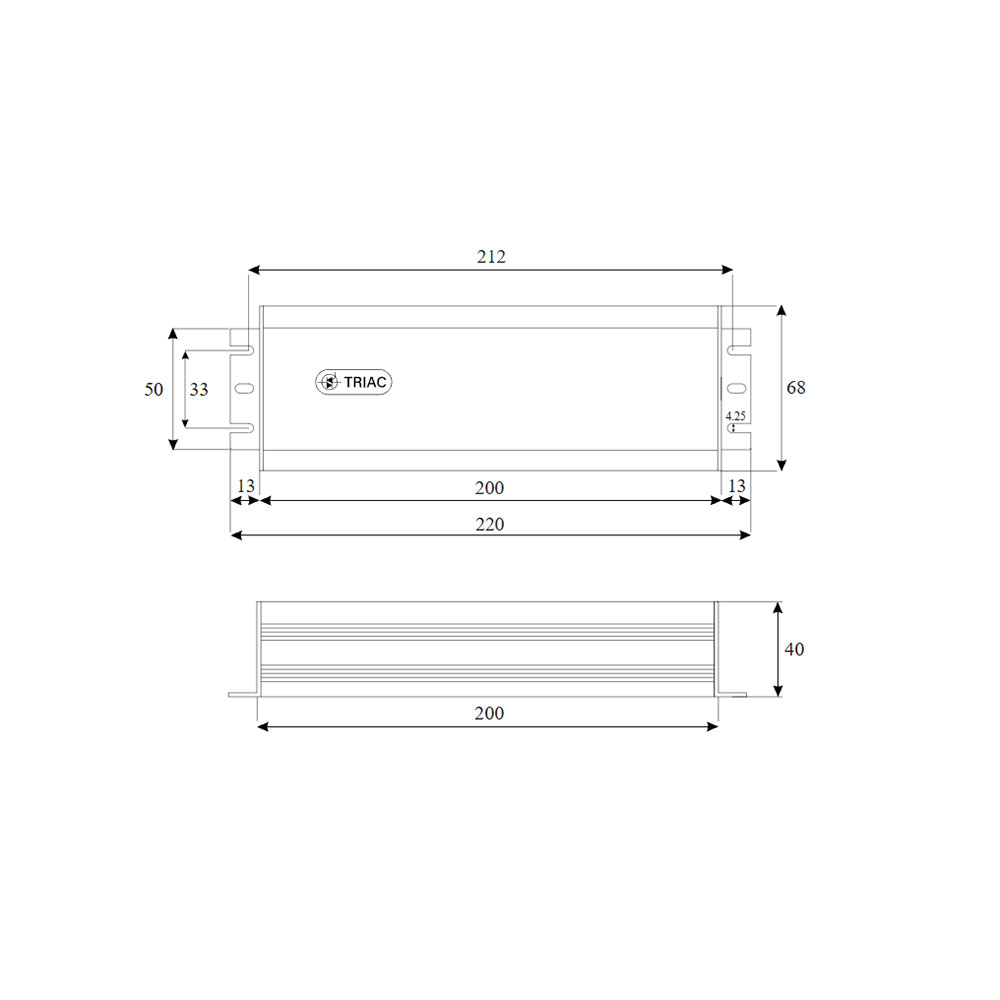

Dimensions
- 221mm x 68mm x 39mm

Click to view technical specification:
