Description

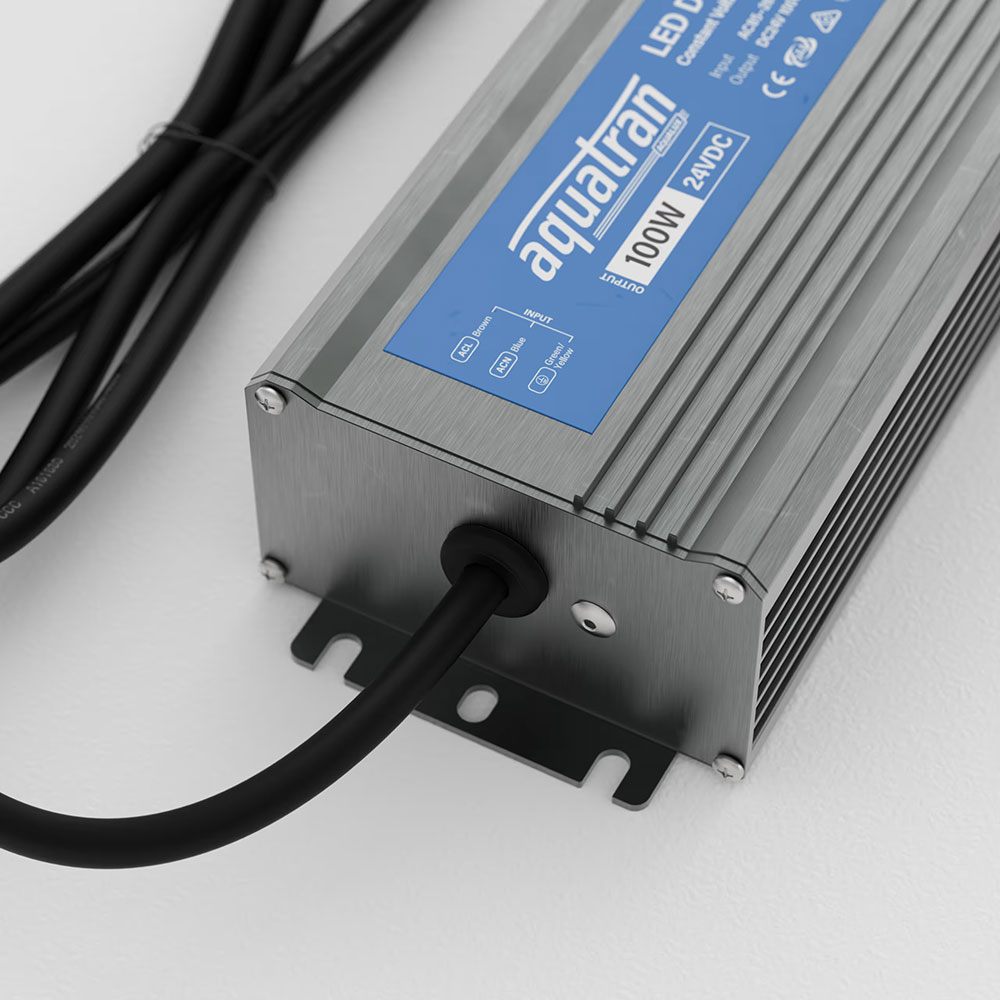

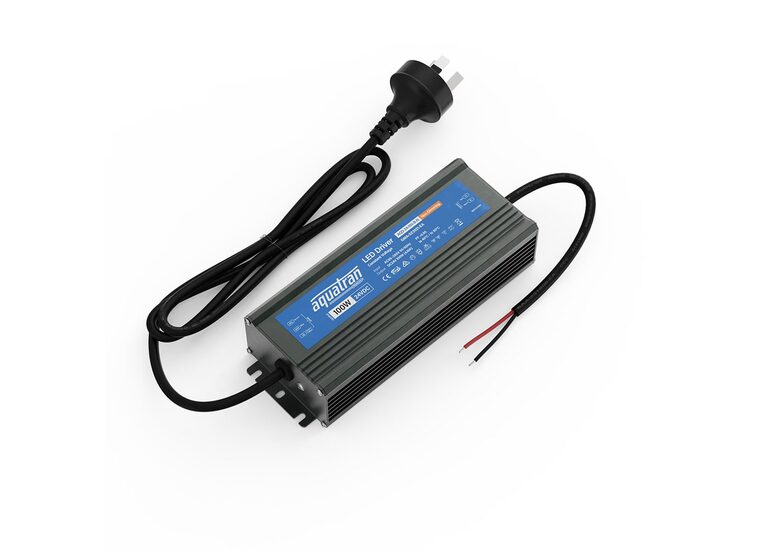

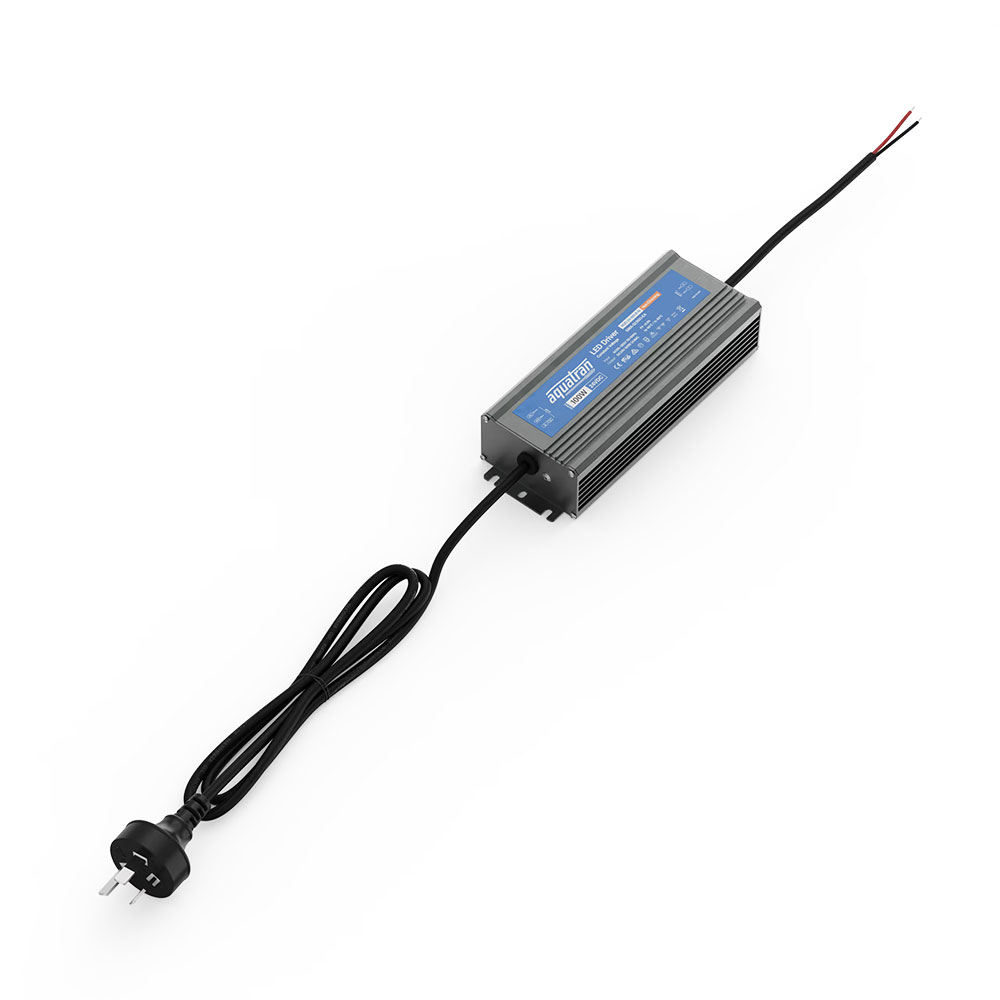

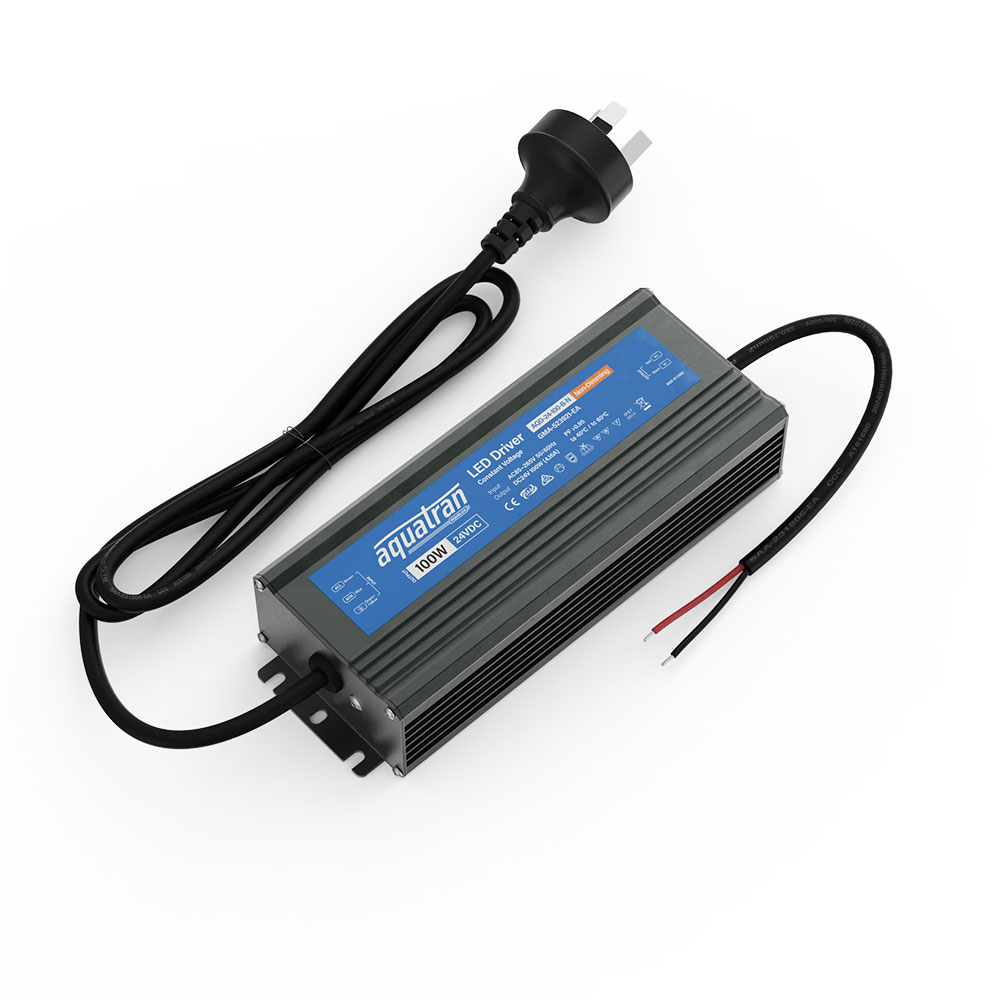

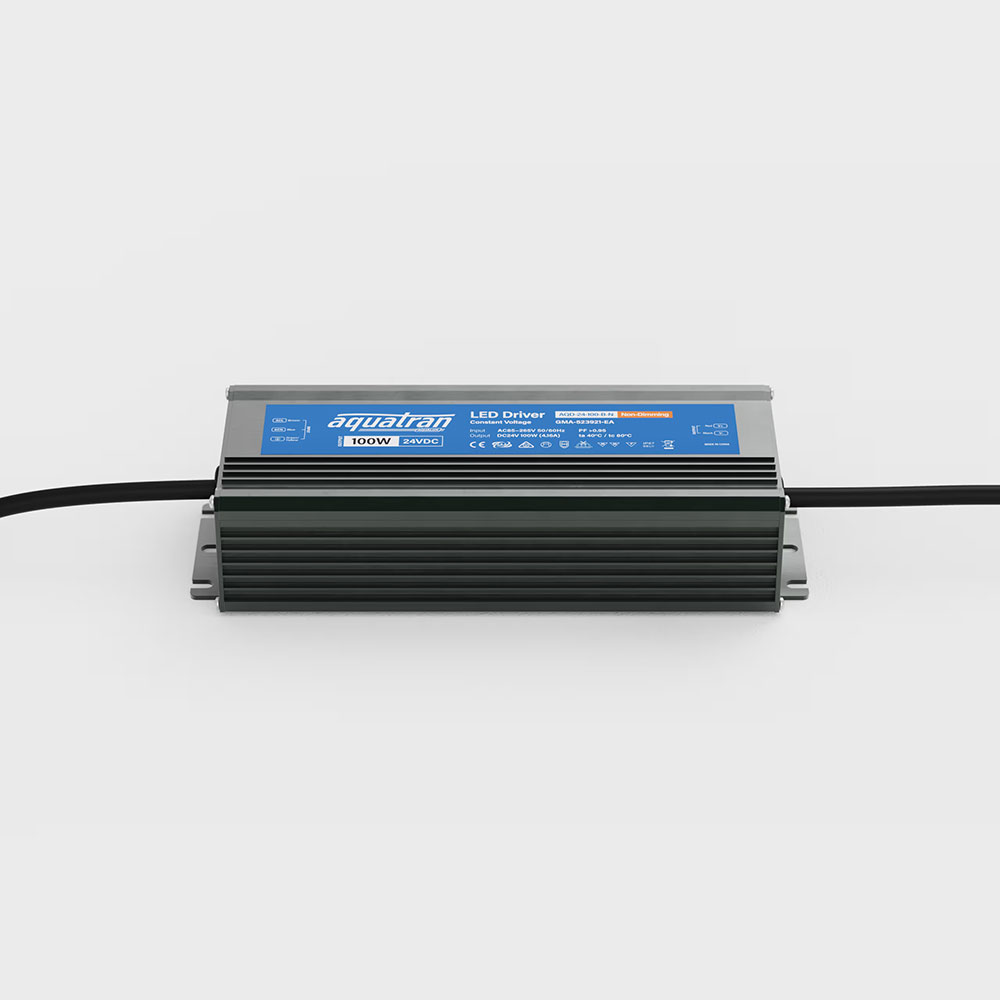

The Aquatran AQD-24-100-B-N is a 100W 24VDC constant-voltage non-dimming power supply with an IP67 rating for indoor and outdoor applications.
This high-efficiency LED driver includes built-in protection against short circuits, over-current, and over-voltage to ensure reliable performance for 24VDC lighting systems.
Specifications
- Voltage: 24VDC
- Current: 4.16A
- Power: 100W
- Ripple & Noise (max): 400mv
- Channel: 1
- Voltage Tolerance: ±5%
Input
- Input Voltage: 85-265v
- Frequency: 50/60Hz
- Power Factor: >0.95
- THD: <15%
- Standby Power: <1.5W
- Current: <1.1A
- Inrush Current (Full Output Load): 15.89A
- Efficiency Full Load 110VAC: 89%
- Efficiency Full Load 230VAC: 91%
- Start 230VAC (milliseconds): <500
- Rise Time 230VAC (milliseconds): <500
- Hold Time 230VAC (milliseconds): <20
- Pulse Duration (T50): 960uS
Output
- Output: 24VDC
- VA: 100W
- IP: IP67
- Dimming: Non-dimmable

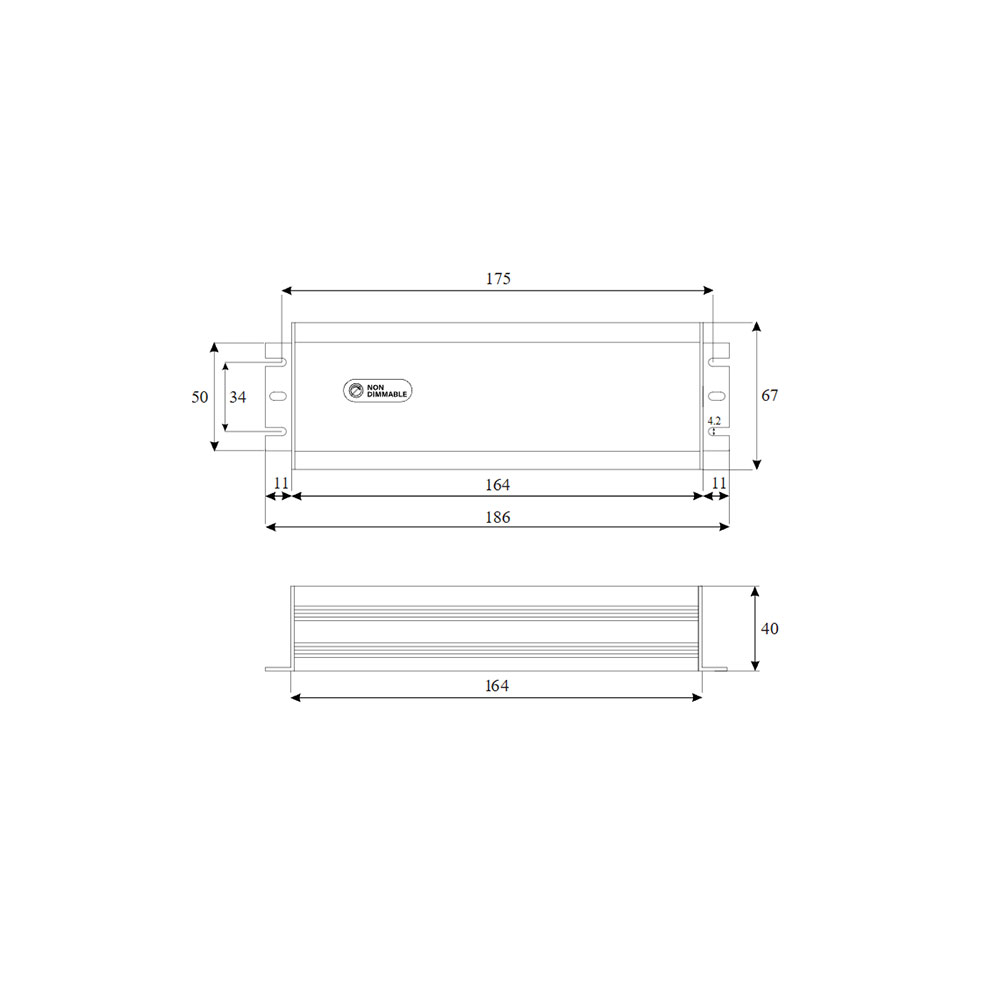

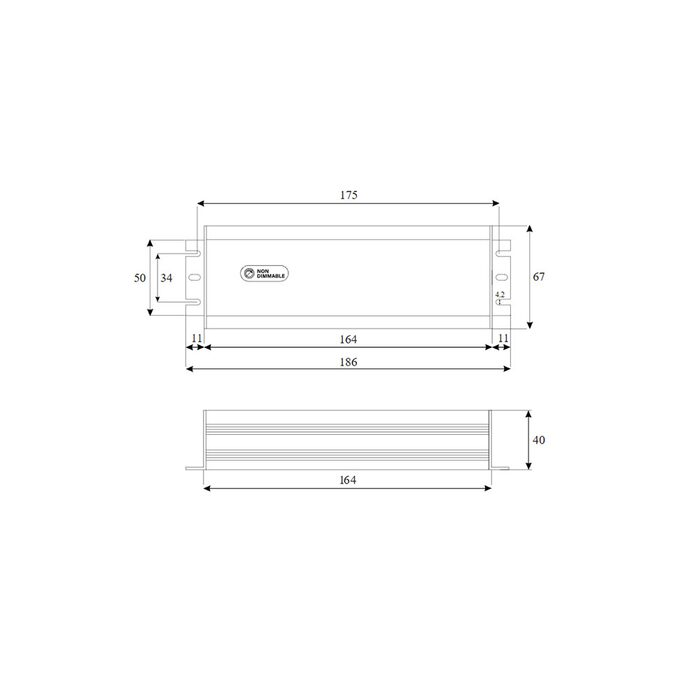

Dimensions
- 186mm x 68mm x 39mm
Click to view technical specification:
