Description

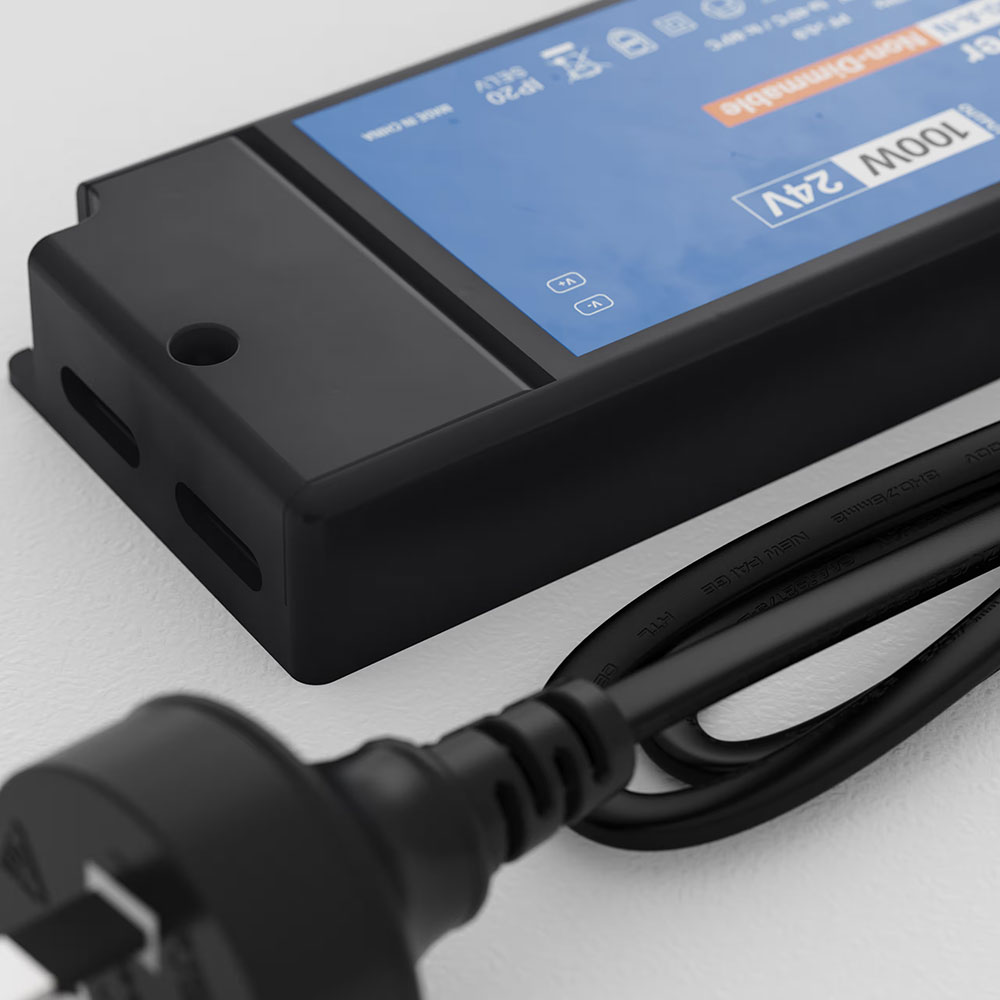

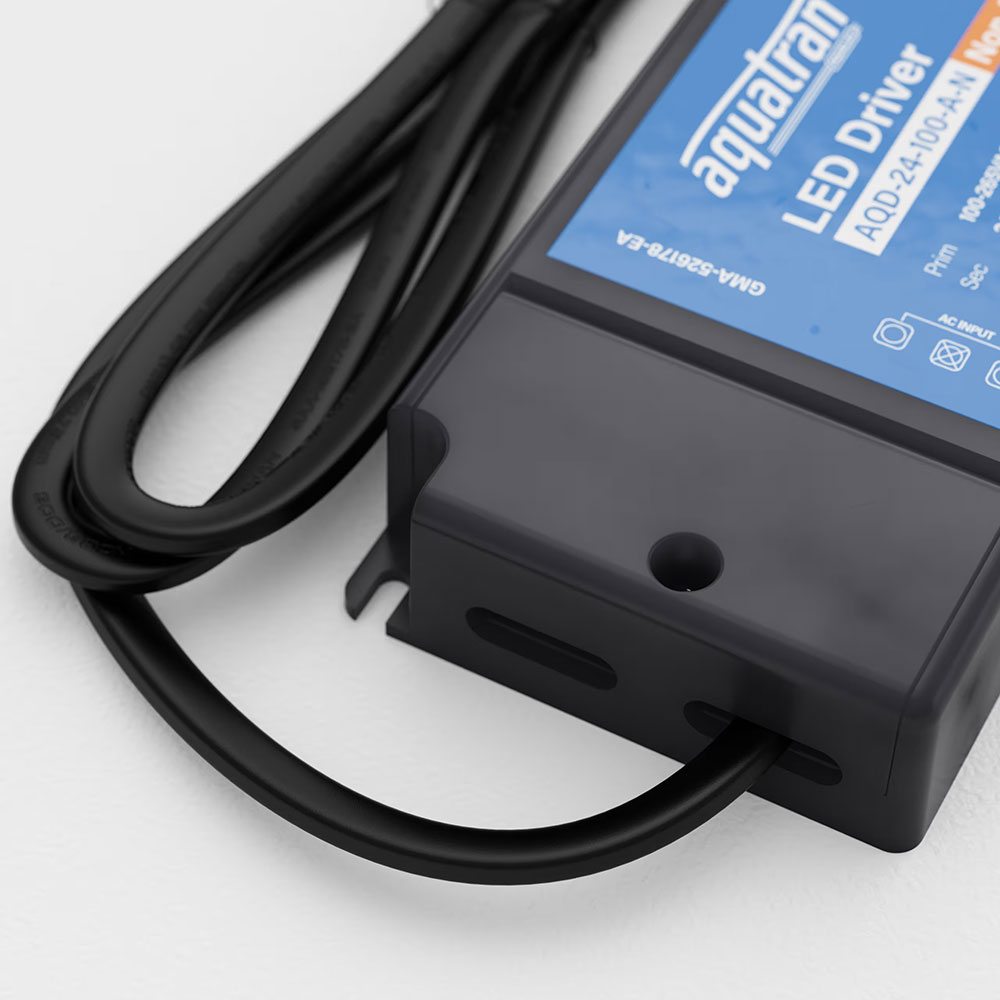

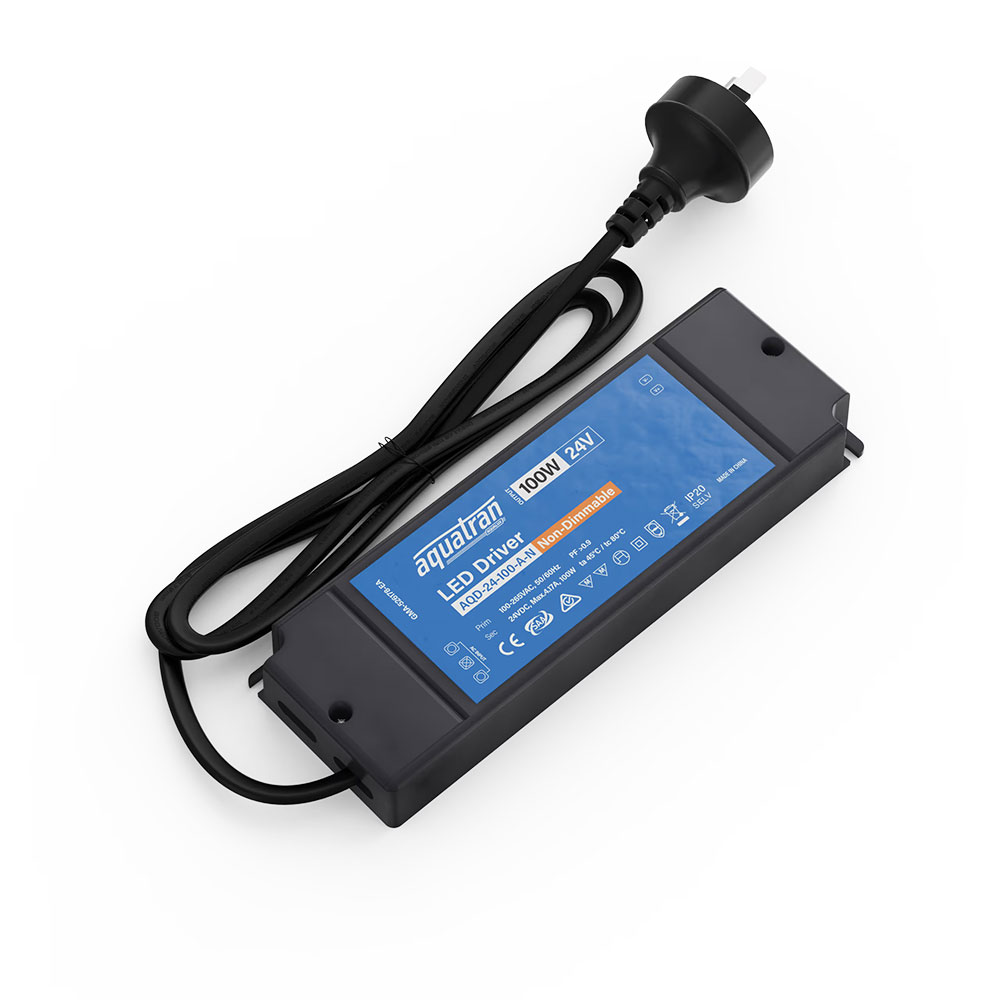

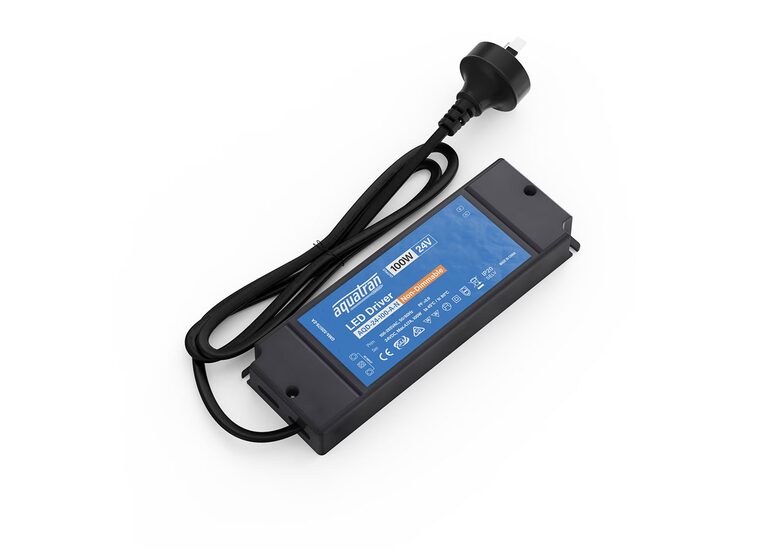

The Aquatran AQD-24-100-A-N is a 10W 024VDC constant-voltage non-dimming power supply with an IP20 rating for indoor applications.
This high-efficiency LED driver includes built-in protection against short circuits, over-current, and over-voltage to ensure reliable performance for 24VDC lighting systems.
Specifications
- Voltage: 24VDC
- Current: 4.16A
- Power: 100W
- Ripple & Noise (max): <400mv
- Channel: 1
- Voltage Tolerance: ±5%
Input
- Input Voltage: 100-265v
- Frequency: 50/60Hz
- Power Factor: >0.9
- THD: <15%
- Standby Power: <1.5W
- Current: <1.2A
- Inrush Current (Full Output Load): 17.71A
- Efficiency Full Load 110VAC: 90%
- Efficiency Full Load 230VAC: 92%
- Start 230VAC (milliseconds): <500
- Rise Time 230VAC (milliseconds): <500
- Hold Time 230VAC (milliseconds): >20
- Pulse Duration (T50): 292uS
Output
- Output: 24VDC
- VA: 100W
- IP: IP20
- Dimming: Non-Dimmable

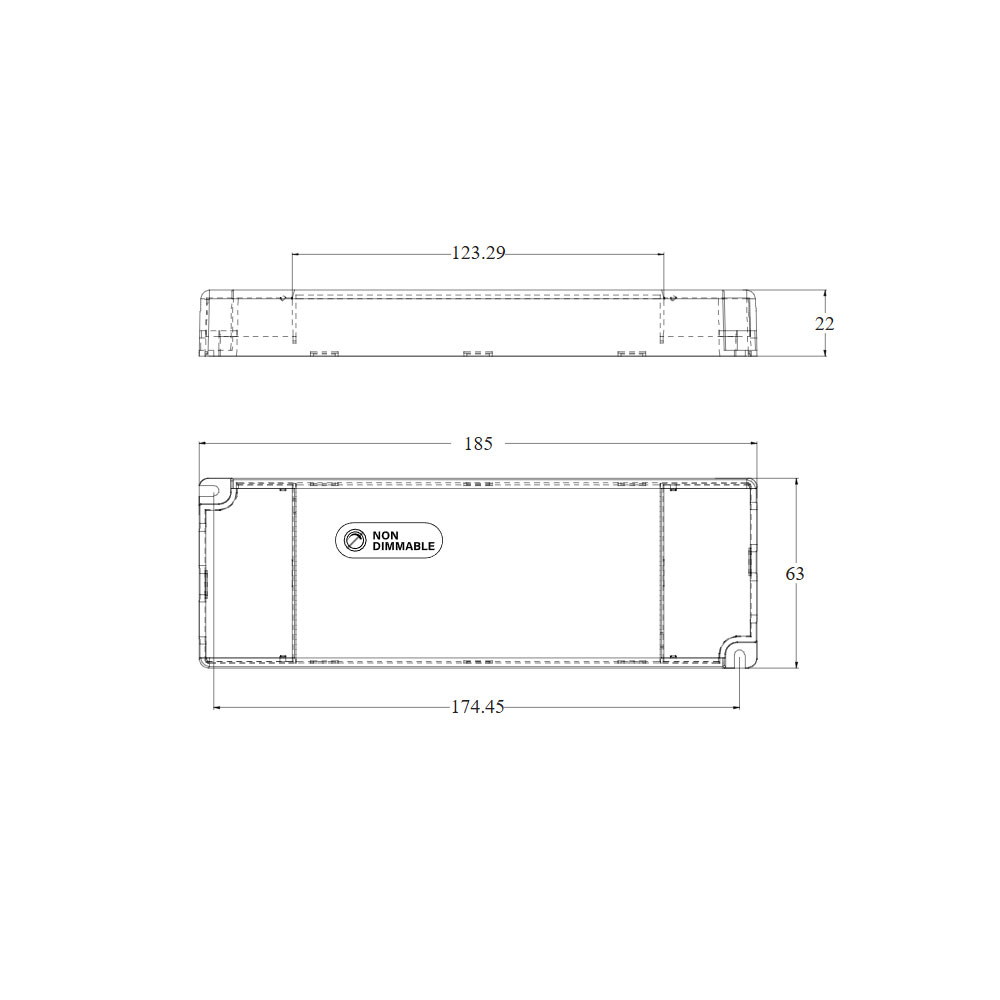

Dimensions
- 185mm x 63.5mm x 22mm
This high-efficiency LED driver includes built-in protection against short circuits, over-current, and over-voltage to ensure reliable performance for 24VDC lighting systems.
Specifications
- Voltage: 24VDC
- Current: 4.16A
- Power: 100W
- Ripple & Noise (max): <400mv
- Channel: 1
- Voltage Tolerance: ±5%
Input
- Input Voltage: 100-265v
- Frequency: 50/60Hz
- Power Factor: >0.9
- THD: <15%
- Standby Power: <1.5W
- Current: <1.2A
- Inrush Current (Full Output Load): 17.71A
- Efficiency Full Load 110VAC: 90%
- Efficiency Full Load 230VAC: 92%
- Start 230VAC (milliseconds): <500
- Rise Time 230VAC (milliseconds): <500
- Hold Time 230VAC (milliseconds): >20
- Pulse Duration (T50): 292uS
Output
- Output: 24VDC
- VA: 100W
- IP: IP20
- Dimming: Non-Dimmable
Dimensions
- 185mm x 63.5mm x 22mm
