Name: Weatherproof 12V DC LED Driver 200W IP67 - OTTER6
Brand: CLA
SKU: SKU326477
Price: 184.00 AUD
Availability: InStock

Usually leaves our warehouse within 1–2 business days

Weatherproof 12V DC LED Driver 200W IP67 - OTTER6

Code: SKU326477

Brand: CLA

See The Entire Otter Collection

AU $184.00 AU $230.00 (You save: $46.00 from RRP)

BUY NOW
PAY LATER

28 DAYS
RETURNS

Price Beat
Guarantee

A LED Driver is an electrical device, used to power a light-emitting diode (LED), that protects LEDs by stabilizing the quantity of incoming electrical voltage and current to make sure they don’t surpass the maximum voltage rating.

Complex current source circuits require a LED driver when driving high-power LEDs for illumination to achieve correct current regulation.

A LED driver responds to the changing needs of the LED, or LED circuit, by providing a constant quantity of power to the LED as its electrical properties change with temperature.

Without the proper driver, the LED may become too hot and unstable, therefore causing poor performance or failure.

Specifications
- 12V DC constant voltage LED driver
- Input voltage: 170-265V 50/60Hz
- Output voltage: 12V DC
- Short circuit, overload and thermal protection
- Built in Active PFC function
- Ambient temperature: -30 to 50°C
- Flex & plug included: 1.2m
- IP rating: IP67
- Warranty: 3 year replacement warranty

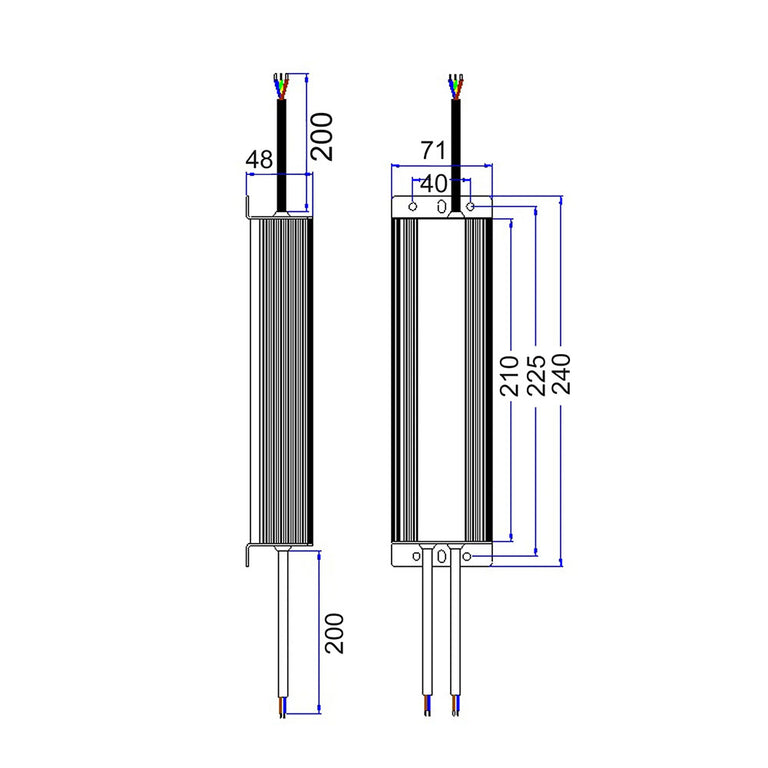

Dimensions
- Length: 240mm
- Width: 71mm
- Depth: 46mm

Click to view technical specification:

For OTTER3, OTTER4, OTTER5, OTTER6 & OTTER7
These drivers are manufactured with a split cable format for carrying increased current for easier connection of multiple loads.

Each driver can be used:
- At full load capacity by connecting all cables to one terminal block
- With any combination of split cables (as long as the minimum and maximum loads below are adhered to)
FULL load capacity CANNOT be connected to one cable
