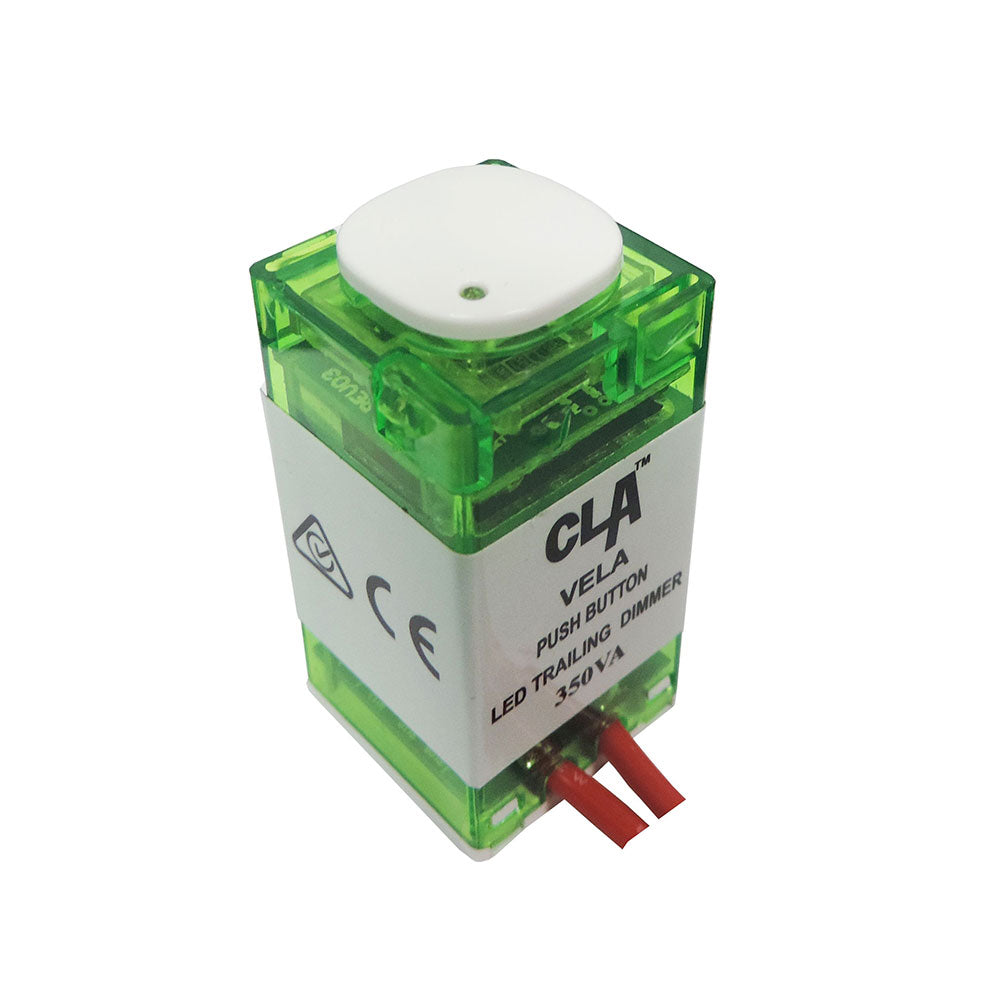

Name: Push Button LED Trailing Dimmer - Vela
Brand: CLA
SKU: SKU308510
Price: 55.00 AUD
Availability: InStock

Usually leaves our warehouse within 1–2 business days

Push Button LED Trailing Dimmer - Vela

Code: SKU308510

Brand: CLA

AU $55.00 AU $70.00 (You save: $15.00 from RRP)

BUY NOW
PAY LATER

28 DAYS
RETURNS

Price Beat
Guarantee

- Soft start
- Overload protection & short circuit protection
- Easy to mount in most Australian plates
- Suitable for dimming dimmable LED globes, incandescent globes, high voltage halogen globes, electronic transformers with low voltage halogen globes
- Long press dimming button to dim
- Short press dimming button to on/off
- Comes with 2 face caps round & square edged to suit most Australian plates
- IP rating: IP20
- 3 year replacement warranty

Programming
Minmum brightness setting
- Remove the top cap
- Long press programming button until LED flashes slowly
- Long press dimming button to set level
- Double press dimming button to exit programming mode

Maximum brightness settting
- Remove the top cap
- Long press programming button until LED flashes, short press programming button, until LED starts to flash fast
- Long press dimming button to set level
- Double press dimming button to exit program mode

Specifications
- Nominal Operating Voltage: 220-240V
- Nominal Operating Frequency: 50Hz
- Maximum Load: 350VA
- Minimum Load: 10VA
- Dimming Technique: Trailing Edge Phase Control

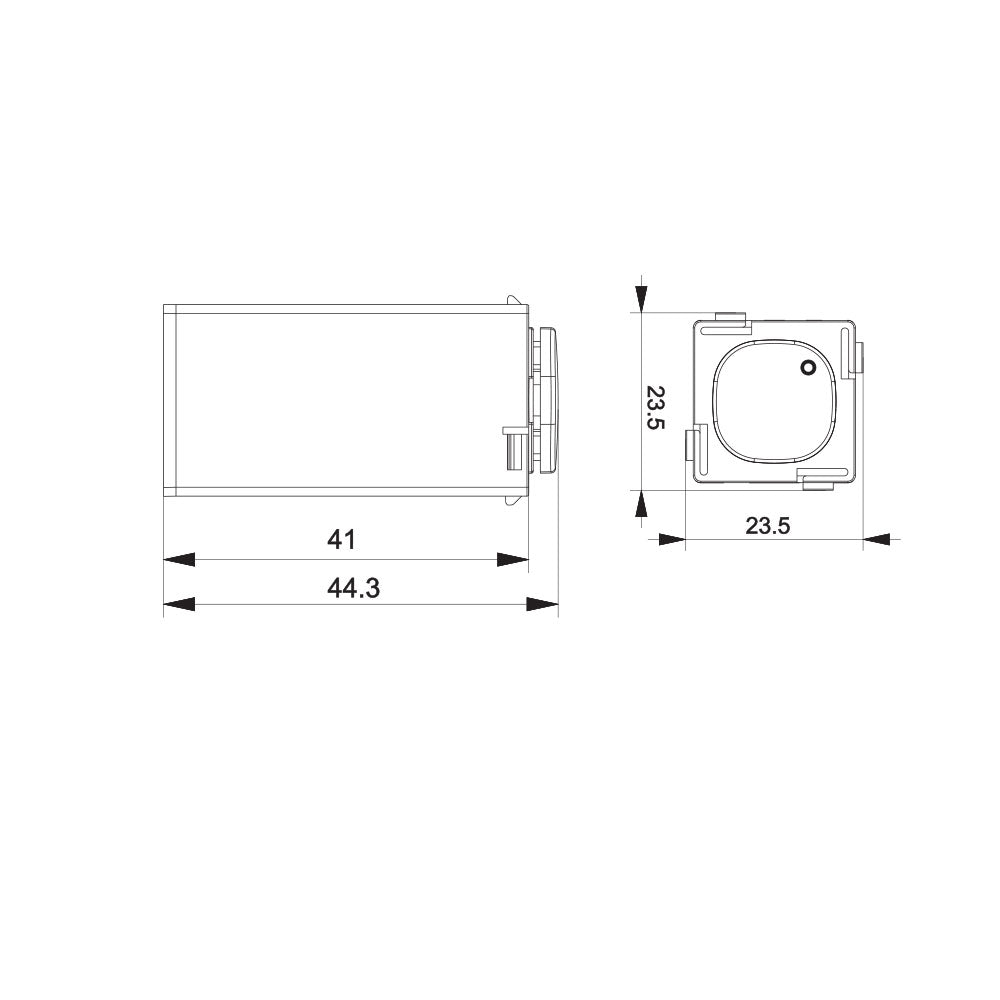

- Mounting Centres: 84mm Australian Pattern Plate
- Safety Compliance: AS/NZS 3100, AS/NZS 3133, IEC 60669-2-1
- EMC Compliance: AS/NZS CISPR15, IEC 60669-2-1 (26.1, 26.2),IEC 61000-3-2 (Excepting when used in conjunction with Electronic loads)

Click to view technical specification:
