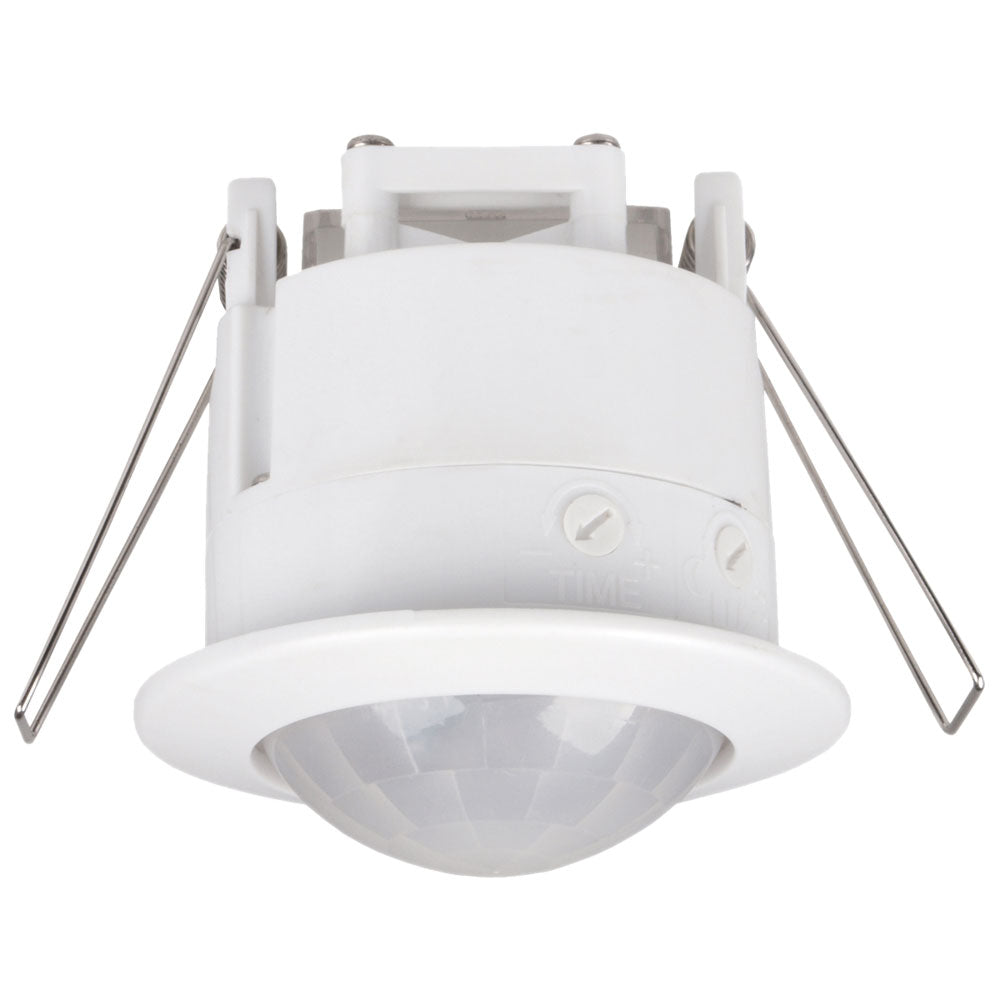

Infrared Recessed Sensor White - SMS804CR

Infrared sensor - recessed

Application
- Versatile IP20 recessed sensor designed for residential and commercial applications

Design Specifications
- Switched power loads 2000W incandescent, 500W Fluorescent, 300W LED, Inductive 80W
- Standby power <1W
- Detection distance Max. 9 m in diameter
- Detection angle 360° , Duration Time / 10sec / 4min adjustable
- Dawn to dusk adjustable, maximum height max.4.5m
- Manual override mode: When the lamp(s) is switched on, turn the lamp(s) off/on twice within 3 seconds, the sensor will go to an 8 hour override mode, during which the lamp(s) will stay on. The sensor will then return to normal detection mode During override mode, turn the lamp(s) on/off twice within 3 seconds or turn off the lamp(s) for over 10 seconds, the sensor will return to normal detection mode.

Specifications
- Operating voltage: 240V
- Switched power: 1000W incandescent, 300W Fluorescent, 300W LED
- Standby power: <1W

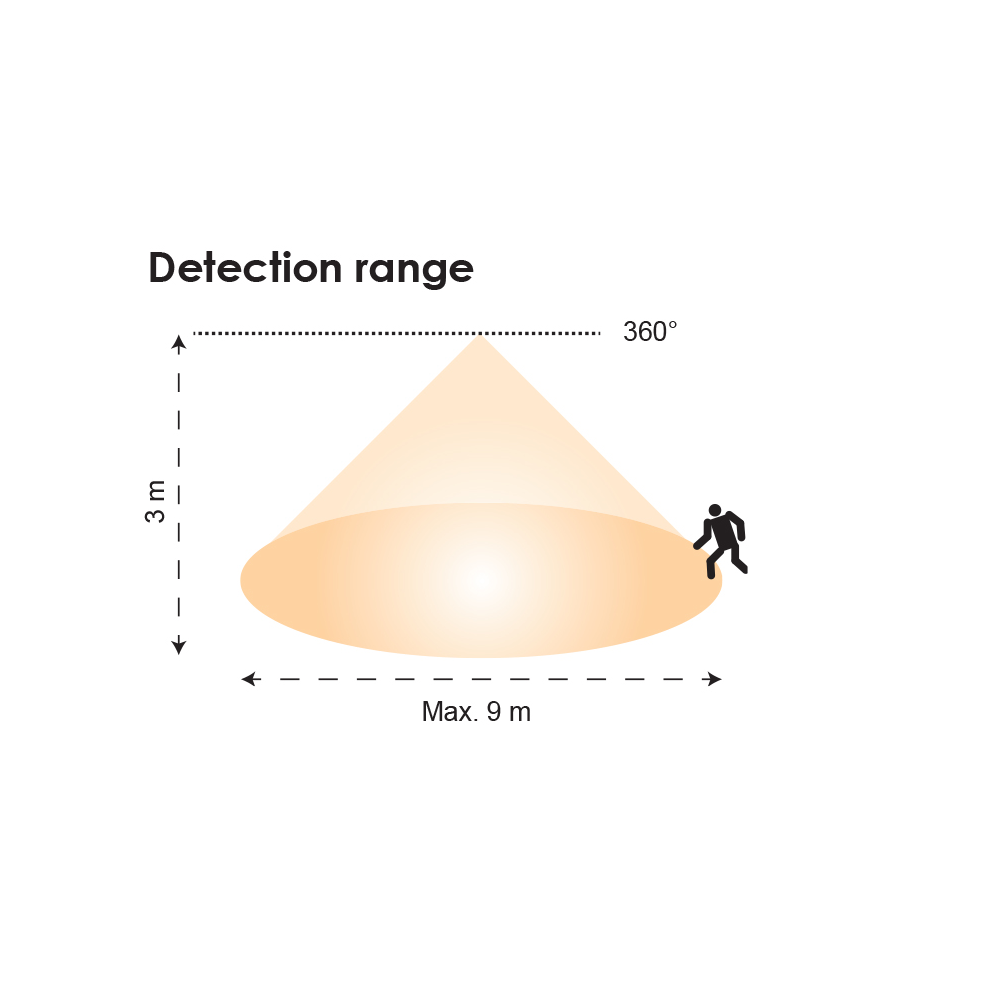

- Detection distance: Max. 9 m in diameter
- Detection angle: 360°
- Duration Time: 10 sec to 4 min adjustable
- Lux threshold: Dawn to dusk adjustable
- Sensor principle: Infrared sensor
- Material: PC
- Microwave power: <1mw
- Mounting height: 4.5 m
- Mounting method: Wall mounted
- Operating temperature: -10° ~ +40°C
- IP rating: IP20

MANUAL OVERRIDE MODE
- When the lamp(s) is switched on, turn the lamp(s) off/on twice within 3 seconds, the sensor will go to an 8 hour override mode, during which the
lamp(s) will stay on. The sensor will then return to normal detection mode

- During override mode, turn the lamp(s) on/off twice within 3 seconds or turn off the lamp(s) for over 10 seconds, the sensor will return to normal detection mode
