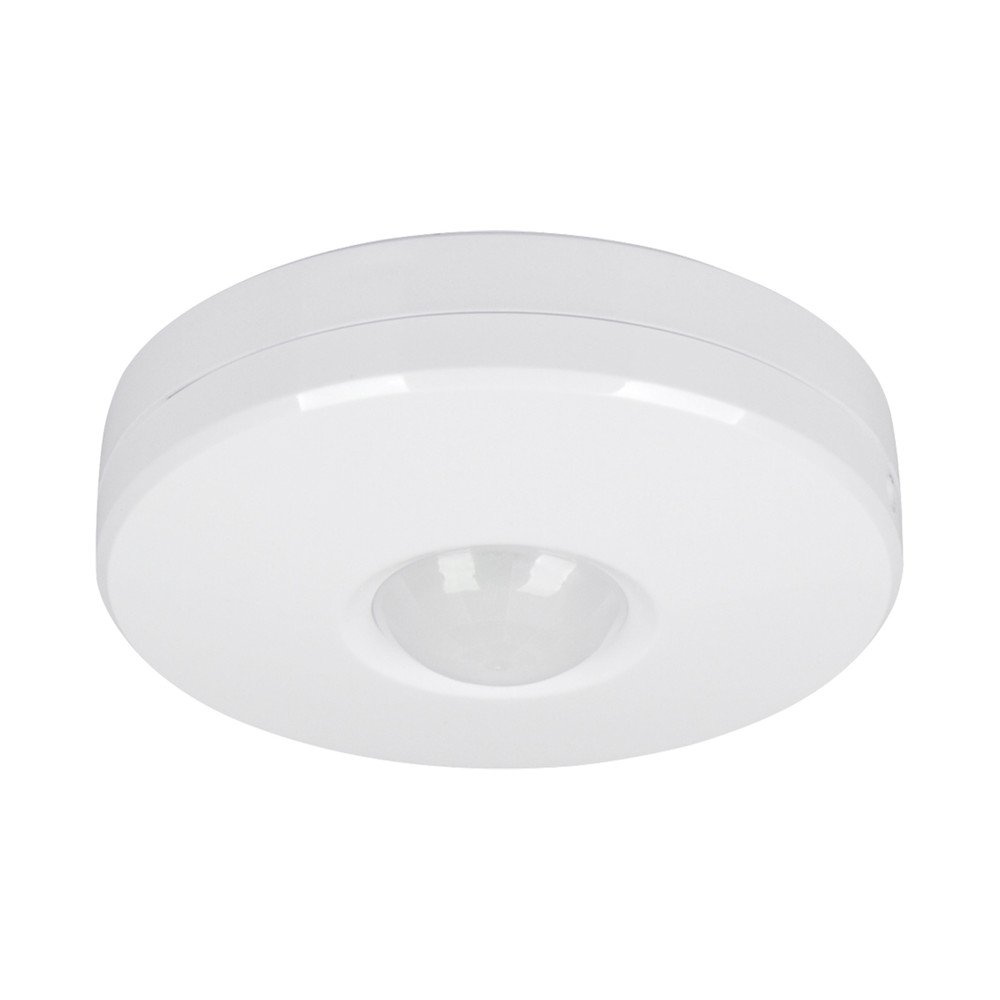

Infrared Sensor Surface Mount White - SMS805CS

Code: SKU265149
Sale price  CA $27.33 Regular price  CA $36.45 (You save: $9.12 from RRP)
GST EXEMPT
Samita

BUY NOW
PAY LATER

28 DAYS
RETURNS

Price Beat
Guarantee

Description
Infrared sensor - surface mount

Application
- IP20 surface mount sensor designed for residential and commercial spaces

Design Specifications
- Switched power 1600W incandescent, 500W, fluorescent, 200W LED, colour white
- Standby power <1W

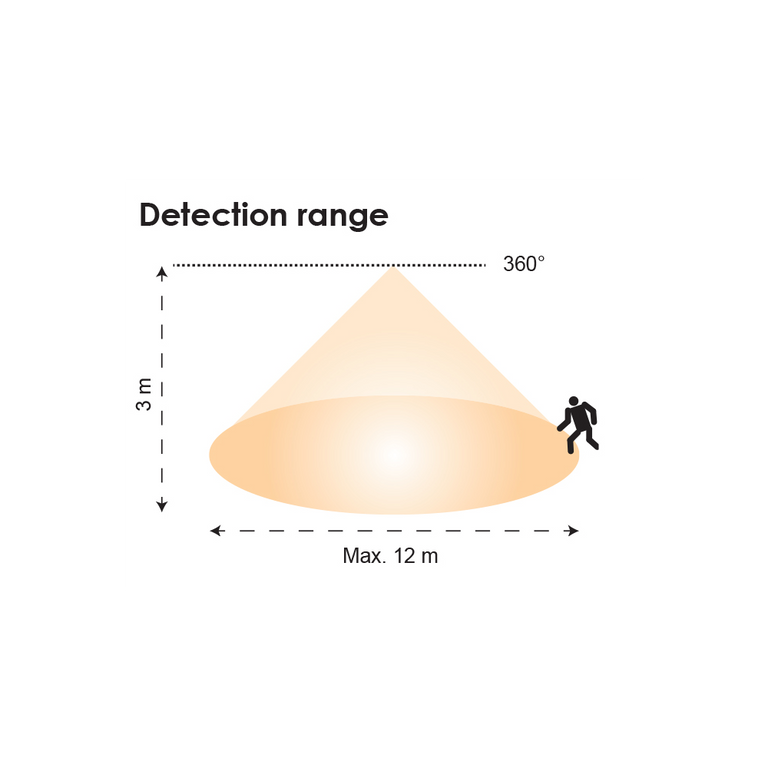

- Detection distance Max. 12 m in diameter
- Detection angle 360° , Duration Time / 10sec / 4min adjustable
- Dawn to dusk adjustable, mounting height max. 3m
- Manual override mode: When the lamp(s) is switched on, turn the lamp(s) off/on twice within 3 seconds, the sensor will go to an 8 hour override mode, during which the lamp(s) will stay on. The sensor will then return to normal detection mode During override mode, turn the lamp(s) on/off twice within 3 seconds or turn off the lamp(s) for over 10 seconds, the sensor will return to normal detection mode

Dimensions
- Diameter: 110mm
- Height: 76mm

Technical Specification
